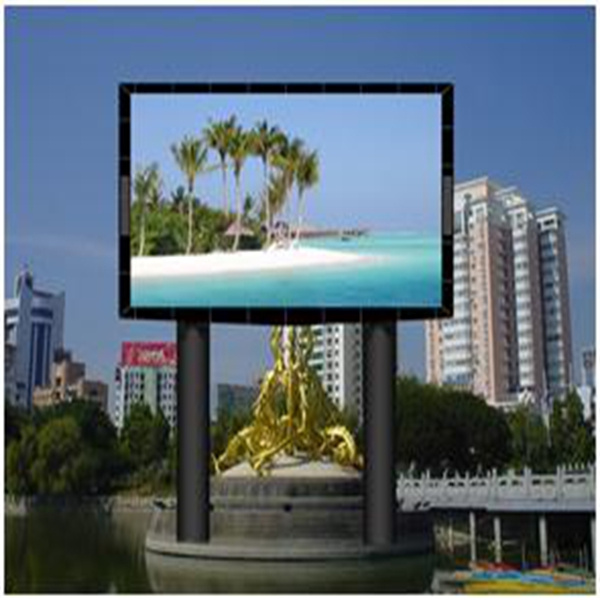

Led display sign
1. UL, CE&RoHS certificate
2. Vivid image
3. Uniform color
4. Life Span: 100, 000hrs
5. Warranty 5years
6. Consistent color
7. High brightness and clear Video
Features and Advantages
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously or offline does asynchronously
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via Lan and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
(10) Can be connected with PC and the website, and also can be controlled remotely via wireless controller
| The technology parameter of P12 outdoor |
| Number | Item | P12 |
| 1 | Pixel pitch | 12mm |
| 2 | Size of modual | 192mm X 192 mm |
| 3 | Resolution of modual | 16 X 16 |
| 4 | Density of pixel | 6944dots/m2 |
| 5 | Pixel configuration | 2R1G1B |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | 10-120m |
| 11 | Horizontal viewing angle | 120° |
| 12 | Maximum power consumption | ≤1100w/m 2 |
| 13 | Brightness | ≥8000cd /m 2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/4scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | ≥300Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP67(adjustable) |
| 22 | Working temperature | --20ºC-+80ºC |
| 23 | MTBF | >10000 hours |
| 24 | Life span | >100,000 hours |
| 25 | Defects rate. | ≤0.00001(Led display line standard<0.0001) |
| 26 | Computer operation system | Win XP/Vista/ Win 2000/WIN7ect. |
| 27 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC.ect |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
