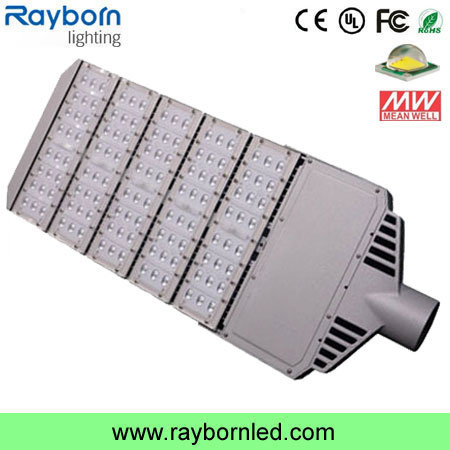

LED street light 150W industral lighting replace 400W Sodium Lamp CE. TUV. CUL Certification
LED street light 50W-300W
Item No.: RB-STC-150W
Input Voltage: AC 100~277V/ 50HZ-60HZ
LED Power: 150W
LED Chip: Cree
Driver: Meanwell HLG
Power Factor(PF): >0.9
LED Luminous Flux Warm White, Pure White. Cool White
LED Street light Viewing Angle: 140/80 degree
Color Temperature Warm White 3000K~3500K
Pure White 5500K~5700K, Cool White 6500K~6700K
Luminous Flux: 14200LM(6500K)
Color Rendering Index: Ra80
Working Temperature: 40~50
IP Grade: IP65
Working Life-span: 50000 H
Certificate CE & RoHS UL
150w LED Street Light Features:
1. Higher efficiency and energy-saving compared to conventional fluorescents with equal bright.
2. No RF interference, no buzzing noise, no UV radiation.
3. No fluorescent flickering.
4. No hazard of mercury or lead entering the environment.
5. Maintenance free, easy installation.
6. Solid- state, high shock/ vibration resistant
7. Adopting low- pressure constant current power supply, no glare,
8. Milky glass cover or PC cover with transmission rate at 92%.
LED Street Lights Fixtures Applications:
Apply to the main road, slip road, fast lane, residential road, Park Road, Industrial Park Road, highways, local roads, municipal roads, gas stations and car parks lighting places
|
150W LED Industrial Light Main Technical Parameters |
|
Item No.: |
RB-STC-150W |
|
Input Voltage: |
AC 100~277V |
|
Freqency Range: |
50Hz~60Hz |
|
Driver: |
Meanwell HLG |
|
Led Chip: |
CREE Xpe |
|
Power Factor: |
> 0.96 |
|
Power Efficiency: |
>90% |
|
LED Power |
150W |
|
LED QTY: |
96pcs |
|
LED Working Voltage: |
DC 30~36V |
|
System Consumption: |
152W |
|
LED Luminous Flux |
Warm White |
12100LM |
|
Pure White |
12350LM |
|
Cool White |
14380LM |
|
Viewing Angle: |
140/80 degree |
|
Center Illuminance |
Height 9M |
37.5LUX |
|
Height 12M |
21.1LUX |
|
Height 15M |
13.5LUX |
|
Illuminance Area |
Height 9M |
Dia.1748CM points visible |
|
Height 12M |
Dia.2331CM points visible |
|
Height 15M |
Dia.2914CM points visible |
|
Illuminance Uniformity: |
> 0.6 |
|
Color Temperature |
Warm White |
3000K~3500K |
|
Pure White |
5000K~5700K |
|
Cool White |
6000K~6500K |
|
Color Rendering Index |
Ra > 80 |
|
Light Distribution: |
LED points visible |
|
Light Design: |
LED+ |
|
LED Junction Temperature: |
≤115 |
|
Working Temperature: |
–30 ~55 |
|
IP Grade: |
IP65 |
|
Working Life-span: |
50000 H |
|
Power Line: |
1.0 m m three line |
|
Connect Wire |
Brown |
L |
|
Blue |
N |
|
Yellow / Green |
G |
|
Certificate |
CE/UL/ROHS |
|
Producs Size: |
679*292*98mm |
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
