15R 330W Beam + Spot + Wash + Linear zoom
Lamp: OSRAM SIRIUS HRI 15R 330W/YODN 330W
Double prism which make wonderful lighting effects
super silent 3-phase motor, Pan/Tilt runs faster and smooth
Input volt: 100V~240V/50~60Hz
Electronic Ballast
CCT: 8000K
lifetime: 2000H
Luminous flux : 20m/186700Lux 40m/48175Lux 60m/20855Lux
Colour: 14 colour+blank,Double Half colour and colour can move bidirectionally
Gobo: 1 rotational gobo wheel with 11 rotational changeable gobos,rotating uniderectionally and shaking gobo wheel
Stactic gobo wheel:17 fixed gobos,gobo wheel shaking and rotating bi-directionally.
Prism: double prisms rotating bidirectionally
Focus: Linear focus
Dimmer: 0-100% linear dimmer
Zoom: Linear zooming
Beam angle: 0-3°
Spot angle: 3-20°
Wash angle: 20-60°
Strobe: Double strobe,0.5-14times/s
Control: DMX512, master slave, sound active,Auto
Channel: 18/22 DMX Channels
Motor: 12pcs silent motors + 2pcs 3-phase motors ,16Bit driving
Original Sunon fans,noise below 38FB
Optical Lens: High precision glued optical lens combination, 6-layers film coated.
With Photoelectric reset system,auto reset for mis-operation
Protection: Over temperature protection, Over volt protection and Over current protection
Touch screen display+Press button,English/Chinese,
Diplsay board intelligent flip function.
Pan: 540° Electric correction
Tilt: 239°,Electric correction
Pan scaning speed: 2.6s/540°
Tilt scaning speed: 1.24s/240°
Accumulated working time of lamp showed on screen
Once working time of lamp showed on screen
Packing:
Net.W:20.5KGS G.W (Paper CTN): 25kgs
G.W(Flight case/1pc):39kgs
G.W(Flight case/2pcs)70kgs
Many different power plugs for different countries and resigonsProduct
Strong Beam

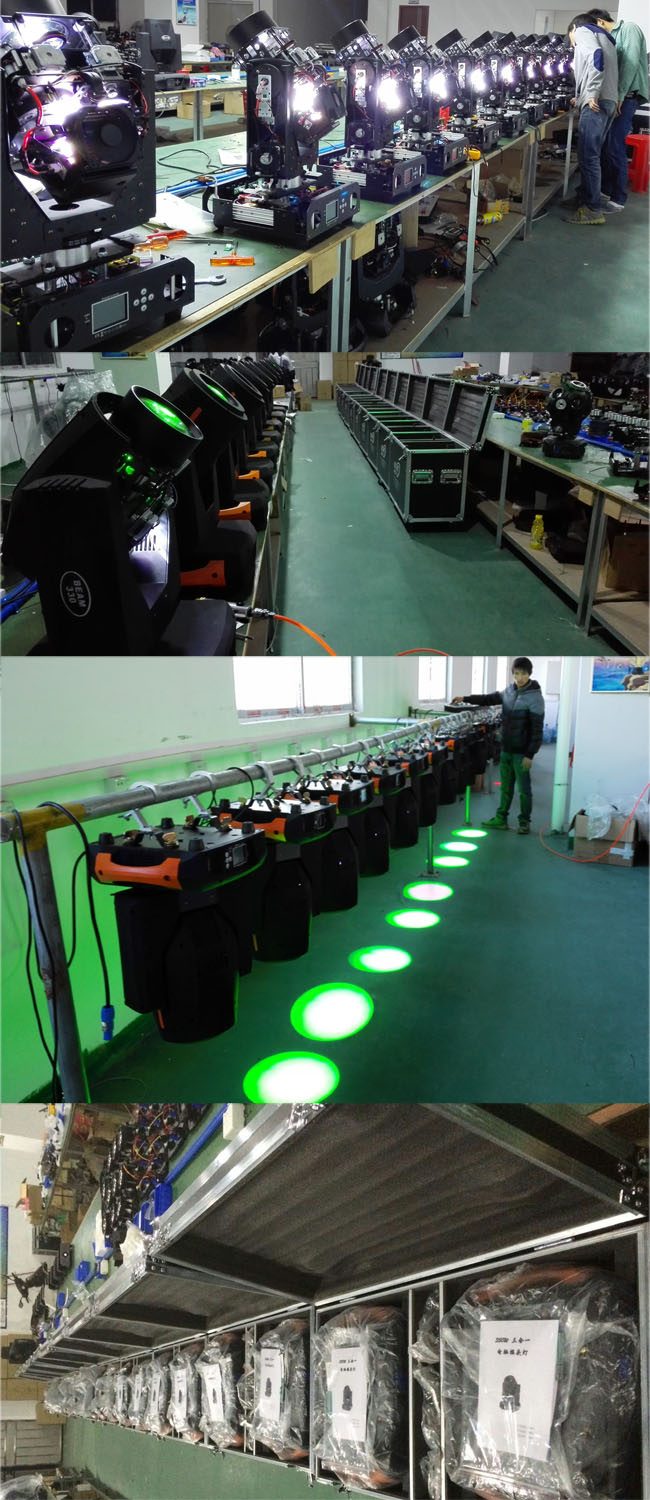

Production:
DMX Channel| Standard | EXP
Model | Channel | Value | Function |
| CH1 | CH1 | Colour | 0 | WHITE |
| 8 | RED |
| 16 | ORANGE |
| 24 | AQUAMARINE |
| 32 | GREEN |
| 40 | LIGHT GREEN |
| 48 | LAVENDER |
| 56 | PINK |
| 64 | WHITE + RED |
| 72 | RED + ORANGE |
| 80 | ORANGE + AQUAMARINE |
| 88 | AQUAMARINE + GREEN |
| 96 | GREEN + LIGHT GREEN |
| 104 | LIGHT GREEN + LAVENDER |
| 112 | LAVENDER + PINK |
| 120 | PINK + YELLOW |
| 128 | FAST ROTATION |
| 191 | SLOW ROTATION |
| 255 | FAST ROTATION |
| CH2 | CH2 | Strobe | 0-3 | CLOSED |
| 4-102 | SLOW STROBE |
| 103 | FAST STROBE |
| 104-107 | OPEN |
| 108 | SLOW PULSATION |
| 109-207 | FAST PULSATION |
| 208-212 | OPEN |
| 213-225 | RANDOM SLOW STROBE |
| 226-238 | RANDOM MEDIUM STROBE |
| 239-251 | RANDOM FAST STROBE |
| 252-255 | OPEN |
| CH3 | CH3 | Dimmer | 0-255 | 0-100% |
| CH4 | CH4 | Static gobo | 0 | WHITE |
| 5 | GOBO 1 |
| 10 | GOBO 2 |
| 15 | GOBO 3 |
| 20 | GOBO 4 |
| 25 | GOBO 5 |
| 30 | GOBO 6 |
| 35 | GOBO 7 |
| 40 | FAST ROTATION |
| 129 | SLOW ROTATION |
| 100-134 | STOP |
| 135 | SLOW ROTATION |
| 220 | FAST ROTATION |
| 221 | GOBO 1 SHAKE, SLOW SPEED |
| 225 | GOBO 1 SHAKE, FAST SPEED |
| 226 | GOBO 2 SHAKE, SLOW SPEED |
| 230 | GOBO 2 SHAKE, FAST SPEED |
| 251 | GOBO 9 SHAKE, SLOW SPEED |
| 255 | GOBO 9 SHAKE, FAST SPEED |
| CH5 | CH5 | Rotating gobo | 0-127 | POSITION |
| 128-189 | FAST ROTATION |
| 190 | SLOW ROTATION |
| 191-192 | STOP |
| 193-254 | SLOW ROTATION |
| 255 | FAST ROTATION |
| CH6 | CH6 | Rotating-Gobo | 0-255 | From slow to fast |
| Rotate |
| CH7 | CH7 | Frost | 0-255 | Frost |
| CH8 | CH8 | Prism 1 | 128-255 | PRISM INSERTED |
| 0-127 | PRISM EXCLUDED |
| CH9 | CH9 | Prism 1 Rotation | 0-127 | POSITION |
| 128 | FAST ROTATION |
| 190 | SLOW ROTATION |
| 191-192 | STOP |
| 193 | SLOW ROTATION |
| 255 | FAST ROTATION |
| CH10 | CH10 | Prism 2 | 128-255 | PRISM INSERTED |
| 0-127 | PRISM EXCLUDED |
| CH11 | CH11 | Prism 2 Rotation | 0-127 | POSITION |
| 128 | FAST ROTATION |
| 190 | SLOW ROTATION |
| 191-192 | STOP |
| 193 | SLOW ROTATION |
| 255 | FAST ROTATION |
| CH12 | CH12 | zoom | 0-255 | linear zoom |
| CH13 | CH13 | Focus | 0-255 | 0-100% linear focus |
| CH14 | CH14 | Pan | 0-255 | Pan |
| CH15 | CH15 | Pan fine | 0-255 | Pan fine |
| CH16 | CH16 | Tilt | 0-255 | Tilt |
| CH17 | CH17 | Tilt fine | 0-255 | Tilt fine |
| CH18 | CH18 | Lamp/reset | 0-129 | Non |
| 130-139 | LAMP ON |
| 140-149 | PAN/TILT RESET |
| 160-169 | EFFECTS RESET |
| 200-209 | COMPLETE RESET |
| 230-255 | LAMP OFF |
| CH19 | pan/tile speed | 0-255 | pan/tile speed |
| CH20 | Colour wheel | 0-255 | Colour wheel speed |
| CH21 | Funtion | 0-255 | Dimmer-Frost-Prism speed |
| CH22 | Gobo wheel | 0-255 | Gobo wheel speed |
