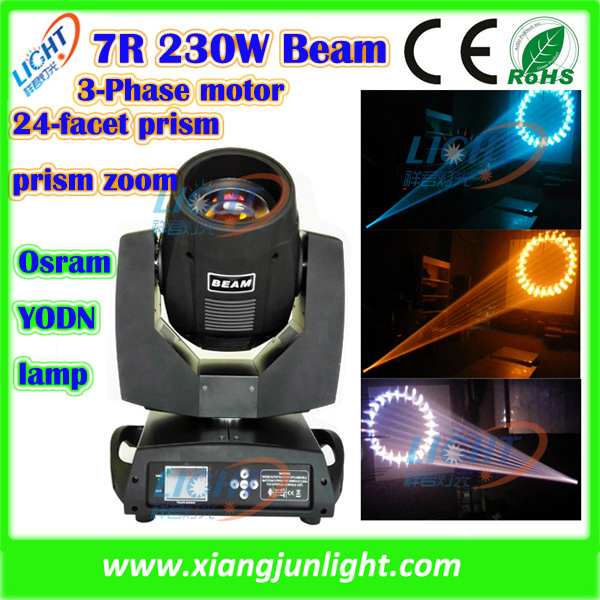

230W Sharpy Beam Moving Head Light led effect lights
Disco light and DJ light 7r Sharpy Beam Moving Head Light with Spot and Wash Effect for disco, dj, night club, ktv
Original OSRAM SIRIUS HRI 7R 230W
Features:
Prism: 24-facet prism (prism zooming)
3-phase motor,fast and very quiet and stable
Original Sunon fans,noise below 38FB
With Photoelectric reset system,auto reset for mis-operation
Double track design,no stuck for color wheel
Bent design for colour wheel which decrease the lamp temperature and prolong lifetime
With Voltage stabilizer inside, can work with unstable input volt.
Lens: High quality optical lens, double film coated.
Light source:
Lamp: OSRAM SIRIUS HRI 280 7R 230W
Electronic ballast
Input volt: 110-240V/50/60Hz
Luminou Flux: 120,000LM at 10M distance,60000Lumen at 20 meters
Colour temperature: 8000K
Lighting Effect:
Gobo wheel: 17 gobos + blank (Gobos can be customized)
Colour wheel: 14 + blank
Channel: 16/20CH
Focus: Linear focus
Pan scan:540°(8/16bit) electric correction
Tilt scan:270°(8/16bit) electric correction
Control mode:DMX512, Master-slave, Sound active and Auto
0-100% mechanical dimming,mechanical strobe and speedable strobe,
support Strobe macro function.
Beam Angle:0~3°
Control programming:
Channel: 16/20CH
Control mode:DMX512, Master-slave, Sound active and Auto
Packing:
Net.W:16.5KG
G.W (Paper CTN): 17.5kgs
G.W(Flight case/1pc):35kgs
G.W(Flight case/2pcs)63kgs
Paper CTN Size:450*410*520MM
Flight case/1pc:460*380*71MM
Flight case/2pcs:680*460*780MM
Accessaries: quick lock 2pcs
clamp/hook: 2pcs
safety rope: 1pc
signal wire: 1pc
power wire: 1pc
user manual:1pc
Many different power plugs for different countries and resigons
Lighting Effect:
Production:
Packing:
DMX CHANNEL LIST |
| Standard Mode | Expand Mode | Channel | DMX value | Description |
| 1 |
| Color | 0-255 |
|
| 2 |
| Strobe | 0-255 |
|
| 3 |
| Dimmer | 0-255 | Dark to bright |
| 4 |
| Stactic Gobo | 0-255 |
|
| 5 |
| Prism | 0-255 |
|
| 6 |
| Prism rotation | 0-255 |
|
| 7 |
| Effect | 0-255 | Effect movement |
| 8 |
| Frost | 0-255 | frost |
| 9 |
| Focus | 0-255 | focus |
| 10 |
| Pan | 0-255 |
|
| 11 |
| Pan fine | 0-255 |
|
| 12 |
| Tilt | 0-255 |
|
| 13 |
| Tilt fine | 0-255 |
|
| 14 |
| Function | 0-255 | PAN/TILT FUNCTION.(FAST) |
| 15 |
| RESET | 0-255 |
|
| 16 |
| Lamp | 0-255 | No function |
| 17 Pan/Tilt speed |
| 0-255 | Pan - Tilt - (Pan fine - Tilt fine) |
| 18 Colour time |
| 0-255 | Colour wheel |
| 19 Beam time |
| 0-255 | Dimmer - Frost - Prism |
| 20. Gobo time |
| 0-255 | Static Gobo |
