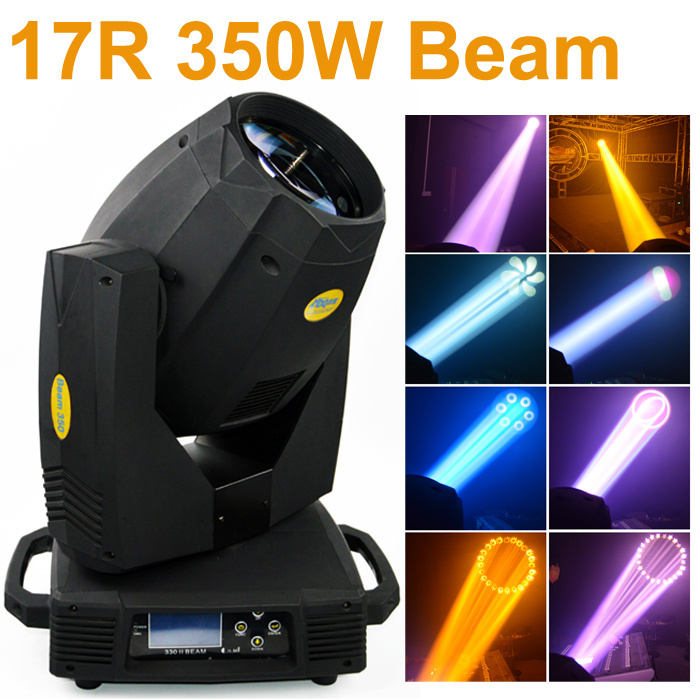

Stage Light 17r Beam Moving Head Light

Stage Light 17r Beam Moving Head Light
Price: US $ 615-650/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
17R 350W Moving head Beam Moving head for concert, Church and big events

Original OSRAM SIRIUS HRI  350W

Features:
With Photoelectric reset system,auto reset for mis-operation
Motor: 12pcs silent motors + 2pcs 3phase motors ,
             16Bit drivingOriginal Sunon fans,noise below 38FB
Double track design,no stuck for color wheel
Bent design for colour wheel which decrease the lamp temperature and prolong lifetime
With Voltage stabilizer inside, can work with unstable input volt.
Lens: High quality optical lens, double film coated.
Protection: Over temperature protection, Over volt protection and Over current protection

Light source:
Lamp: Lamp: YODN350W New integral lamp Average life time is 1500H
Power consumption: 680W
Color temperature: 8000K
Input volt: 100V~240V/50~60Hz
Electronic Ballast
Luminous flux :  20m/186700Lux    40m/48175Lux    60m/20855Lux
lifetime: 1500H

Lighting Effect:
Beam angle:  parallel beam angle, 0°-3° adjustable
Linear dimming:  0-100% mechanical linear dimming
Fast shutter:  pulse strobe, synchronous and asynchronous strobe, capable of strobe switching1-20 times/sec
Fixed color:  1 fixed color wheel with 14 filters +white light, halftone effect,
linear color conversion, bi-directionally rotatable at variable speeds and rainbow effect
Dynamic gobo: 1 rotating gobo wheel with 12 interchangeable gobos +white, indexable and bi-directionally rotatable at variable speeds, gobo shaking at variable speeds, and 16-bit accurate fine tuning
Static gobo: 1 fixed gobo wheel with 16 interchangeable gobos +white, and bi-directionally rotatable at variable speeds, gobo shaking at variable speeds
Prism: 2 independent rotating prisms, 24 sharp and clear beam effect generated by double-prism combination
Focus: high precision optical glass lens, electronic high-definition linear control
Atomization: 1 independent atomizing effect, soft natural light spots
Pan scanning angle 540° (16-bit precision scanning)
Tilt scanning angle 270°(16bit precision scanning),
3-phase motor provides fast smooth scanning and eliminates drive noise

Control programming:
Display interface: wide screen LCD in both Chinese and English
Power setting: built-in continuous rechargeable battery, allowing setting functional data via LCD interface without power connection
Sleep mode: uses the most advanced technology to remotely activate sleep mode. When the lamp is disconnected from signal, the sleep mode is enabled automatically to make it  more stable and safer. Sleep time can be customized
Communication design: DMX wired or wireless signal transmission, RDM bi-directional control technology, can be upgraded by DMX remote software.
Intelligent heat sinking: adopts forced air cooling and intelligent temperature monitoring to cool fixture parts, automatically adjusting the cooling system components to efficiently control the temperature according to the temperature values in different locations of the fixture.
Control channel: 3 optional control channels 20/18/15

Packing:
Net Weight: 24kgs
Size: 450 X 320 X 590MM
Gross weight: Carton packing: 26kgs
CTN SIZE: 465 X 330 X 600MM
Gross weight: Flycase/pc  44kgs
Flycase size:  480 X 350 X 720MM
Gross wegiht: flycase/2pcs 78kgs
Flycase size:  800 X 350 X 720MM

Accessaries:  5M copper coldproof single cable    1pc
                                    3M power cable with bakelite plug    1pc
                                    Safty rope                           1pc
                                    Quick lock                           2pcs
                                    light hook                           2pcs
                                   user manual                         1pc
                                    10A fuse                             2pcs
                                  screw for housing                    2pcs
                                   U flash disk with software            1pc

Many different power plugs for different countries and resigons

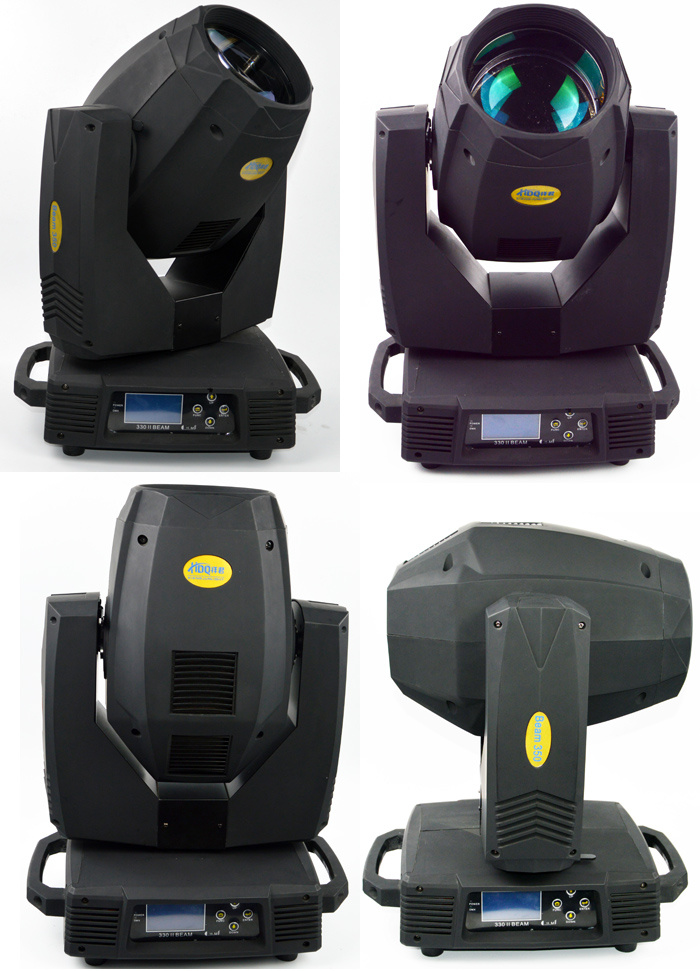

Product Pictures:

Lighting Effects:



FAQ:

Q1,Are you a factory or trading company?
Yes. We are factory with more than 8 years in lighting industry and we are BV varified manufactuer.
Q2,How can I trust you?
A,Please kindly check our business license and certificate issued by Bureau Veritas from home page.
Q3,How can I get a good quotation?
Your quantity,your country,your requirement,quantity,shipping way,your package or any other requirement
will help to give you correct quotation.
Q4,How about the delivery date?
A,For sample,we always have products in stock,we can send it once get your payment.For small order,it takes 5-15 working days.For container,it takes 3-4 weeks depend on what's products.
Q5,How about the shipping way?
A,By door-door express(such as DHL,UPS,TNT,EMS),by air freight(airport to airport),by sea(port-port).
Q6,How about payment terms?
A,We recommend T/T,Western Union
Paypal is available but takes extra handling charges.
Q7,How about the MOQ?
A,Depends on the products,sample is available.
Q8,How could you promise the quality?
A,First,we have inspections both for material and complete products,during the assembly,our QC team will take care of the  procedure,
Second,we have 1 year warranty for all our products,if you have any problem,please help to provide picture or video,we will provide free parts for any quality problem.We provide life-long after-sale service for our clients.
Q9,Where is your factory located? How can I visit there?
A,Our factory is located in Guangzhou City, Guangdong Province, China, about 20 minutes away from Baiyun Airport,welcome to visit!
Q10: Dose the unit with any certificate here?
A: yeah, our product all ready passed CE, ROHS, TUV, CCC,  etc.
Q11: What's the warranty ?
A: Our warranty is one year , we will provide free spare part to replace if any of them not working in one year .

Prod Model: XJ-350B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lamp: Yodn 350W
Colour Temperature: 8000k
Lumen: 20m/186700lux 40m/48175lux 60m/20855lux
Beam Angle: 0-3 Degree Adjustable
Linear Dimming: 0-100%
Size: 450 X 320 X 590mm
Net Weight: 24kgs
Warranty: 1 Year
Application: Stage,Disco, DJ, Night Club, Bar, Studio, Concert
Light Source: Gas Discharge Bulb
Material: Aluminum Alloy
Emitting Color: Changeable
Strobe: Adjustable Speed Strobe
IP Rating: IP20
Certification: RoHS
Control Channel: CH20CH/18/CH15
Control Mode: DMX512, Master/Slave, Sound and Auto
Voltage: AC90-240V
