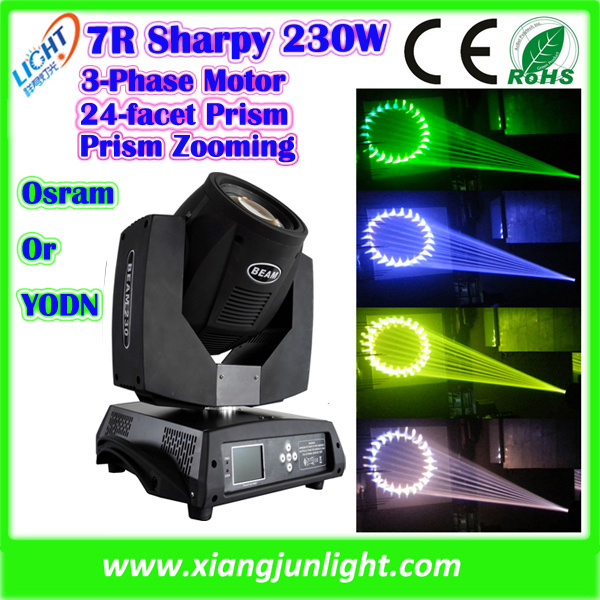

Original Osram lamp or Yodn lamp
Send clamp, scurity robe and quick lock for free
Clay paky profile
Sunon fans, long lifetime and very low noise
Warranty: 1 year, send spare part replacement for free
Lens: High quality optical lens, 6 layers of film coated.
Prism: 8/16/24 facet circular prism for your option
Double track design,no stuck for color wheel
With Photoelectric reset system,auto reset for mis-operation
Bent design for colour wheel which decrease the lamp temperature and prolong lifetime
With Voltage stabilizer inside, can work with unstable input volt.
Light source:
Lamp: OSRAM SIRIUS HRI 230W
Electronic ballast
Input volt: 110-240V/50/60Hz
Luminou Flux: 120,000LM at 10M distance,60000Lumen at 20 meters
Colour temperature: 8000K
Lighting Effect:
Gobo wheel: 17 gobos + blank (Gobos can be customized)
Colour wheel: 14 + blank
Prism: 16-facet prism
Dimmer: 0-100%
Foucs: Linear focus
Pan scan:540°(8/16bit) electric correction
Tilt scan:270°(8/16bit) electric correction
0-100% mechanical dimming,mechanical strobe and speedable strobe,
support Strobe macro function.
Beam Angle:0~3°
Channel: 16/20CH
Control mode:DMX512, Master-slave, Sound active and Auto
Net.W:16.5KG
G.W (Paper CTN): 17.5kgs
G.W(Flight case/1pc):35kgs
G.W(Flight case/2pcs)63kgs
Paper CTN Size:450*410*520MM
Flight case/1pc:460*380*71MM
Flight case/2pcs:680*460*780MM
Accessaries: quick lock 2pcs
clamp/hook: 2pcs
safety rope: 1pc
signal wire: 1pc
power wire: 1pc
user manual:1pc
Many different power plugs for different countries and resigons
Standard | Expand | NAME | VALUE | FUNCTION |
CH NO. | CH NO. |
CH1 | CH1 | COLOR | 0~4 | WHITE |
5~9 | WHITE+COLOR1 |
10~14 | COLOR1 |
15~19 | COLOR1 + COLOR2 |
20~24 | COLOR2 |
25~29 | COLOR2 + COLOR3 |
30~34 | COLOR3 |
35~39 | COLOR3 + COLOR4 |
40~44 | COLOR4 |
45~49 | COLOR4 + COLOR5 |
50~54 | COLOR5 |
55~59 | COLOR5 + COLOR6 |
60~64 | COLOR6 |
65~69 | COLOR6 + COLOR7 |
70~74 | COLOR7 |
75~79 | COLOR7 + COLOR8 |
80~84 | COLOR8 |
85~89 | COLOR8 + COLOR9 |
90~94 | COLOR9 |
95~99 | COLOR9 + COLOR10 |
100~104 | COLOR10 |
105~109 | COLOR10 + COLOR11 |
110~114 | COLOR11 |
115~119 | COLOR11 + COLOR12 |
120~124 | COLOR12 |
125~129 | COLOR12 + COLOR13 |
130~134 | COLOR13 |
135~139 | COLOR13 + COLOR14 |
140~144 | COLOR14 |
145~149 | COLOR14 + WHITE |
150~199 | Rotate forward(Fast -- slow) |
200~255 | Rotate reverse(Slow -- fast) |
CH2 | CH2 | STROBE | 0~3 | Dark |
4~103 | Slow strobe to fast strobe |
104~107 | White |
108~207 | Slow strobe to fast strobe(mode 2) |
208~212 | white |
213~225 | Free strobe ,slow |
226~238 | Free strobe ,middle |
239~251 | Free strobe ,fast |
252~255 | White |
CH3 | CH3 | DIMMING | 0~255 | Dark à bright |
CH4 | CH4 | GOBO | 0~4 | WHITE |
5~9 | Gobo1 |
10~14 | Gobo2 |
15~19 | Gobo3 |
20~24 | Gobo4 |
25~29 | Gobo5 |
30~34 | Gobo6 |
35~39 | Gobo7 |
40~44 | Gobo8 |
45~49 | Gobo9 |
50~54 | Gobo10 |
55~59 | Gobo11 |
60~64 | Gobo12 |
65~69 | Gobo13 |
70~74 | Gobo14 |
75~79 | Gobo15 |
80~84 | Gobo16 |
85~89 | Gobo17 |
90~129 | Rotate forward(Fast -- slow) |
130~134 | stop (white) |
135~169 | Rotate reverse(Slow -- fast) |
170~174 | Gobo1,shaking slow to fast |
175~179 | Gobo2,shaking slow to fast |
180~184 | Gobo3,shaking slow to fast |
185~189 | Gobo4,shaking slow to fast |
190~194 | Gobo5,shaking slow to fast |
195~199 | Gobo6,shaking slow to fast |
200~204 | Gobo7,shaking slow to fast |
205~209 | Gobo8,shaking slow to fast |
210~214 | Gobo9,shaking slow to fast |
215~219 | Gobo10,shaking slow to fast |
220~224 | Gobo11,shaking slow to fast |
225~229 | Gobo12,shaking slow to fast |
230~234 | Gobo13,shaking slow to fast |
235~239 | Gobo14,shaking slow to fast |
240~244 | Gobo15,shaking slow to fast |
245~249 | Gobo16,shaking slow to fast |
250~255 | Gobo17,shaking slow to fast |
CH5 | CH5 | Prism | 0-127 | No prism |
128-255 | Prism |
CH6 | CH6 | PRISM.Rotation | 0~127 | Angle 0~400 degree |
128~191 | Rotate forward(Fast -- slow) |
192~255 | Rotate reverse(Slow -- fast) |
CH7 | CH7 | Effect(blank) | 0-255 | Non |
CH8 | CH8 | Frost | | |
CH9 | CH9 | Focus | 0-255 | |
CH10 | CH10 | Pan | 0-255 | |
CH11 | CH11 | Pan fine | 0-255 | |
CH12 | CH12 | Tilt | 0-255 | |
CH13 | CH13 | Tilt fine | 0-255 | |
CH14 | CH14 | P/T SPEED | 0~255 | Fast to slow |
CH15 | CH15 | RESET | 0~127 | none |
128~200 | Reset light (stay over 3 second) |
201~255 | none |
CH16 | CH16 | LAMP | 0~9 | none |
10~100 | Turn off lamp (stay over 3 second) |
101~255 | Turn on lamp (stay over 3 second) |
| CH17 | GOBO SPEED | 0~255 | |
CH18 | COLOR SPEED | 0~255 | |
CH19 | FOCUS SPEED | 0~255 | |
CH20 | RUN MODE | 000-049 | DMX MODE |
050-099 | PAN AUTO |
100-149 | TILE AUTO |
150-199 | AUTO MODE |
200-255 | SOUND MODE |
