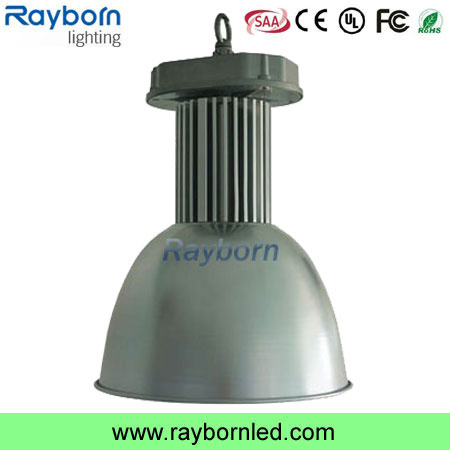

2014 Hot Selling Warehouse100W LED High Bay Light industrial factory style lighting
Product Specifications:
Item No.: RB-HB-515-100W
Input Voltage: AC 100~240V 50-60HZ
Power Factor: >0.98; Power Efficiency: >0.90
LED Luminous Efficiency 100-110lm/W
Lamp Rated Total Luminous Flux: 9000LM
LED High Bay Light Power Consumption: 100W
LED Chip: Bridgelux/CREE
Lamp Beam Angle: 120 degrees
Color Index: Ra≥ 78
Color Temperature: 2700-7000K
Operating temperature: -40º C~50º C
Protection Class: IP44
Lumen: 9000LM(6500K)
Useful Life: ≥ 50000 hours
Weight: N. W. 7.0KG
Lamp Body Material: Aluminum 6063
Color of Housing: Black or Silver
Led High bay light Features:
· Integrated USA Bridgelux LED system for optimum lifetime performance
· Ideal for Box Stores, Supermarkets, Factories, Warehouses.
· Special radiator design for better heat dissipation
· Reduced energy consumption and operating costs by up to 80%.
· Maintenance free operation - lasts up to 10 times longer than conventional lighting
· Solid state design and circuitry
· Great for shock and high vibration environments
· 50-80% reduced energy usage. Save money on your utility bill
· No humming or flickering.
· Cool beam - Does not produce Ultra Violet (UV) light or IR, reduces air conditioning loads.
· Unique design with anodized silver housing for cooler operation and extended lamp life.
· Environmentally friendly fully recyclable, no mercury or other hazardous materials.
Applications:
LED High Bay Lights widely used for Indoor and outdoor places:
Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
100W LED Industrial Light Main Technical Parameters |
Item No.: |
RB-HB-515-100W |
Input Voltage: |
AC 100~240V |
Freqency Range: |
50Hz~60Hz |
Led Chip: |
Bridgelux 45 mil |
Power Factor: |
>0.96 |
Power Efficiency: |
>90% |
LED Power |
100W |
LED QTY: |
1pc*100W |
LED Working Voltage: |
DC 30~36V |
System Consumption: |
106W |
LED Luminous Flux |
Warm White |
9100LM |
Pure White |
10450LM |
Cool White |
10450LM |
Viewing Angle: |
120degree |
Center Illuminance |
Height 3M |
343LUX |
Height 4M |
192LUX |
Height 5M |
123LUX |
Illuminance Area |
Height 3M |
Dia.2.6 M points visible |
Height 4M |
Dia.3.4 M points visible |
Height 5M |
Dia.4.2 M points visible |
Illuminance Uniformity: |
>0.6 |
Color Temperature |
Warm White |
3000K~3300K |
Pure White |
5500K~5700K |
Cool White |
6000K~6500K |
Color Rendering Index |
Ra>78 |
Light Distribution: |
LED points visible |
Light Design: |
LED+ |
LED Junction Temperature: |
≤115degree |
Working Temperature: |
–40degree~50degree |
IP Grade: |
IP54 |
Working Life-span: |
50000 H |
Power Line: |
1.0 mm three line |
Connect Wire |
Brown |
L |
Blue |
N |
Yellow / Green |
G |
The color of the lamp shell |
Black and silver is available |
Certificate |
CE /Rohs |
Net Weight: |
7.1kg |
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
