Advertising P16 Full Color LED Display
| Price: |
US $ 520-960/Square Meter |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
p16 LED Display
1. Certification: CE, RoHS, UL, SGS
2. Warranty: 7years
3. Support TV, S-Video, DVI, AVI, MOV.
4. High resolution, 6944DOT/sqm
|
Description |
Technical parameter |
|

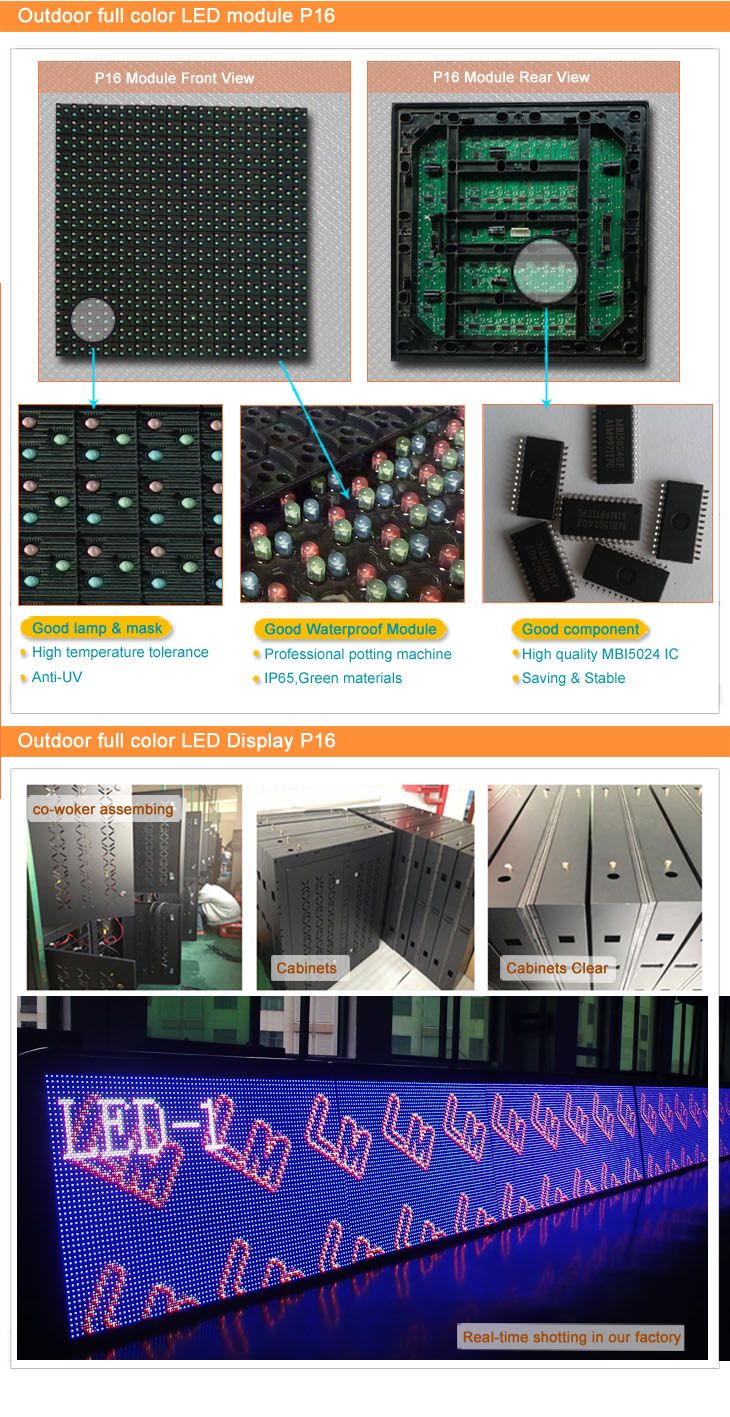

Unit module |
Module size |
256*128mm |
|
Pixel pitch |
16mm |
|
Pixel density |
3906dots/m2 |
|
Pixel configuration |
1R1G1B |
|
Led specification |
Φ 5ellipse |
|
Pixel resolution |
W: 16dots*H: 8dots |
|
Cabinet |
Dimension |
1024mm*768mm*170mm |
|
Quantities of module |
24pcs |
|
Power supply |
5pcs |
|
Thermal discharge |
Fan*2pcs |
|
Total weight |
55kg |
|
Best viewing angle |
12-300m |
|
Temperature |
Storage: -35~+85 |
|
Working: -35~+85 |
|
Thickness |
17cm can adjustable |
|
Remarks: cabinet size can changed, upon project need. |
|
Power |
Working voltage |
AC220V/110V± 10% |
|
Average power consumption |
250-480W |
|
Max. Power consumption |
≤ 560W/sqm |
|
Current |
≤ 20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above |
|
Operating system |
WIN98/2000/NT/XP |
|
Control method |
Synchronization |
|
Main technical parameter |
Driving device |
Static scanning |
|
Drive type |
Constant Current driver IC |
|
Refresh frequency |
≥ 400Hz |
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
Brightness of white balance |
More than 8000cd/sqm |
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
Operating ambient humidity |
10%--95% |
|
Video signal |
PAL/NTSC |
|
Control system |
DVI display card+full color controller card |
|
MTBF |
≥ 10, 000hours |
|
Life span |
≥ 100, 000hours |
|
Flatness |
Tolerance of interpixel ≤ 0.3mm |
|
Tolerance of modules clearance≤ 0.6mm |
|
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Communication distance |
Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
|
Software |
LED media player |
| Prod Model: |
p16 LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
8000 LED Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Configuration: |
2R, 1G, 1B |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
ETL |
| Pixel Density: |
6400 dot / m² |
| Average Power Consumption: |
350W / m² |
