Usage;

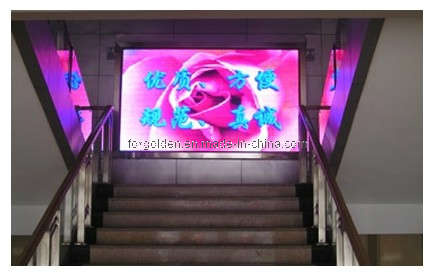

LED display is widely used in finances, post offices, telecom, commerce, hospitals, stadiums, shop, plaza, concert, fashion shows, exhibitions and so on.Features and advantages;
1. Your inquiry related to our products or price will be replied in 24hours
2. OEM&ODM price, ex-work price, factory price, FOB price, CIF price.
3. Products of various specs and models may be ordered at your requirement.
4. Our engineers are free to help installing and adjusting display.
Our factory professionally manufacture follow products,
1) Single color LED display, dual color LED display, and full color LED display.
2) Indoor LED display semi-outdoor LED display and outdoor LED display.
3) LED moving sign, LED message sign, LED sign, programmable LED moving message sign board, variable message signs, electronic message sign, LED scrolling message signs, LED text display.
4) LED display screen, LED display board, LED display module, LED display cabinet.
5) LED video display, LED advertising display, truck mobile LED display, rental LED display, stadium LED display, concert LED display, and stage LED display.
6) Wireless LED display board, computer controlled LED display.
Warm Tip:
There is DIP, SMD, and Dotmatrix LED display for customer choosing.
LED display styles: P4, P4.75, P5, P6, P7.62, P8, P10, P12, P12.5, P14, P16, P20, P25, P31.5, P40, P80.
|
Description |
Technical parameter |
|

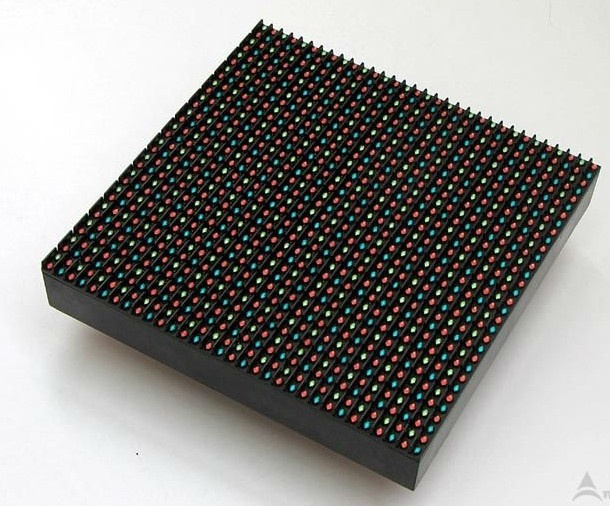

Unit module |
Module size |
192*96mm |
|
Pixel pitch |
6mm |
|
Pixel density |
27777dots/m2 |
|
Pixel configuration |
1R1G1B |
|
Led specification |
3528 SMD 3 in 1 |
|
Pixel resolution |
W: 192dots*H: 96dots |
|
Cabinet |
Dimension |
768mm*768mm*150mm |
|
Quantities of module |
32pcs |
|
Power supply |
4pcs |
|
Thermal discharge |
Fan*2pcs |
|
Total weight |
40kg |
|
Best viewing angle |
2-100m |
|
Temperature |
Storage: -35~+85 |
|
Working: -35~+85 |
|
Thickness |
15cm can adjustable |
|
Remarks: cabinet size can changed, upon project need. |
|
Power |
Working voltage |
AC220V/110V± 10% |
|
Average power consumption |
200-300W |
|
Max. Power consumption |
≤ 320W/sqm |
|
Current |
≤ 20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above |
|
Operating system |
WIN98/2000/NT/XP |
|
Control method |
Synchronization |
|
Main technical parameter |
Driving device |
1/16scanning |
|
Drive type |
Constant Current driver IC |
|
Refresh frequency |
≥ 300Hz |
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
Brightness of white balance |
More than 2200cd/sqm |
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
Operating ambient humidity |
10%--95% |
|
Video signal |
PAL/NTSC |
|
Control system |
DVI display card+full color controller card |
|
MTBF |
≥ 10, 000hours |
|
Life span |
≥ 100, 000hours |
|
Flatness |
Tolerance of interpixel ≤ 0.3mm |
|
Tolerance of modules clearance≤ 0.6mm |
|
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Communication distance |
Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
|
Software |
LED media player |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
