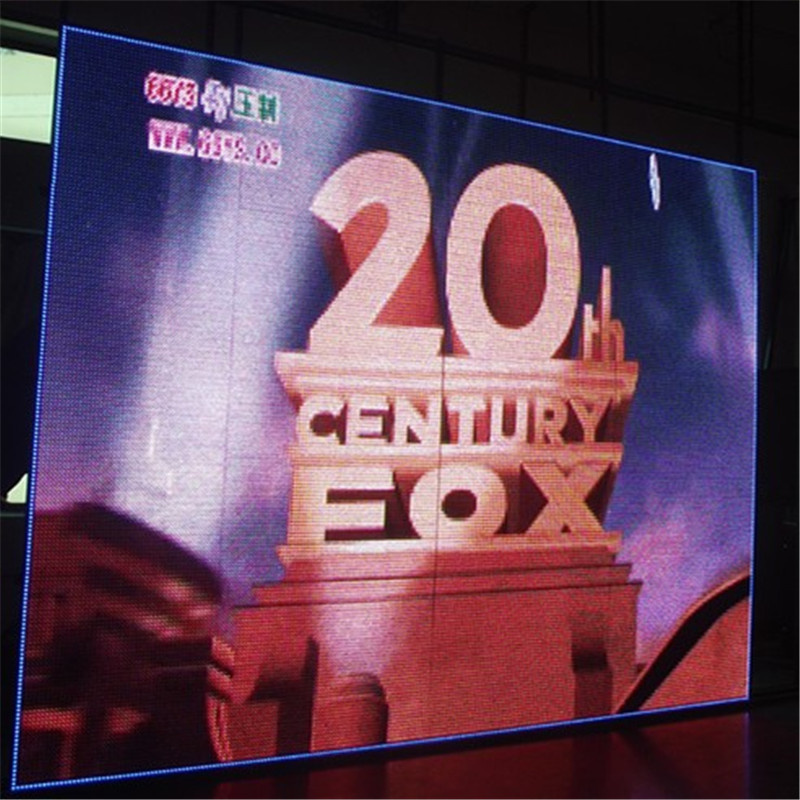

New Technology P10 Outdoor LED Billboard
1. UL, CE&RoHS
2. HD high resolution
3. Uniform color, good after sale-sevice
4. waterproof ip65
5. Warranty 5years
| The technology parameter of P 10outdoor |
| Number | Item | P10 |
| 1 | Pixel pitch | 10mm |
| 2 | Size of modual | 160mm X 160 mm |
| 3 | Resolution of modual | 816*16 |
| 4 | Density of pixel | 10000dots/m2 |
| 5 | Pixel configuration | 1R1G1B |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | 8-150m |
| 11 | Horizontal viewing angle | 120° |
| 12 | Maximum power consumption | ≤ 800W/m 2 |
| 13 | Brightness | ≥ 7000cd /m 2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | constant scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | ≥ 300Hz |
| 20 | Working voltage | AC220V/110V± 10% |
| 21 | IP grade | IP65 |
| 22 | Working temperature | -20° C~80° C |
| 23 | MTBF | > 10000 hours |
| 24 | Life span | > 100, 000 hours |
| 25 | Defects rate. | ≤ 0.00001(Led display line standard< 0.0001) |
| 26 | Computer operation system | Win XP/Vista/ Win 2000/WIN7ect. |
| 27 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC. ect |
| 1. Dust-proof: High-temperature spray technology: can greatly increase the capability of rust-proof. |
| 2. Moudle planeness: ≤ ± 0.2mm |
| 3. Super uniformity in color. |
| 4. Long life-span. Use wave soldering technology for circuit board, prevent from humidity and oxidation, can extend its use life. |
| 5...Energy-saving. Use high efficiency switching power supply, reduce failure rate of power supply. |
| 6. Silicagel is filled and embedded on the front face of the display module, and the all-door structural design protects the LED display from water, dust, and corrosion, antifreeze. |
| 7. Passed IP67 waterproof and dustproof test. |
| 8. High reliability. Flexible to work under different climate condition, can work normally in all harsh environment, such as strong wind, sandstorm, high temperature, low temperature, dryness, rainstorm, and so on. |
