| Price: | US $ 155-175/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |
Model SV-LLD80W
Electrical Characteristics
No. of LED 4pcs. Bridgelux® Vero 18
LED Current 700mA
Input Voltage & Frequency AC90-305V, 50-60Hz
AC Input Current ≤1.30A @110V | ≤0.396A @220V
System Power 80W±10%
Power Factor ≥0.9 (0.95 )
% THD ≤20
Photometrics & Chromaticity
Total Rated Lamp Lumens 12240lm
CCT 3000~6400K±300K
CRI ≥70
Light Distribution Pattern Type 3,Polarized
Field Angle H145.1 V86.4
Lumen Maintenance >50,000hours
Environmental Characteristics
IP Rating IP66
Operating Temperature -40°C to +55°C
Operating Humidity 10-95%RH
Storage Temperature -40°C to +70°C
Storage Humidity 10-95%RH
Mechanical Characteristics
Overall Dimensions 588mm x 346mm x 107mm
Weight 9.3 kg
Installation Accessories: +5° Inclination Adjustment Kit
10KV independent Thunder-proof component(Optional)
OPTION:
| model | 40W | 60W | 80W | 100W |
| LED chip | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 |
| Lamp Lumens | 6120lm | 8520lm | 12240lm | 14500lm |
| Input Voltage & Frequency | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| CCT | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K |
| System Power | 40W±10% | 60W±10% | 80W±10% | 100W±10% |
| Power Factor | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Weight | 7.1 kg | 7.1 kg | 9.3 kg | 9.3 kg |
| Overall Dimensions | 462mm x 346mm x 107mm | 462mm x 346mm x 107mm | 585mm x 346mm x 107mm | 585mm x 346mm x 107mm |
According with North America, Europe, Asia, China and other city led street light standards of professional LED lights, suitable for different pole height, road width and different installation methods;
Several types of light lens, according with different led street light needs, makes it suitable perfectly for any led street light environment, energy saving, enhance the use value of led street light.
Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking
Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;
2. Adopted original Bridgelux® LED array .low glare, led street light lamps efficiency more than 125lm/W ;
3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, led street light power efficiency high;
4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;
5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;
6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;
7. IP66 protection rating against dust and water performance stability, extend led street light life;
8. Safety and Environmental standards recognition, 5 years quality warranty;
Test Report:
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.

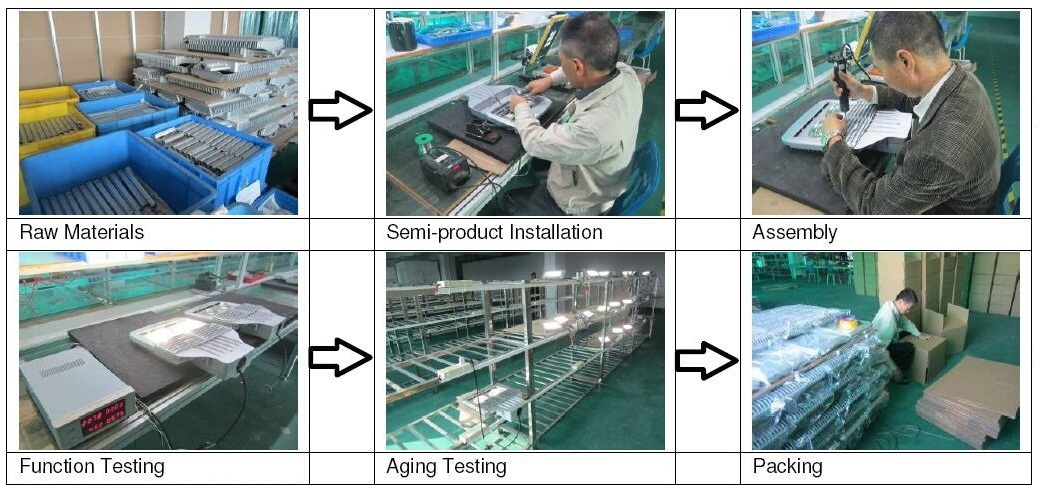

Work Flow:
| Prod Model: | SV-LLD80W |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lumen Maintenance: | >50,000hours |
| Operating Temperature: | -40°c to +55°c |
| LED Current: | 700mA |
| Lamp Lumens: | 12240lm |
| Power Factor: | >0.95 |
| CRI: | >70 |
| Power Supply: | AC |
| Lamp Body Material: | Aluminum Alloy |
| Power: | 60-100w |
| Application: | Expressway,Major Roadway,Local Roadway. |
| IP Rating: | IP66 |
| Certification: | UL |
| With Light Source: | Without Light Source |
| LED Chips Brand: | Bridgelux |
| Color Temperature: | Pure White, Warm White, Cool White |
| Input Voltage: | AC90-305V |
