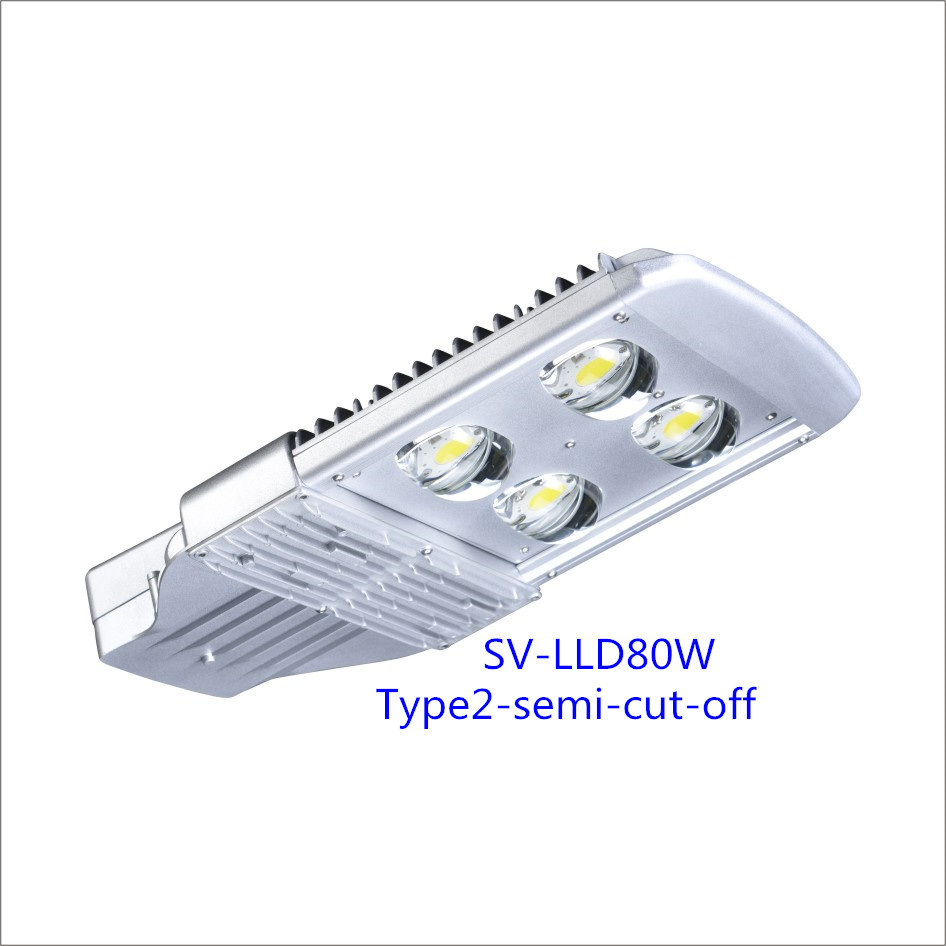

Model SV-LLD80W
Electrical Characteristics
No. of LED 4pcs. Bridgelux® Vero 18
LED Current 700mA
Input Voltage & Frequency AC90-305V, 50-60Hz
AC Input Current ≤1.30A @110V | ≤0.398A @220V
System Power 80W±10%
Power Factor ≥0.9 (0.95 )
% THD ≤20
Photometrics & Chromaticity
Total Rated Lamp Lumens 12240lm
CCT 5000K±300K
CRI ≥70
Light Distribution Pattern Type 2, Cutoff
Field Angle H155.5 V122.9
Lumen Maintenance >50,000hours
Environmental Characteristics
IP Rating IP65
Operating Temperature -40°C to +55°C
Operating Humidity 10-95%RH
Storage Temperature -40°C to +70°C
Storage Humidity 10-95%RH
Mechanical Characteristics
Overall Dimensions 585mm x 346mm x 107mm
Weight 9.3 kg
Installation Accessories +5° Inclination Adjustment Kit
10KV independent Thunder-proof component (Optional)
OPTIONS
| model | 40W | 60W | 80W | 100W |
| LED chip | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 |
| Lamp Lumens | 6120lm | 8520lm | 12240lm | 14500lm |
| Input Voltage & Frequency | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| CCT | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K |
| System Power | 40W±10% | 60W±10% | 80W±10% | 100W±10% |
| Power Factor | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Weight | 7.1 kg | 7.1 kg | 9.3 kg | 9.3 kg |
| Overall Dimensions | 462mm x 346mm x 107mm | 462mm x 346mm x 107mm | 585mm x 346mm x 107mm | 585mm x 346mm x 107mm |
According with North America, Europe, Asia, China and other city outdoor light standards of professional LED lights,, suitable for different pole height, road width and different installation methods;
Several types of light lens, according with different street light needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of outdoor light.
Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking
Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;
2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;
3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;
4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;
5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;
6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;
7. IP66 protection rating against dust and water performance stability, extend outdoor light life;
8. Safety and Environmental standards recognition, 5 years quality warranty;
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.
