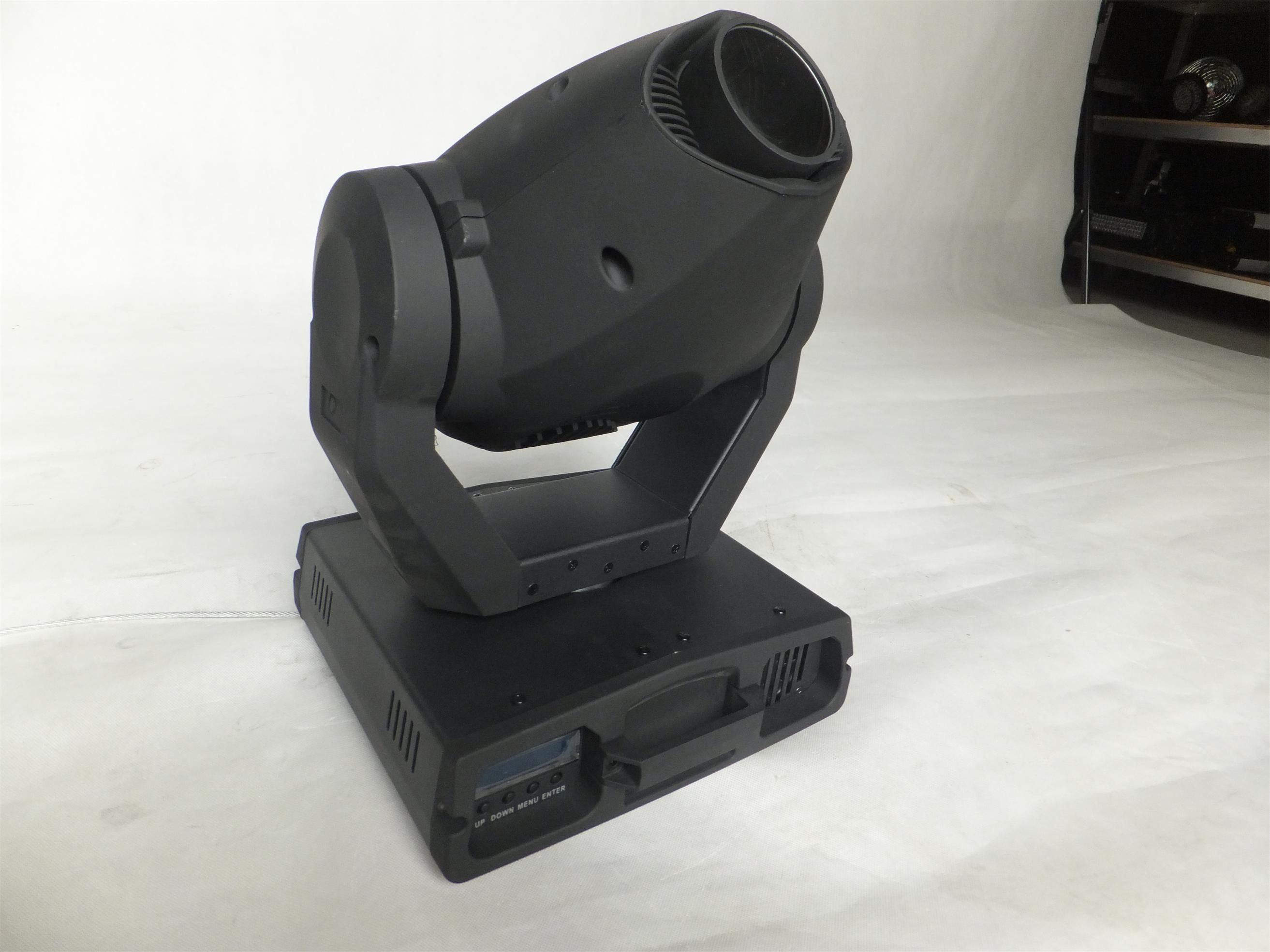

Moving head gobo lights:
The crystallization of wisdom and science and embody all concepts and minds of designers. Firstly dodging and shunning the prevalent trends: The over fat profile in aesthetic sense and introduce and exercise the simplest aesthetic principle of industry civilization: Simple and economical. Looking dignified, sedate with clear cut lines and contours, and present you with first impression: Small and exquisite, passion, optimism and heroism. Secondly set of new ideas and trails are blazed in structuring, electronic and microprocessing. Compactly laid out, no more space to spare, well organized optical system making double brighter than the corresponding ones.
Features:
1.60W High Output LED Moving Head that produces a spot effect
2. Fan cooled, Shutter: Pulse effect; Random strobe slow to fast
3. Hanging bracket included, 3-pin XLR In/Out
4. Remote focus.
5. LCD DMX menu system
6. Stepper motors with micro stepping
7. Flicker-free operation
Our services:
1. Your inquiry related to our products or prices will be replies in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design
And put into product without any charges
3. Sincerely treasure your cooperation.
1 |
Voltage |
90-260V, 50Hz/60Hz |
2 |
Lamp |
60W white LED source, 6500°K (50,000 hours rated) |
3 |
Power consumption |
200W max |
4 |
Modes |
DMX, Master/Slave, Stand Alone & Sound Active |
5 |
Channels |
15 |
6 |
Color- wheels |
7 Independen Colors + White |
7 |
Gobo-wheels |
7 Rotating, Interchangeable Gobos + Spot (5 metal + 2 glass gobos) |
8 |
Prism Wheel |
4-Facet,auto Pan/Tilt repositioning |
9 |
Dimming |
0% - 100% |
10 |
Beam angle |
16-degree |
11 |
Movement |
Pan: 540-degree |
Tilt:280-degree |
Dimensions (LxWxH):420*410*490mm
Weight: 12.0kg
Channels:
Channel 1 |
Horizontal movement (Pan) |
Channel 2 |
Pan fine 16 bit |
Channel 3 |
Vertical movement (Tilt) |
Channel 4 |
Tilt fine 16 bit |
Channel 5 |
Speed of PAN / TILT movement |
Channel 6 |
Rotating gobo-wheel |
Channel 7 |
Colour-wheel |
Channel 8 |
Gobo rotation |
Channel 9 |
Dimmer |
Channel 10 |
Shutter and strobe |
Channel 11 |
Four-facet prism |
Channel 12 |
Prism rotation |
Channel 13 |
Focusing |
Channel 14 |
Gobo indexing |
Channel 15 |
Reset |
GUANGZHOU TOPSTRIVING PHOTOELECTRICITY TECHNOLOGY Co., Limited, founded in 2010, is a supplier and manufacturer of professional entertainment effect lightings with a roster of products including, but not limited to, DMX lighting controller, LED applications, effect lightings, yoke lights, lasers, stage lights, foggers, a variety of other accessories.The dedication and commitment to the customers is the foundation of TOPSTRIVING.Our experienced and devoted workers allow us to make finished products that share both the competitive pricing of mass production as well as the quality and individuality of the items.We have a big showroom which offers you the general idea of the products;A well-equipped R&D lab, covering the structuring, electronics, program-writing and optics to instruct and control the whole procedure of developing, testing and mass production of organization.In addition to our standard products we welcome the opportunity to make products to our customers' specifications and demands.We can assist you from design and engineering through production and final packaging and conclude business based on ODM.We are also pleased to offer private labeling and silk-screening prints of our standard product designs for your individual market needs and conduct business based on OEM/ODM/OBM.
