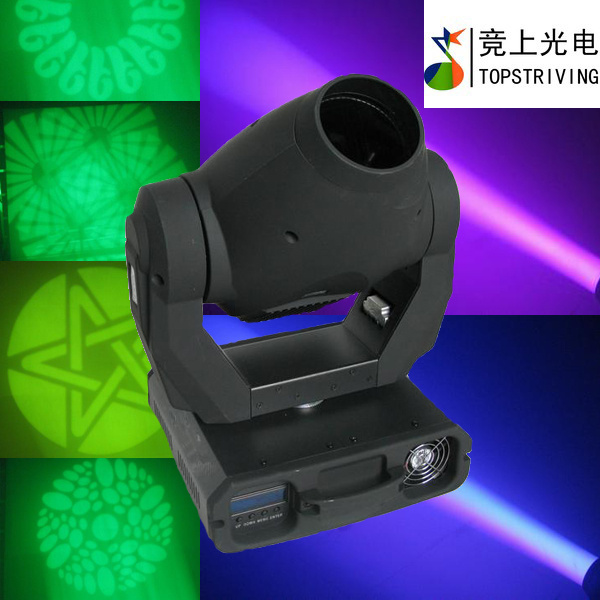

LED Spot Moving Head Light with 150W LEDs

LED Spot Moving Head Light with 150W LEDs
Model: PRO SPOT 35;
With a high output 150W long life white LED source;

Precise optical system to well use the LED light output over 100%;
Precise optical system to make gobo/color showing sharply, clearly, not any reflected light around gobos/colors;
Silent fans, very small noise only dB 20% of the normal fan noises;
Module designs for easy assembling and warranty;
Direct DMX address setting by standard DMX controller;
Special designed IC making cool and running long time;
Black rubber painting;


Technical Specification:

(1) AC 100-120V 60Hz, AC 200-240V 50Hz;

(2) Powered by a high output 150W long life white LED source;

(3) (8000° K, 50, 000 hr. ) with a low power draw of 300W;

(4) Brightness similar to MSD 575W lamp;

(5) LED Moving Head that produces a spot effect;

(6) 4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active;

(7) Blue LCD display, compact & light weight and offers plenty of PRO features such as:
6 Dichroic Colors + white, 6 Rotating Gobos (Interchangeable), 6 static gobos,
A Prism Wheel with 4-facet, Dimming (0-100%), Strobe effect;

(8) 16 DMX channels and a Gobo Scroll mode;

(9) Colour-system: Colour-wheel with 6 different, dichroic colour-filtres and white, Rainbow-effect in both directions;

(10) Gobo-wheel 1 with 6 static metal-gobos and open,
Gobo-wheel 2 with 6 rotating gobos plus spot(2 glass gobos);

(11) Beam angle can be adjusted from min. 13° To max. 20° ;

(12) The rotating gobos can be turned by 360° , the adjusted position is memorized.
High-speed rotating 4-facet prism;

(13) Shutter/dimmer unit allowing very smooth dimming and strobe effect 1-10 flash per sec;

(14) Blue LCD display, receiving DMX values;

(15) Remote reset function, Silent fans cooling;

(16) 16 DMX-channels each DMX channel function can be achieved by LCD display setting;

(17) Pan-movement range 530° , Tilt-movement range 280° ,
Auto Pan/Tilt repositioning, High luminous-efficiency parabolic mirror,
And double condenser system;

(18) Motorized focus controllable via DMX;

(19) Steplessly adjustable iris, all lenses are anti-reflection coated;

(20) Dimension: 400*330*550mm.

(21) Weight (net): 16.30kgs.


DMX FUNCTIONS: 16-CHANNEL MODE
Channel 1 - Horizontal movement (Pan);
Channel 2 pan fine 16 bit;
Channel 3 - Vertical movement (Tilt);
Channel 4 tilt fine 16 bit;
Channel 5 pan/tilt movement speed adjustments;
Channel 6 - static gobo-wheel;
Channel 7 - Color-wheel;
Channel 8 dimmer from 0-100%;
Channel 9 strobe from slow to fast;
Channel 10 - rotating gobo-wheel;
Channel 11 - rotating gobo moving forward and backward;
Channel 12 prism, prism rotating;
Channel 13 iris;
Channel 14 zoom;
Channel 15 focus;
Channel 16 reset.
