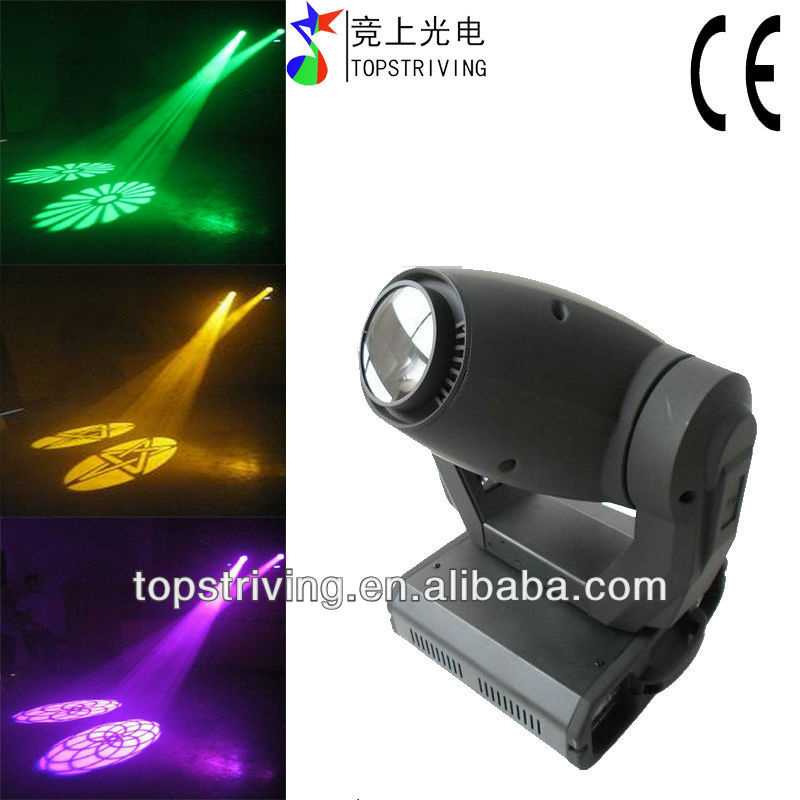

100W HIGH OUTPUT LED MOVING HEAD / LED moving beam light / DREAM SPOT
1. TECHNICAL SPECIFICATIONS
1) Power supply: 90-240 V AC, 50/60 Hz ~
2) Power consumption: 250W
3) DMX-512-connection: 3-pin XLR
4) Flash-rate: 10 Hz
5) Dimension: 420x410x490mm
6) Weight (net): 18.0 kg
7) Maximum ambient temperature ta: 45° C
Channel 1 - Horizontal movement (Pan)
Push slider up in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other. The head can be turned by 530° And stopped at any position you wish.
Channel 2 - Pan fine 16 bit
Channel 3 - Vertical movement (Tilt)
Push slider up in order to move head vertically (TILT). Gradual head adjustment from one end of the slider to the other. The head can be turned by 280° And stopped at any position you wish.
Channel 4 - Tilt fine 16 bit
Channel 5 - Speed of PAN / TILT movement
Channel 6 - static gobo-wheel
0 - 15 Open/hole
16-31 Gobo 1
32-47 Gobo 2
48-63 Gobo 3
64-79 Gobo 4
80-95 Gobo 5
96-111 Gobo 6
112-127 Gobo 7
128-255 gobo following in the order gobo 1 to gobo 7 in both directions
Channel 7 - Colour-wheel
0-15 Open / white
16-31 red
32-47 orange
48-63 yellow
64-79 green
80-95 light blue
96-111 dark blue
112-127 purple
128-255 rainbow effects in both directions
Channel 8 dimmer
0-255 dimming from darkness to full brightness
Channel 9 shutter and strobe
0-50 shutter open
51-220 strobe from slow to fast
221-255 shutter open
Channel 10 - rotating gobo-wheel
0 - 15 Open/hole
16-31 Gobo 1
32-47 Gobo 2
48-63 Gobo 3
64-79 Gobo 4(glass)
80-95 Gobo 5
96-111 Gobo 6
112-127 Gobo 7(glass)
128-255 gobo following in the order gobo 1 to gobo 7 in both directions
Channel 11 - Gobo rotation
0 - 127 forward gobo rotation from slow to fast
128 - 252 backward gobo rotation from slow to fast
253-255 gobo to be static
Channel 12 four-facet prism+ prism rotation
Channel 13 focusing
Channel 14 iris
Channel 15 gobo indexing
Channel 16 reset, blackout
2. Trade Terms:
1. Payment Terms: By T/T or western union or paypal
2. Delivery time: 40'HQ container within 4 weeks
3. Shipping method: DHL, UPS, FedEX, TNT door to door service, by sea, by air, etc
4. OEM&ODM: Accepted.
5. Packing: Carton packing or fight case optional.
6. MOQ: 10PCS
Our Service:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design and put into product without any charges.
3. Promised After-sales Service.
4. Definitely high brightness with good material inside.
5. Customised LED Quantity Design.
Packing:
Carton packing or fight case, optional. Both are tough and safe.
We are looking forward to your long term business relationship with you!
|
Delivery time |
about 1 week |
|
Producing time |
15 -20 days |
|
OEM or ODM service |
accept |
|
Payment |
T/T,paypal,Western Union |
|
Warranty time |
Full 2 year |
