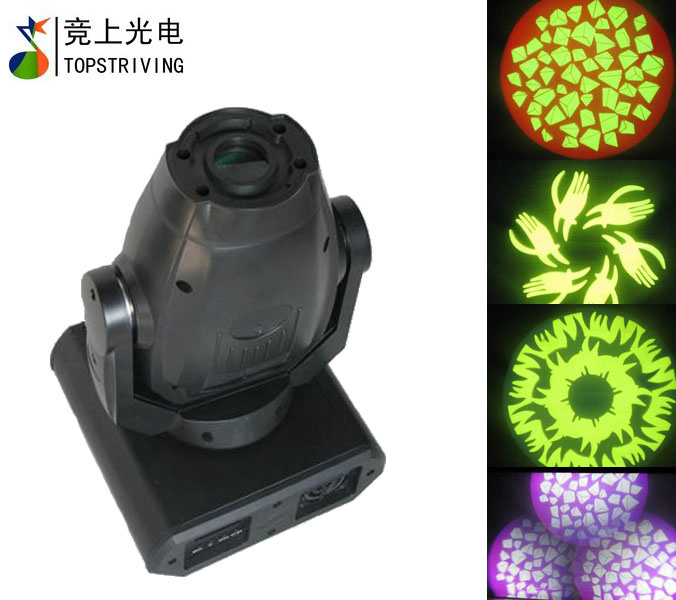

60w Led Moving Head Spot Light (LED SPOT 60 II)
Technical Specifications:
(1) Precise optical system to well use the led light output over 100%;
Precise optical system to make gobo/color showing sharply, clearly, not any reflected light around gobos/colors; Silent fans, very small noise; Module designs for easy assembling and warranty; Direct DMX address setting by standard DMX controller;
(2) Special designed IC making cool and running long time;
AC 100-240V 50/60HZ;
(3) powered by a high output 60W long life white LED source,
(6500K, 50, 000 hr. ) with a low power draw of 180W,
LED Moving Head that produces a spot effect;
(4) 4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active;
(5) LED display, compact & light weight and offers plenty of pro features such as:
7 Dichroic Colors + white, 7 Rotating Gobos (Interchangeable),
A Prism Wheel with 3-facet, Dimming (0-100%), Strobe effect;
(6) 16 DMX channels and a Gobo Scroll mode,
Colour-system: Colour-wheel with 7 different, dichroic colour-filtres and white, Rainbow-effect in both directions;
(7) Gobo-wheel with 7 rotating gobos plus spot(2 glass gobos),
The rotating gobos can be turned by 360° , High-speed rotating 3-facet prism,
Shutter/dimmer unit allowing very smooth dimming and strobe effect 1-30 flash per sec.
Remote reset function, Silent fans cooling;
(8) Pan-movement range 530° , Tilt-movement range 280° ,
Auto Pan/Tilt repositioning, High luminous-efficiency parabolic mirror,
And double condenser system, Motorized focus controllable via DMX;
(9) Dimension: 400*270*280mm;
(10) Weight (net): 8.85kgs.
DMX FUNCTIONS: 16-CHANNEL MODE
|
|
Channel 1 |
dimmer from 0 - 100% |
|
Channel 2 |
strobe from slow to fast |
|
Channel 3 |
Color wheel |
|
Channel 4 |
semi colors |
|
Channel 5 |
Horizontal movement (Pan) |
|
Channel 6 |
Vertical movement (Tilt) |
|
Channel 7 |
3 facet prism |
|
Channel 8 |
prism rotating |
|
Channel 9 |
rotating gobo wheel |
|
Channel 10 |
gobo rotating |
|
Channel 11 |
gobo moving backword and forward |
|
Channel 12 |
focus |
|
Channel 13 |
pan fine 16 bit |
|
Channel 14 |
tilt fine 16 bit |
|
Channel 15 |
pan/tilt movement speed adjustments |
|
Channel 16 |
reset |
