600X600 Warm White Dimmable Flat Panel Light LED for Restaurant
Specifications of 600x600 LED Panel Light :
LED Panel Lightings / Flat LED Panel Light
Item No.:RB-PL-6060-B
Input Voltage: AC 85~265V/ 50-60HZ
LED Power: 36W 40W 48W
LED Quantity: SMD 4014
Power Factor:>0.95;Power Efficiency:>0.88
LED Luminous Flux Warm White,Nature White, Pure White
LED Panel light Viewing Angle: 120 degree
Color Temperature Warm White 3000K~3500K
Nature White 4000K~4500K,Pure White 5500K~6500K
Luminous Efficiency: >90lm/W
Color Rendering Index : Ra≥80
Working Temperature: 40oC~50oC
IP Grade: IP54
Body Size: 600*600*11.5mm
Material: Aluminium /SPCC/PMMA
Working Life-span: 50000 H
Certificate CE & RoHS &TUV
| Dimension: 600mm * 600mm | Power: 36W 40W 48W |
| Input Voltage: AC85-265V | LED Type: 4014 High Lumen |
| LED quantity: 180pcs 0.2w/pcs 0.2w/pcs | View angle: 120°Viewing angle |
| CCT:3000/4000/5000/6000K | CRI: ≥80Ra |
| Luminous Efficiency: >90lm/w | Power Factor: >0.92 |
| Life time: >50,000 hrs | Working Environment: Indoor |
| Housing Material: Aluminum Alloy+PC | |
| Working Temperature: -20ºC ~ +50ºC | |
| Storage Temperature: -20ºC ~ +60ºC | |
Features of LED Panel Light :
1. Energy-efficient, environment-friendly
2. No glare, no noise, no UV
3. Ultra slim and fashionable design
4. Maintenance free, easy installation
5. No maintenance for the life of unit, apart from cleaning
6. Remote-control dimming available
7. Solid-state, high shock/vibration resistant
8. No fluorescent flickering
9. No danger of broken glass
10.Long lifetime, 50, 000+hrs(5+years)
Competitive Advantages of Panel Light :
1.50% energy saving same watts compare with CFL traditional lights .
2.No glare , no UV , no pollution . Friendly to environment , healthful for man
3.low luminous decay . 3% luminous decay After 2000hrs
4. Wide range voltage 85-265VAC
Installation information of LED Panel Light :
1.Please note the power wiring of positive and negative when installation power wiring (positive with word)
2.Connect into the panel lamp terminals power wire needs to tighten with the screw
3.To avoid danger, pls cut off power supply before connecting wiring.4.Lock the screw, pls not use
Embedded installation of led panel light
1.Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling , pls do not force squeezing or through the ceiling
2.please placed panel lamp handled with care, ensure the products shine with the best effect
3.Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds
Suspension installation of led panel light
1.Pls put a soft mat on the floor before Installing corner fixing parts , lest scratches or damaged panel
2.please placed panel lamp handled with care, ensure the products shine with the best effect
3.Lock the screw, pls not use greatly forcibly, lest crush the panel lamp
1.The first open four φ5mm holes on the ceiling
2.Make the glue plug put into open good holes
3.Screw through fixed cap, locked in plug hole

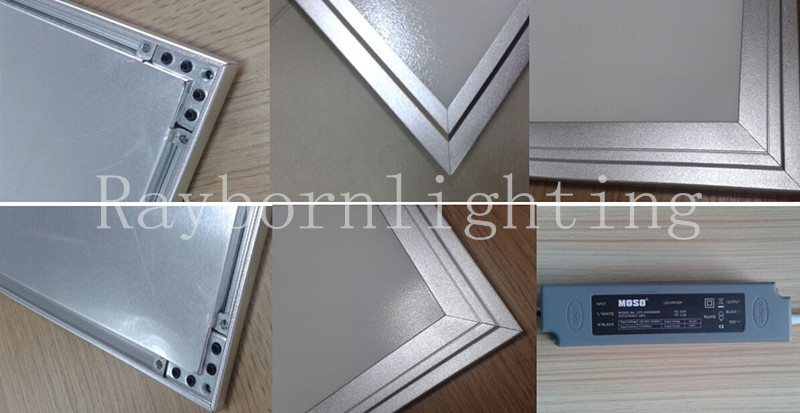

Led panel light detail photos :

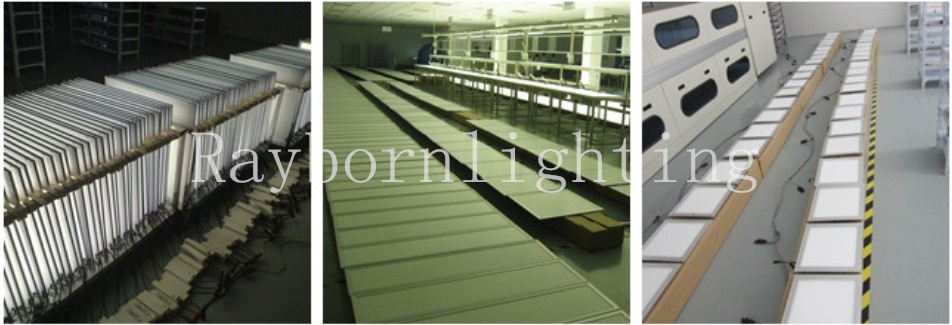

Led panel light aging test :

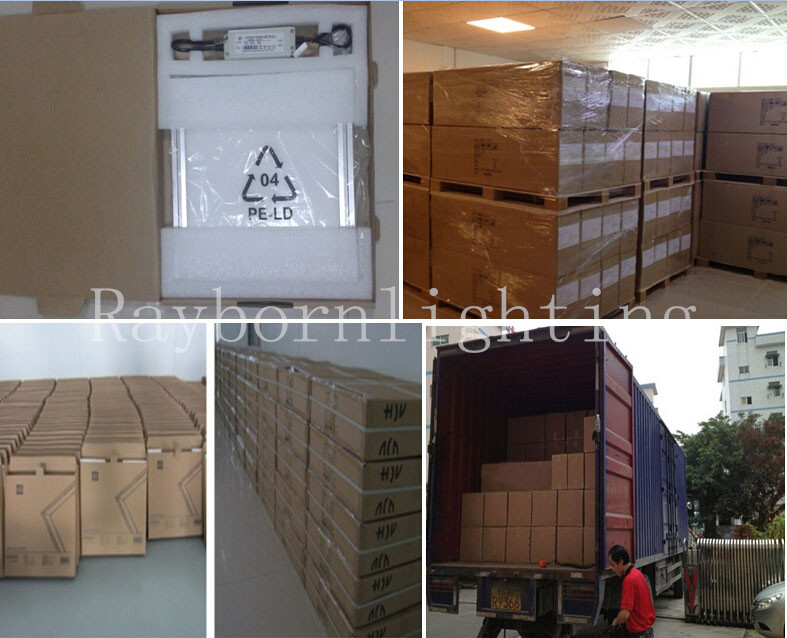

Led panel light packing :
Rayborn's Good Service:
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.
FAQ:
Q1: What is the warranty of our led panel lights?
A: We offer three years guarantee for our LED panel lights,and we will offer you based on your requirement.
Q2: What color temperature you can choose?
A: We offer LED panel lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K
Q3: Do our led panel lights can be used in your country?
A: Yes, Our LED panel light has wide input voltage AC85-265V, and it can be customized too.
Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.
Q5: Do you have any MOQ limited?
A: We don't have MOQ,even only one piece LED panel light you can buy.
Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.
Q7:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.
Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.
Pls don't feel hesitate to contact us if our products meet your requirements.Pls give me one enquiry,I will give you ten surprises.Believe me,I am sincere Charmaine.
| Prod Model: | RB-PL-6060-A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: | 7-10 Days |
| Transportation: | by Air,Sea,Express (DHL.FedEx,UPS,TNT etc.) |
| Dimension: | 600mm * 600mm |
| Power: | 36W 40W 48W |
| LED Type: | 4014 High Lumen |
| CRI: | >80ra |
| Lumen Efficiency: | >90lm/W |
| Power Factor: | >0.95 |
| Life Time: | >50,000 Hrs |
| Warranty: | 3 Years |
| Light Source: | LED |
| Housing Material: | Acrylic |
| Emitting Color: | Warm White |
| Dimmable: | With Dimmable |
| Appearance: | Square |
| Type: | Flat-Type |
| Base Material: | Metal |
| Certification: | RoHS |
| Voltage: | 100-240V |
| Beam Angle: | 120 Degree |
