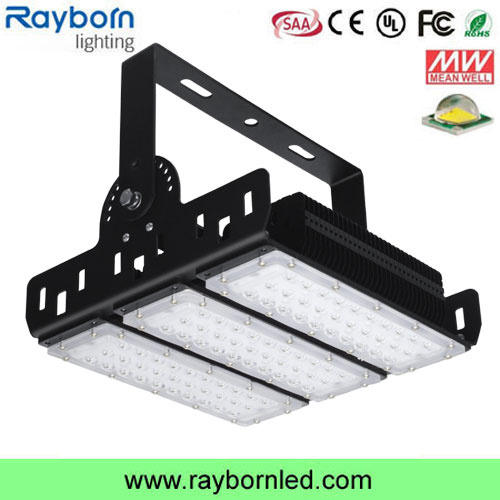

50W/100W/150W/200W/300W/400W IP65 Outdoor Advertising Board LED Tunnel Lights
Specifications:
LED Floodlight/Outdoor LED Flood lighting (10-600w)
| 150W LED Floodlight Main Technical Parameters |
| Item No.: | RB-FLL-150WSD |
| Input Voltage: | AC 100-277V |
| Freqency Range: | 50Hz~60Hz |
| Power Factor: | >0.95 |
| Power Efficiency: | >90% |
| LED Power | 150W |
| LED Chip | Samsung |
| LED QTY: | 144 pcs |
| LED Working Voltage: | DC 30~36V |
| System Consumption: | 153W |
| LED Luminous Flux | Warm White | 15200LM |
| Pure White | 16000LM |
| Cool White | 16500LM |
| Center Illuminance | 4 Meter | 363 lux |
| 4.5 Meter | 286lux |
| 6 Meter | 161lux |
| Viewing Angle: | 60/90/60*150° |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 3000K~3300K |
| Pure White | 4000K~4500K |
| Cool White | 6000K~6500K |
| Color Rendering Index | Ra>78 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -40ºC~50ºC |
| IP Grade: | IP65 |
| Working Life-span: | 50000 H |
| Power Line: | 1.0 m three line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
LED Flood light Features
LED flood light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.
1, High bright imported LED chip as light source:
Led flood light with good heat dissipation, low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.
2, Universally wide range voltage(AC100-277V):
Led flood light advanced constant-current driver be used which can start quickly, be high safety and reliability.
3, Unique heat sink design:
Led flood light perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
4, Surface treatment:
Led flood light static sprayed leading to better heat-resisting, high weather resistance, corrosion resistant, water proof and dust proof.
5, Energy saving:
Led floodlight use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
Competitive Advantage
1. CE & RoHS & SAA IP65 approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 7-20 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
Applications
Widely used in Tunnel , factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
Payment terms
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discouts are offered based on order quantities
FAQ
1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service
2. What is the warranty?
Answer : 3~5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable
4. Can you offer free samples?
Answer : No, but sample fee can be refunded depending on the coming order amount.
5. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
6. I don't know how many Led Flood Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
