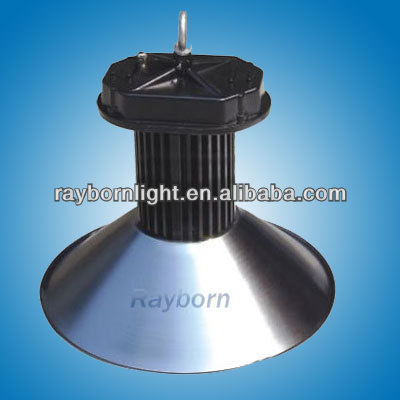

50w/100w/120w/150w LED High Bay Light with Pure Aluminum Heat Sink
Product Specifications:
Item No.: RB-HB-515-120W
Input Voltage: AC100~240V 50-60HZ
Power Factor: >0.97; Power Efficiency: >0.90
LED Luminous Efficiency 100-110lm/W
Lamp Rated Total Luminous Flux: 12500LM
High Bay LED Power Consumption: 120W
LED Chip: Bridgelux 45 mil
Beam Angle: 45/90/120 degree
Color Index: Ra≥ 78
Color Temperature: 2700-7000K
Operating temperature: -40º C~50º C
Protection Class: IP54
Useful Life: ≥ 50000 hours
Weight: N. W. 7.1KG
Lamp Body Material: Aluminum
Color of Housing: Black or Silver
Led High bay light Features:
1. Patented quadric lighting reflector, beam angle 45/90/120 available.
2. Cooper center of radiator, long lifespan, can be used for 50, 000 to 100, 000 hours
3. Its working voltage (AC100V-240V) can overcome the electrical grid, noise pollution and unstable light caused by ballast
4. Integrated Multiple LED BridgeLux chip with constant current, Taiwan meanwell power supply
5. Pure aluminum reflector sharply improve the reflect rate, and ensure the output lumen flux.
6. Lamp surface treated with anodization, corrosion-resistant, artistic appearance, and ensure the operating life of the LED light source.
7. Lighting intensity is uniform and without glare.
8. Cold light source, no heat radiation, harms-free to the eyes and skin, lead-free, mercury free, green lighting solution
Industrial Lamps Applications:
LED High Bay Lights widely used for Indoor and outdoor places:
Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
| 50W LED Industrial Light Main Technical Parameters |
| Item No.: | RB-HB-515-120W |
| Input Voltage: | AC 100~240V |
| Freqency Range: | 50Hz~60Hz |
| Led Chip: | Bridgelux 45 mil |
| Power Factor: | >0.97 |
| Power Efficiency: | >90% |
| LED Consumption: | 120W |
| LED QTY: | 1pc*120W |
| LED Working Voltage: | DC 30~36V |
| System Consumption: | 126 W |
| LED Luminous Flux | Warm White | 12500LM |
| Pure White | 12500LM |
| Cool White | 12500LM |
| Viewing Angle: | 45/60/120 degree |
| Center Illuminance | Height 3M | 588LUX |
| Height 4M | 331 LUX |
| Height 5M | 211LUX |
| Illuminance Area | Height 3M | Dia.2.6 M points visible |
| Height 4M | Dia.3.4 M points visible |
| Height 5M | Dia.4.2 M points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 2700K~3500K |
| Pure White | 5000K~5500K |
| Cool White | 6000K~7000K |
| Color Rendering Index | Ra>78 |
| Light Distribution: | LED points visible |
| Light Design: | LED+ |
| LED Junction Temperature: | ≤115degree |
| Working Temperature: | –40degree~50degree |
| IP Grade: | IP54 |
| Working Life-span: | 50000 H |
| Power Line: | 1.0 mm three line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| The color of the lamp shell | Black and silver is available |
| Certificate | CE & RoHS |
| Net Weight: | 7.1kg |
