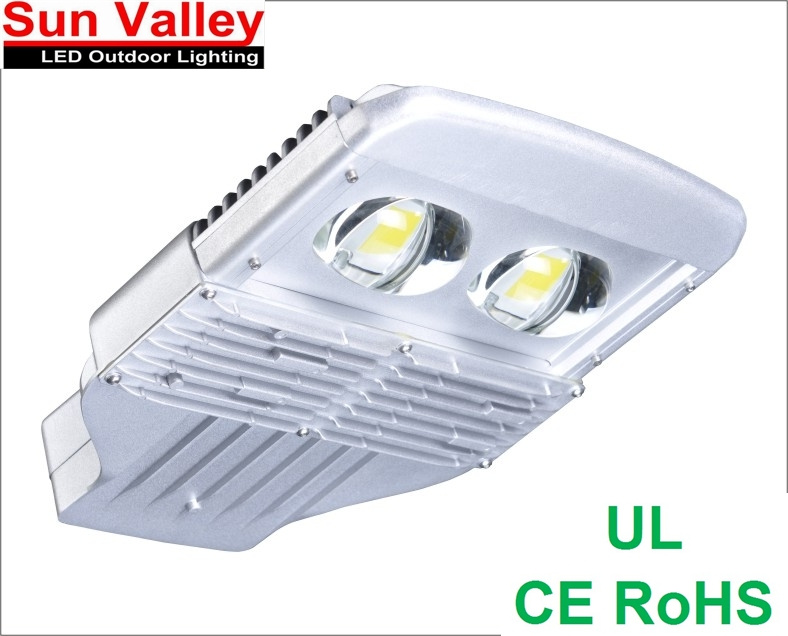

40W IP66 High Quality LED Street Light

According with North America, Europe, Asia, China and other city street light standards of professional LED lights,, suitable for different pole height, road width and different installation methods;

Several types of light lens, according with different street light needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of street light.

Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking



Model SV-LLD40W

Electrical Characteristics                                                                Photometrics & Chromaticity
No. of LED 2pcs. Bridgelux® Vero 18                                           Total Rated Lamp Lumens 6120lm
LED Current 700mA                                                                      CCT 5000K±300K
Input Voltage & Frequency AC90-305V, 50-60Hz                        CRI ≥70
AC Input Current ≤1.30A @110V | ≤0.213A @220V                    Light Distribution Pattern Type 5
System Power 40W±10%                                                             Field Angle H149.7 V147.5
Power Factor ≥0.9 (0.95 )                                                             Lumen Maintenance >50,000hours
% THD ≤20

Environmental Characteristics                                                      Mechanical Characteristics
IP Rating IP66                                                                               Dimensions 462mm x 346mm x 107mm
Operating Temperature -40°C to +55°C                                       Weight 7.1 kg
Operating Humidity 10-95%RH                                                    Installation Accessories +5° Inclination Adjustment Kit
Storage Temperature -40°C to +70°C                                         10KV independent Thunder-proof component
Storage Humidity 10-95%RH (Optional)

model	40W	60W	80W	100W
LED chip	Bridgelux® Vero 18	Bridgelux® Vero 18	Bridgelux® Vero 18	Bridgelux® Vero 18
Lamp Lumens	6120lm	8520lm	12240lm	14500lm
Input Voltage & Frequency	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz
CCT	5000K±300K	5000K±300K	5000K±300K	5000K±300K
System Power	40W±10%	60W±10%	80W±10%	100W±10%
Power Factor	≥0.9 (0.95 )	≥0.9 (0.95 )	≥0.9 (0.95 )	≥0.9 (0.95 )
Operating Temperature	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C
Weight	7.1 kg	7.1 kg	9.3 kg	9.3 kg
Overall Dimensions	462mm x 346mm x 107mm	462mm x 346mm x 107mm	585mm x 346mm x 107mm	585mm x 346mm x 107mm

Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;

2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;

3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;

4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;

5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;

6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;

7. IP66 protection rating against dust and water performance stability, extend street light life;

8. Safety and Environmental standards recognition, 5 years quality warranty;
