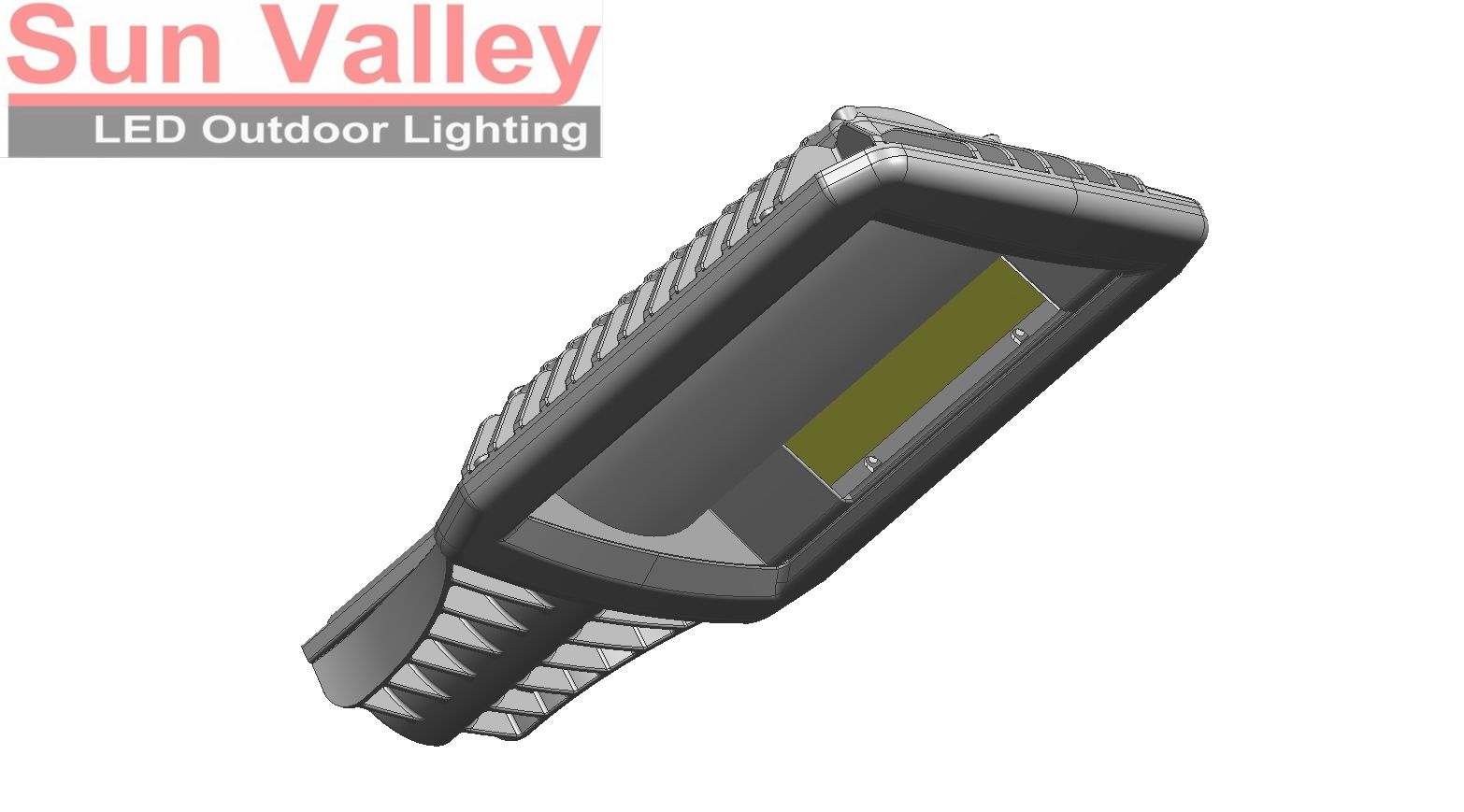

40W LED street light
ModelSV-LLD40
Chip: Epistar
Input Voltage90-264V AC
Power factor0.98
Power efficiency≥86%
LED Power40 W
General power consumption≤46 W
Lumens depreciation3 years<15%
LED light efficiency100~105 lm/watt
Illuminance uniformity ratio≥0.6
Color temperature3000K/5000K/6400K
Color Rendering IndexRa>75
FaculaRectangular flare
Main beam angle120*90 °
Enviromental temperature-30~60ºC
Enviromental humidity10%~95%
Storage temperature-40~70ºC
Lifespan>50000 hours
MaterialAluminium alloy and tempered glass
Product Size342mm×320mm×132mm
Neg weight3.8Kg
IP gradeIP65
Main Features and Benefits
Product patents: LED light source module patent; high power LED street light patent;LED light distribution structure patent;LED heat dissipation structure and appearance patent;
Lampshade Materials: High heat conductivity aluminium Alloy covered with tempered glass
No delay start
Eco-friendly: No UV, IR, leads or mercury
Lower maintenance charges. Save up 70% energy
Certificates: CE,FCC, ISO ,meet with Rohs standard
Payment Term: T/T, L/C
Warranty: 24 months
Applications
City streets and roads ; Pavements; Highway, Schools, Parks, Yards, Inhabitancy Area, Factories
Options:
| model | 40W | 60W | 80W |
| LED chip | Epistar | Epistar | Epistar |
| Lamp Lumens | 6120lm | 8520lm | 12240lm |
| Input Voltage & Frequency | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| CCT | 5000K±300K | 5000K±300K | 5000K±300K |
| System Power | 40W±10% | 60W±10% | 80W±10% |
| Power Factor | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Weight | 7.1 kg | 7.1 kg | 9.3 kg |
| Overall Dimensions | 462mm x 346mm x 107mm | 462mm x 346mm x 107mm | 585mm x 346mm x 107mm |
