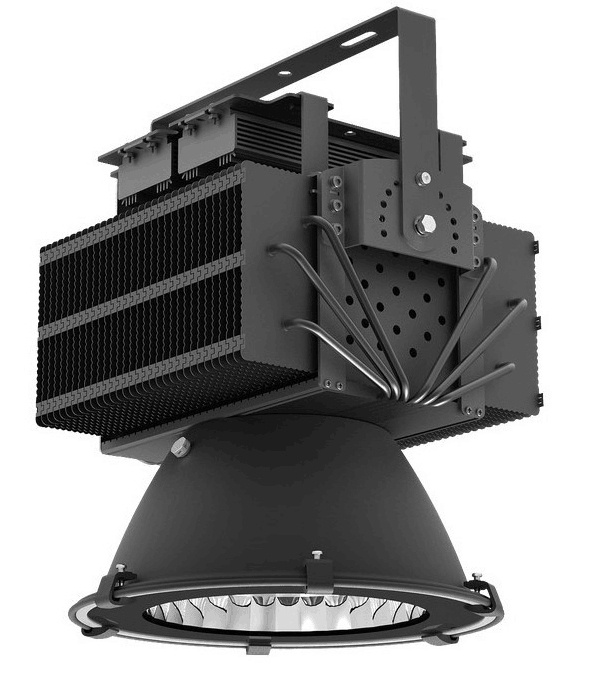

400W High Power High Lumens IP65 LED High Bay Lights
Product Specifications of 400W LED High Bay Light :
| 400W LED High Bay Light Main Technical Parameters |
| Item No.: | RB-HB-400WCR |
| Input Voltage: | AC100-277V |
| Freqency Range: | 50Hz~60Hz |
| LED Chip | CREE Xte/Samsung |
| Power Driver: | Meanwell HLG |
| Power Factor: | >0.98 |
| Power Efficiency: | >92% |
| LED Power | 400W |
| LED QTY: | 220PCS |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 405W |
| LED Luminous Flux | Warm White | 38600LM |
| Pure White | 41000LM |
| Cool White | 41200LM |
| Viewing Angle: | 25/60/90 degree |
| Centre Illuminance | Height 10M | 424lux |
| Height 20M | 107lux |
| Height 30M | 47lux |
| Illuminance Area | Height 10M | Dia.1100cm points visible |
| Height 20M | Dia.22014cm points visible |
| Height 25M | Dia.3302cm points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 2800K~3200K |
| Pure White | 5000K~5700K |
| Cool White | 6000K~6500K |
| Color Rendering Index | Ra>80 |
| Light Distribution: | LED points visible |
| Light Design: | LED+Reflectors secondary light distribution |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -40ºC~50ºC |
| Working Life-span: | 50000 H |
| IP Grade: | IP65 |
| Power Line: | 1.0 mthree line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| Net Weight: | 11.2KG |
Primary competitive advantages of IP65 LED high bay lights :
1.Flexible positions can be adjusted within 180°.
2.Adopted copper heat pipe, can conduct heat rapidly from the chips to radiator,greatly lower down the temperature of light source,extending life span.
3.Full series led high bay light are adopted Taiwan MeanWell drivers. Cree,Samsung,LG led chips are available.
4.Waterproof IP65 design,elimination mist,avoid condensation,widely used for indoor and outdoor environment.
5.Reflector 25° 60° 90° beam angles are available,meet the requirements of professional light distribution and can be use at different place.
6. 100W to 500W can be chosen, 5 years warranty.
Applications of High bay led light :
1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum and stadium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.
Installation information of 400W LED High Bay Lights :
1.Check all the parts and accessories of LED High bay light;
2.Must cut off the power supply before installation;
3.Make sure the light is fixed tightly to the surface of place for installation ;
4.Connect the power line of light with power supply, then switch on the power.
5.When the highbay light is working, it must be kept vertical downward.
Ageing Test of Waterproof High bay led light :
All our LED high bay lights will be tested before shipping,so that we can ensure the quality and light performance.Because we must be responsible to our customers.
We have CE,RoHS,SAA,UL certifications and so on.So you can rest assured to use our products.
Packaging of 400W LED High Bay Lights :
1.Label on backside of each high bay lights and your required label is available.
2.One piece led high bay Light per carton.
3.This is our regular packing of the led high bay light,if you need,we can also custom color packing and put your logo on it.
Shipping of LED high bay :
Our mode of transportation can be shipped by sea,by air or other way you like.You can choose the express company by yourself.
Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.
Rayborn Good Service:
1.Your inquirey related to our products or price will be replied within 24 hours.
2.All your inquireies will be well explained by our experienced staff.
3.OEM&ODM,also provide customized service.
4.Distributor ship is available for your unique design and some our current models.
5.We will keep secret for customer sale area,design ideas and all other private information.
Company Profile :
Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ:
Q1: What is the warranty of your high power led high bay lights?
A: We offer five years guarantee for our high power LED high bay lamps,and we will offer you based on your requirement.
Q2: What color temperature we can choose?
A: We offer LED high bay lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K
Q3: Do your led high bay lights can be used in our country?
A: Yes, Our LED high bay light has wide input voltage AC100-240V, and it can be customized too.
Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.
Q5: Do you have any MOQ limited?
A: We don't have MOQ,even only one piece LED high bay light you can buy.
Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.
Q7:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.
Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.
