Home LED Light Products 0.36 Inch 5 Digit 7 Segment LED Display

0.36 Inch 5 Digit 7 Segment LED Display

0.36 Inch 5 Digit 7 Segment LED Display
Price: US $ 0.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Contact Supplier
Lightkey Company Limited
Showroom Product Company Profile

Features
Ø         7.60 mm (0.30 inch) digit high
Ø         Excellent digit appearance
Ø         Wide viewing angle
Ø         Range of emitted colors
Ø         I.C. compatible
Ø         Low power consumption
Ø         White segment
Ø         RoHS compliant


Available options

Ø         Alternative emitting luminosity:
Standard or high brightness version
Ø         Alternative emitted color
Ø         Alternative segment color
Ø         Alternative font
Ø         Common Cathode is available
Ø         Cropped terminal pins
Part No.ChipIv@IF=20mAIv@IF=20mA
Common
Cathode		Common
Anode		MaterialColorWLDOne Seg One DP
Min.Typ.Min.Typ.
 LD3651AR LD3651BRGaAlAsSuper Red640810810
 LD3651AD LD3651BDGaAlAsHi-Red64018251825
 LD3651AO LD3651BOGaAsPOrange6257979
 LD3651AY LD3651BYGaAsPYellow588810810
 LD3651AG LD3651BGGaPGreen5687979
 LD3651AUR LD3651BURAlGaInPUltra Red64030453045
 LD3651AUO LD3651BUOAlGaInPUltra Orange62545604560
 LD3651AUA LD3651BUAAlGaInPUltra Amber60530453045
 LD3651AUY LD3651BUYAlGaInPUltra Yellow59530453045
 LD3651AUG LD3651BUGAlGaInPUltra Green57330453045
 LD3651APG LD3651BPGInGaNPure Green525120300120300
 LD3651AUB LD3651BUBInGaNUltra Blue47030453045
 LD3651AUW LD3651BUWInGaNUltra White\100120100120
Unit:\\\nmmcdmcdmcdmcd



Electrical Characteristics & Absolute Maximum Ratings

ColorElectrical Characteristics[1]Absolute Maximum Ratings[1]
Forward Voltage@ IF=20mA                  Reverse
Current
VR=5V		Power DissipationDC Forward CurrentPeak Forward Current[2]
Typ.Max.
 Super RedPer Seg.1.82.2306025100
Per DP1.82.2306025100
 Hi-RedPer Seg.1.82.2306025100
Per DP1.82.2306025100
 OrangePer Seg.2.12.5308030100
Per DP2.12.5308030100
 YellowPer Seg.2.12.5308030100
Per DP2.12.5308030100
 GreenPer Seg.2.22.5308030100
Per DP2.22.5308030100
 Ultra RedPer Seg.1.92.6306030100
Per DP1.92.6306030100
 Ultra OrangePer Seg.22.6306530100
Per DP22.6306530100
 Ultra AmberPer Seg.22.6306530100
Per DP22.6306530100
 Ultra YellowPer Seg.22.6306530100
Per DP22.6306530100
 Ultra GreenPer Seg.2.12.6307530100
Per DP2.12.6307530100
 Pure GreenPer Seg.3.543011030100
Per DP3.543011030100
 Ultra BluePer Seg.3.543012030100
Per DP3.543012030100
 Ultra WhitePer Seg.3.543012030100
Per DP3.543012030100
 Unit:\VVuAmWmAmA

Notes:
1. At Ta = 25 °C.
2. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse.

How we produce our LED products?
Factory view:


Prod Model: LD3651A/B
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe

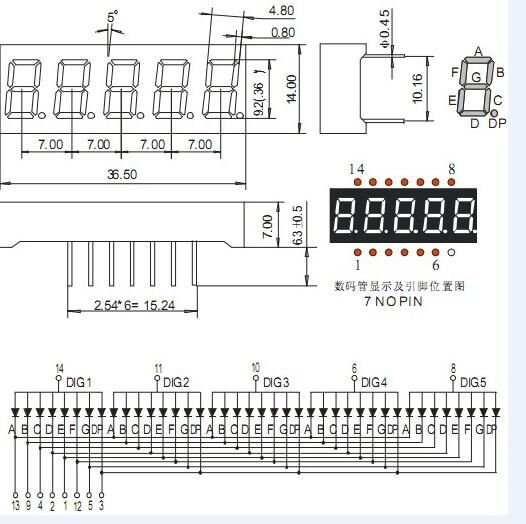

Outline Dimensions: 36.5X14X7mm
Digit Height: 0.36 Inch(9.2mm)
Emitting Color: Red Color
Dp Number: 5PCS
Digit Number: 5 Digits
Chip Matrial: 4-Element
Tube Chip Color: Single Color
Scanning Mode: Static Scan
Display Type: Segment LED Display
Application: Meters and Instruments
Certification: Reach
Display Function: Numbers and Some Alphabets
LightKey Optoelectronics Ltd. Is a big LED manufacturer, which covers an area of 40, 000 square meters, with approximately 390 production workers, and more than 50 R&D people. It has more than 10 advanced automatic production lines including die attaching, wire bonding, taping and casting. LightKey is also equipped with advanced sorting, testing, and analyzing instruments as well as other technical R&D equipments. We focus on the quality since our estabilishment. Is a manufacturer specialized in LED products especially LED components. Our main products are LED displays: 7 segment LED display, 14 and 16 segment LED display, LED DOT matrix, LED bargraph, &LED lightbar and so on: Lamp type LEDs: White LED, signboard oval LED, standard LED, high-brightness LED, traffic LED, IR LED, photodiode silicon, high power LED, super flux LED, & SMD LED and LED applications. Our company is managed according to ISO9001: 2008. Our LED products have RoHS and REACH compliance.
