Features
Ø 76 mm (3 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Selection Guide

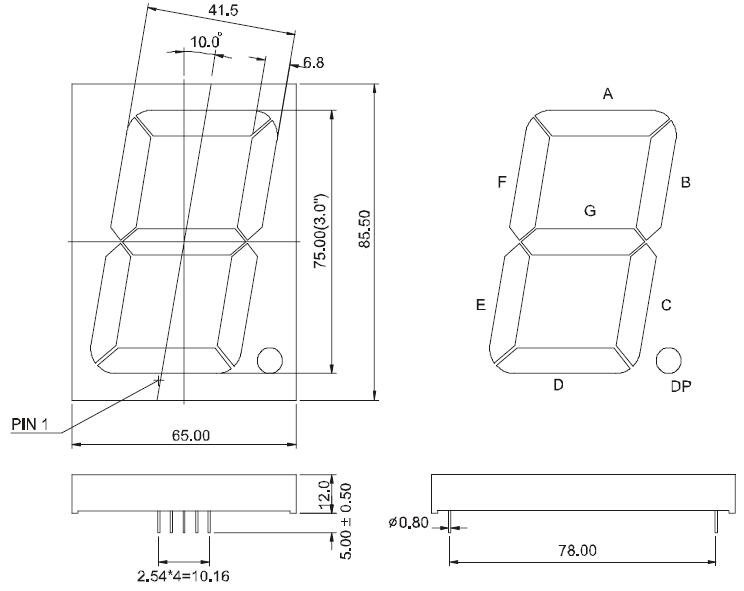

| Single Digit 7 Segment LED Display, Digit Height: 75.00mm(3.00inch), External Dimensions: 65.00x85.50x12.00mm (L x W x H ) |
| Part No. | Chip | Iv@IF=20mA | Iv@IF=20mA |
| CC | CA | Material | Color | WLD | One Seg | One DP |
| Min. | Typ. | Min. | Typ. |
| LD30012IR | LD30012JR | GaAlAs | Super Red | 640 | 36 | 45 | 12 | 15 |
| LD30012ID | LD30012JD | GaAlAs | Hi-Red | 640 | 81 | 112.5 | 27 | 37.5 |
| LD30012IO | LD30012JO | GaAsP | Orange | 625 | 31.5 | 40.5 | 10.5 | 13.5 |
| LD30012IY | LD30012JY | GaAsP | Yellow | 588 | 36 | 45 | 12 | 15 |
| LD30012IG | LD30012JG | GaP | Green | 568 | 31.5 | 40.5 | 10.5 | 13.5 |
| LD30012IUR | LD30012JUR | AlGaInP | Ultra Red | 640 | 135 | 202.5 | 45 | 67.5 |
| LD30012IUO | LD30012JUO | AlGaInP | Ultra Orange | 625 | 202.5 | 270 | 67.5 | 90 |
| LD30012IUA | LD30012JUA | AlGaInP | Ultra Amber | 605 | 135 | 202.5 | 45 | 67.5 |
| LD30012IUY | LD30012JUY | AlGaInP | Ultra Yellow | 595 | 135 | 202.5 | 45 | 67.5 |
| LD30012IUG | LD30012JUG | AlGaInP | Ultra Green | 573 | 135 | 202.5 | 45 | 67.5 |
| LD30012IPG | LD30012JPG | InGaN | Pure Green | 525 | 540 | 1350 | 180 | 450 |
| LD30012IUB | LD30012JUB | InGaN | Ultra Blue | 470 | 135 | 202.5 | 45 | 67.5 |
| LD30012IUW | LD30012JUW | SMD | Ultra White | \ | 450 | 540 | 150 | 180 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
