Features
Ø 126 mm (5 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
Selection Guide

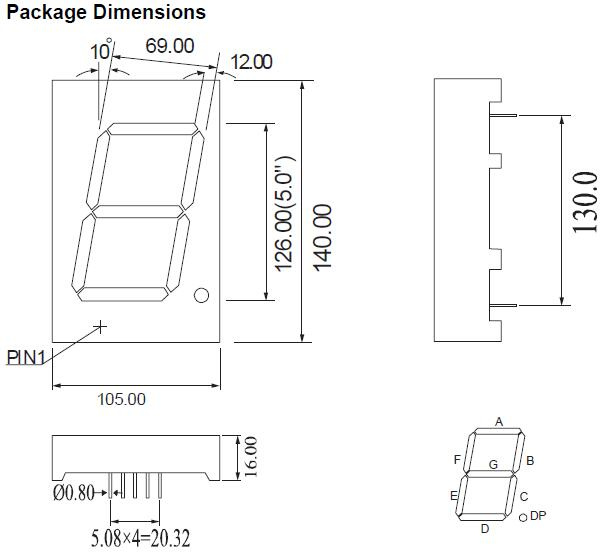

| Single Digit 7 Segment LED Display, Digit Height: 126.00mm(5.00inch), External Dimensions: 105.00x140.00x16.00mm (L x W x H ) |
| Part No. | Chip | Iv@IF=40mA | Iv@IF=20mA |
Common
Cathode | Common
Anode | Material | Color | WLD | One Seg | One DP |
| Min. | Typ. | Min. | Typ. |
| LD50011AR | LD50011BR | GaAlAs | Super Red | 640 | 84 | 105 | 18 | 22.5 |
| LD50011AD | LD50011BD | GaAlAs | Hi-Red | 640 | 189 | 262.5 | 40.5 | 56.25 |
| LD50011AO | LD50011BO | GaAsP | Orange | 625 | 73.5 | 94.5 | 15.75 | 20.25 |
| LD50011AY | LD50011BY | GaAsP | Yellow | 588 | 84 | 105 | 18 | 22.5 |
| LD50011AG | LD50011BG | GaP | Green | 568 | 73.5 | 94.5 | 15.75 | 20.25 |
| LD50011AUR | LD50011BUR | AlGaInP | Ultra Red | 640 | 315 | 472.5 | 67.5 | 101.25 |
| LD50011AUO | LD50011BUO | AlGaInP | Ultra Orange | 625 | 472.5 | 630 | 101.3 | 135 |
| LD50011AUA | LD50011BUA | AlGaInP | Ultra Amber | 605 | 315 | 472.5 | 67.5 | 101.25 |
| LD50011AUY | LD50011BUY | AlGaInP | Ultra Yellow | 595 | 315 | 472.5 | 67.5 | 101.25 |
| LD50011AUG | LD50011BUG | AlGaInP | Ultra Green | 573 | 315 | 472.5 | 67.5 | 101.25 |
| LD50011APG | LD50011BPG | InGaN | Pure Green | 525 | 1260 | 3150 | 270 | 675 |
| LD50011AUB | LD50011BUB | InGaN | Ultra Blue | 470 | 315 | 472.5 | 67.5 | 101.25 |
| LD50011AUW | LD50011BUW | SMD | Ultra White | \ | 1050 | 1260 | 225 | 270 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
