Features
Ø 76 mm (3 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Selection Guide

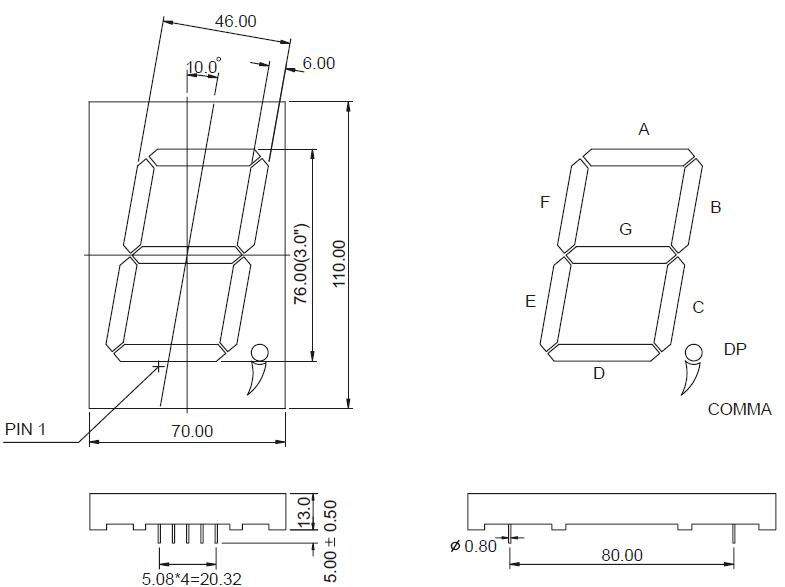

| Single Digit 7 Segment LED Display, Digit Height: 76mm(3inch), External Dimensions: 70.0x110.0x13.0mm (L x W x H ) |
| Part No. | Chip | Iv@IF=20mA | Iv@IF=20mA |
Common
Cathode | Common
Anode | Material | Color | WLD | One Seg | One DP |
| Min. | Typ. | Min. | Typ. |
| LD30011AR | LD30011BR | GaAlAs | Super Red | 640 | 36 | 45 | 12 | 15 |
| LD30011AD | LD30011BD | GaAlAs | Hi-Red | 640 | 81 | 112.5 | 27 | 37.5 |
| LD30011AO | LD30011BO | GaAsP | Orange | 625 | 31.5 | 40.5 | 10.5 | 13.5 |
| LD30011AY | LD30011BY | GaAsP | Yellow | 588 | 36 | 45 | 12 | 15 |
| LD30011AG | LD30011BG | GaP | Green | 568 | 31.5 | 40.5 | 10.5 | 13.5 |
| LD30011AUR | LD30011BUR | AlGaInP | Ultra Red | 640 | 135 | 202.5 | 45 | 67.5 |
| LD30011AUO | LD30011BUO | AlGaInP | Ultra Orange | 625 | 202.5 | 270 | 67.5 | 90 |
| LD30011AUA | LD30011BUA | AlGaInP | Ultra Amber | 605 | 135 | 202.5 | 45 | 67.5 |
| LD30011AUY | LD30011BUY | AlGaInP | Ultra Yellow | 595 | 135 | 202.5 | 45 | 67.5 |
| LD30011AUG | LD30011BUG | AlGaInP | Ultra Green | 573 | 135 | 202.5 | 45 | 67.5 |
| LD30011APG | LD30011BPG | InGaN | Pure Green | 525 | 540 | 1350 | 180 | 450 |
| LD30011AUB | LD30011BUB | InGaN | Ultra Blue | 470 | 135 | 202.5 | 45 | 67.5 |
| LD30011AUW | LD30011BUW | SMD | Ultra White | \ | 450 | 540 | 150 | 180 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
