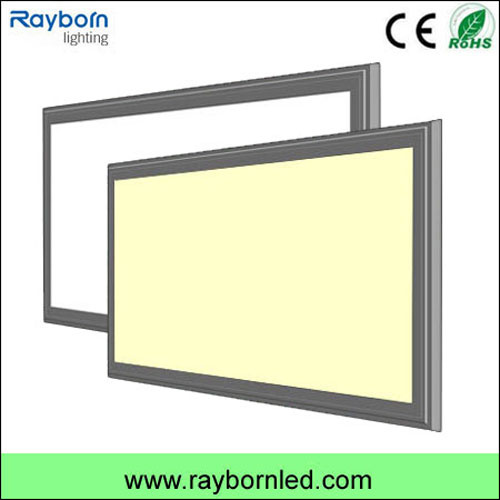

30W Surface Mounted 600X300mm LED Panel Light
Flat LED Panel Lightings/Flat LED Panel Lampt 20W
Item No.: RB-PL-6030B
Input Voltage: AC 85~265V/ 50-60
LED Power: 30W
LED Quantity: 150 PCS SMD2835
Power Factor: >0.90; Power Efficiency: >0.88
LED Luminous Flux Warm White, Nature White, Pure White
LED Panel lightingt Viewing Angle: 120 degree
Color Temperature Warm White 3000K~3500K
Nature White 4000K~4500K, Pure White 5500K~6500K
Luminous Flux: 2650LM(6000K)
Color Rendering Index: Ra≥ 80
| Dimension: 600mm * 600mm | Power: 30W |
| Input Voltage: AC85-265V | LED Type: 4014 High Lumin |
| LED quantity: 180pcs 0.2w/pcs 0.2w/pcs | View angle: 120°Viewing angle |
| CCT:3000/4000/5000/6000K | CRI: ≥80% |
| Luminous flux: 3250 lm | Power Factor: >0.9 |
| Life time: >50,000 hrs | Working Environment:Indoor |
| Housing Material: Aluminum Alloy+PC |
| Working Temperature: -20ºC ~ +50ºC |
| Storage Temperature: -20ºC ~ +60ºC |
LED panel light Applications:
*Hotels
*Conference / Meeting rooms
*Factories & Offices
*Commercial Purposes
*Residential / Institution Buildings
*Schools, Colleges & Universities
*Hospitals
*Places where energy saving and high color rendering index lighting are needed.
Embedded installation of LED panel light
1. Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling, pls do not force squeezing or through the ceiling
2. Please placed panel lamp handled with care, ensure the products shine with the best effect
3. Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds
Suspension installation of LED panel light
1. Pls put a soft mat on the floor before Installing corner fixing parts, lest scratches or damaged panel
2. Please placed panel lamp handled with care, ensure the products shine with the best effect
3. Lock the screw, pls not use greatly forcibly, lest crush the panel lamp
1. The first open four φ 5mm holes on the ceiling
2. Make the glue plug put into open good holes
3. Screw through fixed cap, locked in plug hole
FAQ
Q1.What is the main business of Rayborn Lighting ?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED panel light,led
tube light, led downlight and so on. Outdoor lighting focus on led floodlight, led street light,etc.
Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.
Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.
Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.
Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,UL,SAA Certification.
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
