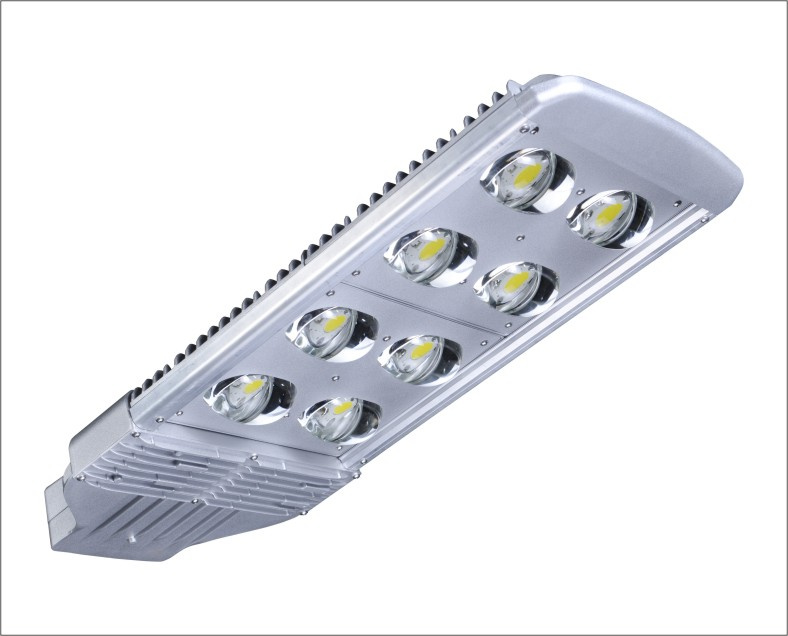

Model SV-LLD240W
Electrical Characteristics
No. of LED 8pcs. Bridgelux® Vero 18
LED Current 1050mA(Typ.)
Input Voltage & Frequency AC90-305V, 50-60Hz
AC Input Current ≤1.30A @110V | ≤0.60A @220V
System Power 240W±10%
Power Factor ≥0.9 (0.95 Typ.)
Photometrics & ChromaticityInitial Delivered Flux 34800lm(Typ.) CCT 5000K±300KCRI ≥70Light Distribution Pattern Type 2,Semi-CutoffAverage Beam Angle 100 deg. (Typ.)Lumen Maintenance@L70 >50,000hours3% THD ≤20Environmental Characteristics
IP Rating IP66 Operating Temperature -40°C to +55°C
Operating Humidity 10-95%RH
Storage Temperature -40°C to +70°C
Storage Humidity 10-95%RH Mechanical CharacteristicsOverall Dimensions 1180mm x 346mm x 107mmWeight 14.6 kgInstallation Accessories +5° Inclination Adjustment Kit10KV independent Thunder-proof component (Optional) OPTIONS:| model | 120W | 150W | 180W | 240W |
| LED chip | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 |
| Lamp Lumens | 17040lm | 22200lm | 25560lm | 34800lm |
| Input Voltage & Frequency | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| CCT | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K |
| System Power | 120W±10% | 150W±10% | 180W±10% | 240W±10% |
| Power Factor | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Weight | 9.3 kg | 12.3 kg | 12.3 kg | 14.6 kg |
| Overall Dimensions | 585mm x 346mm x 107mm | 728mm x 346mm x 107mm | 728mm x 346mm x 107mm | 890mm x 400mm x 180mm |
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley representative for more information.

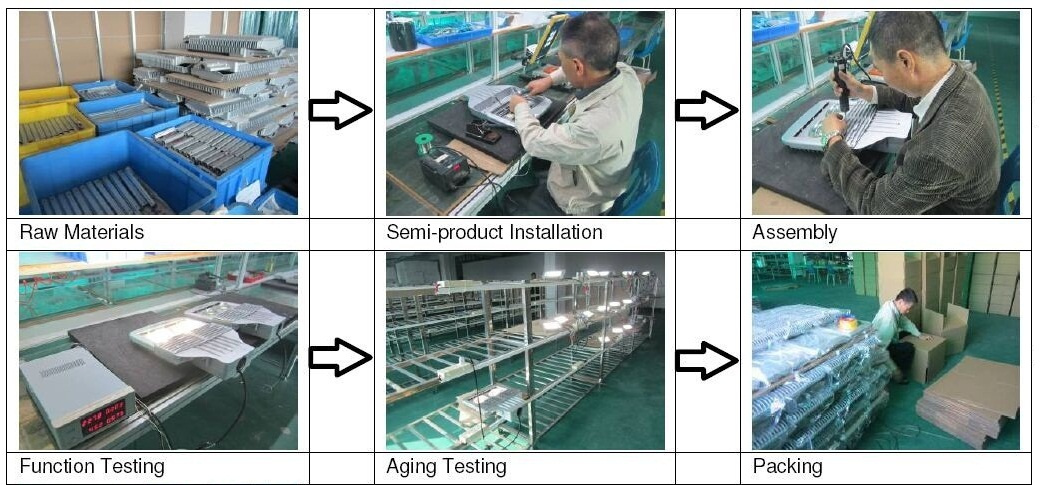

Work Flow:

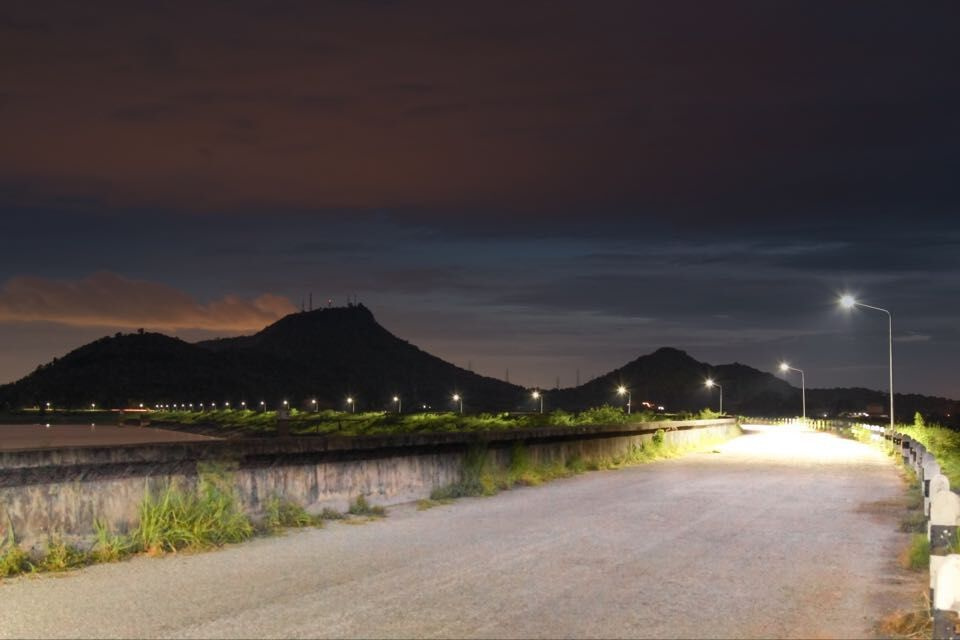

Project:
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.
We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.
The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.
You are welcome to contact us for more information.
Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
