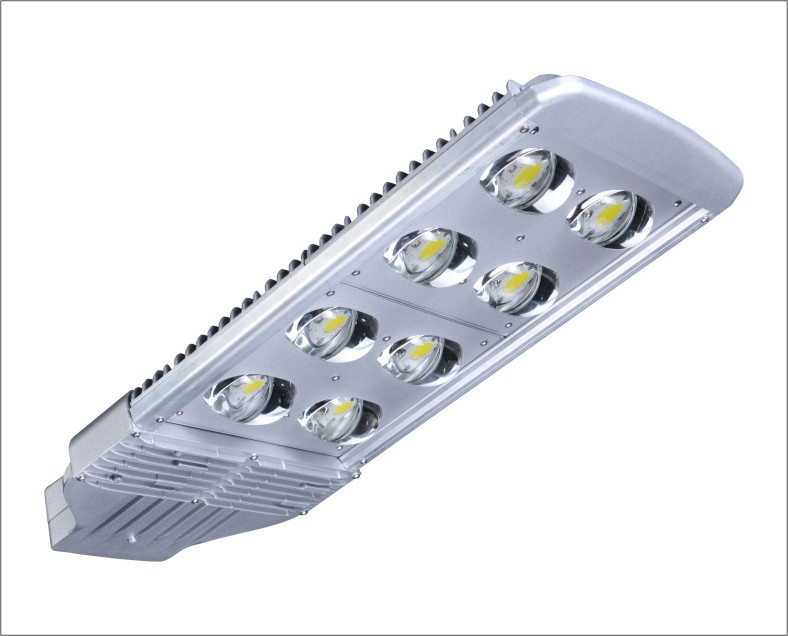

Model SV-LLD240W (High Pole)
Electrical Characteristics Photometrics & ChromaticityNo. of LED 8pcs. Bridgelux® Vero 18 Initial Delivered Flux 34800lm(Typ.)
LED Current 1050mA(Typ.) CCT 5000K±300K
Input Voltage & Frequency AC90-305V, 50-60Hz CRI ≥70
AC Input Current ≤1.30A @110V | ≤0.60A @220V Light Distribution Pattern Type V
System Power 240W±10% Average Beam Angle 100 deg. (Typ.)
Power Factor ≥0.9 (0.95 Typ.) Lumen Maintenance@L70 >50,000hours3
% THD ≤20
Environmental Characteristics Mechanical CharacteristicsIP Rating IP66 Overall Dimensions 1180 x 346 x 107mm
Operating Temperature -40°C to +55°C Weight 14.6 kg
Operating Humidity 10-95%RH Installation Accessories +5° Inclination Adjustment Kit
Storage Temperature -40°C to +70°C
Storage Humidity 10-95%RH 10KV independent Thunder-proof component (Optional)
OPTIONS:| model | 120W | 150W | 180W | 240W |
| LED chip | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 |
| Lamp Lumens | 17040lm | 22200lm | 25560lm | 34800lm |
| Input Voltage & Frequency | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| CCT | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K |
| System Power | 120W±10% | 150W±10% | 180W±10% | 240W±10% |
| Power Factor | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Weight | 9.3 kg | 12.3 kg | 12.3 kg | 14.6 kg |
| Overall Dimensions | 585mm x 346mm x 107mm | 728mm x 346mm x 107mm | 728mm x 346mm x 107mm | 890mm x 400mm x 180mm |
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.
According with North America, Europe, Asia, China and other city road light standards of professional LED lights, suitable for different pole height, road width and different installation methods;
Several types of light lens, according with different road light needs, makes it suitable perfectly for any road light environment, energy saving, enhance the use value of street light.
Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking
Features:1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;
2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;
3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;
4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;
5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;
6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;
7. IP66 protection rating against dust and water performance stability, extend street light life;
8. Safety and Environmental standards recognition, 5 years quality warranty;

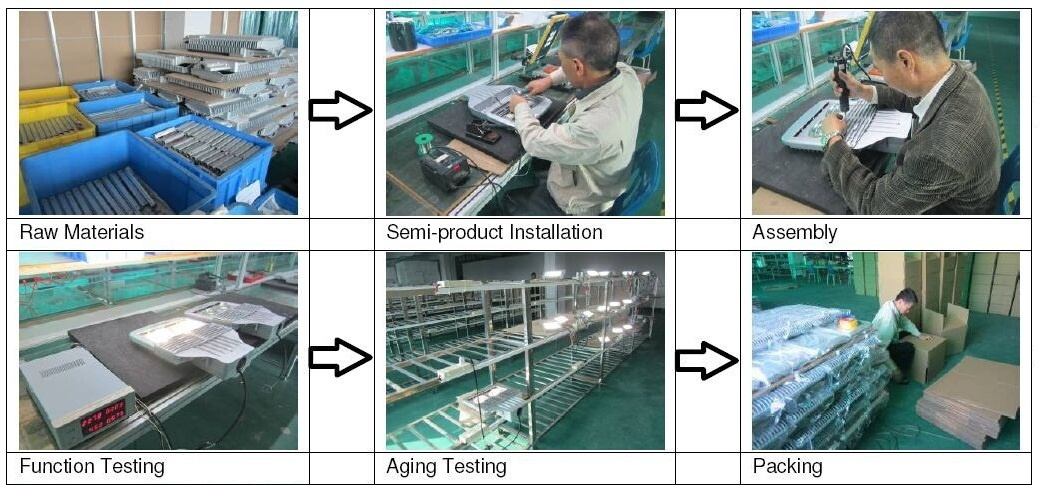

Work Flow:

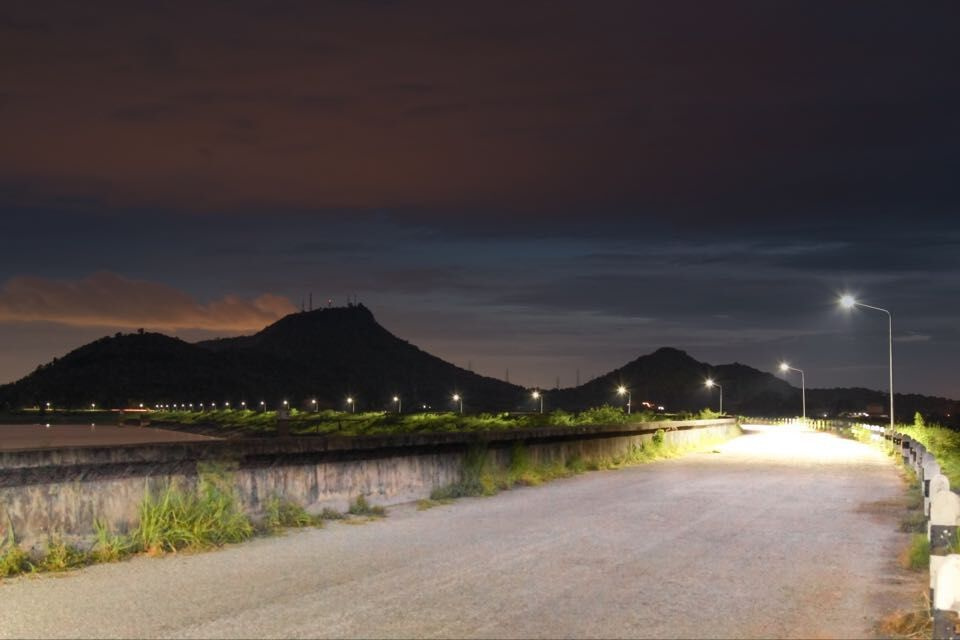

Project:
