Accord with North America, Europe, Asia, China and other city street light luminaire standards of professional LED lights,, suitable for different pole heights, road width and different installation methods;
Several types of light lens,accord with different roadway lighting needs,makes it suitable perfectly for any street light luminaire environment, energy saving, enhance the use value of street light luminaire.
Application:Freeway,Expressway,Major Roadway.
model | 40W | 60W | 80W | 100W | 120W | 150W | 180W | 240W |
| LED chip | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 |
| Lamp Lumens | 6120lm | 8520lm | 12240lm | 14500lm | 17040lm | 22200lm | 25560lm | 34800lm |
| Input Voltage & Frequency | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| CCT | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K |
| System Power | 40W±10% | 60W±10% | 80W±10% | 100W±10% | 120W±10% | 150W±10% | 180W±10% | 240W±10% |
| Power Factor | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Weight | 7.1 kg | 7.1 kg | 9.3 kg | 9.3 kg | 9.3 kg | 12.3 kg | 12.3 kg | 14.6 kg |
Features
Constructed of die cast Aluminum alloy body, solid structure,corrosion resistance on the surface, suitable for different climate and environment, safety and durability;
Adopted original Bridgelux® LED array .low glare,lamps light efficiency more than 125lm/W2 ;
Built-in high efficiency driver, constant power output, independent of voltage fluctuations, lights power efficiency high; Natural transfer heat sink design,fast heat conduction,low temperature rise,enables maximum LED life span lumen maintenance more than 50,000 hours;
Glass optical lens, high transmittance, uniform light output,weather-resistant, Not easy to aging, low light decay;
Stainless steel fixation components,optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;
IP66 protection rating against dust and water performance stability,extend lastreet light luminaire life;
Safety and Environmental standards recognition, 5 years limited warranty;

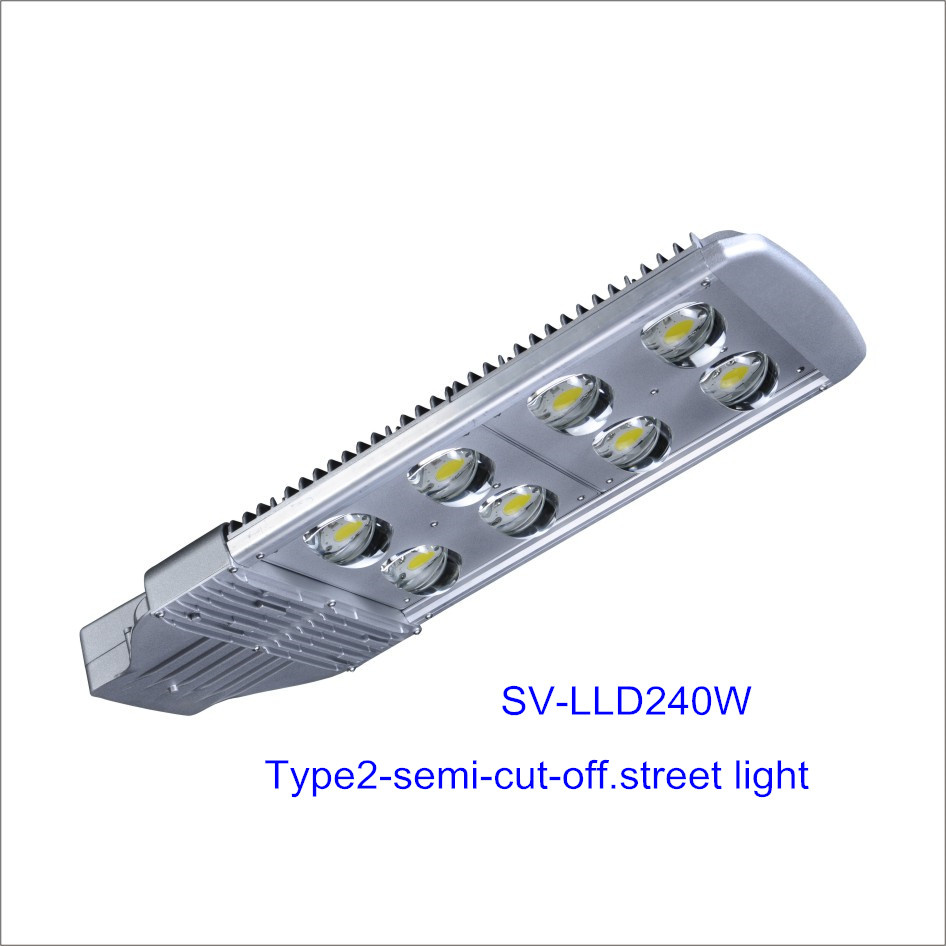

Model SV-LLD240W
Electrical Characteristics
No. of LED 8pcs. Bridgelux® Vero 18
LED Current 1050mA(Typ.)
Input Voltage & Frequency AC90-305V, 50-60Hz
AC Input Current ≤1.30A @110V | ≤0.60A @220V
System Power 240W±10%
Power Factor ≥0.9 (0.95 Typ.)
Photometrics & Chromaticity
Initial Delivered Flux 34800lm(Typ.)
CCT 5000K±300K
CRI ≥70
Light Distribution Pattern Type 2,Semi-Cutoff
Average Beam Angle 100 deg. (Typ.)
Lumen Maintenance@L70 >50,000hours3
% THD ≤20
Environmental Characteristics
IP Rating IP66
Operating Temperature -40°C to +55°C
Operating Humidity 10-95%RH
Storage Temperature -40°C to +70°C
Storage Humidity 10-95%RH
Mechanical Characteristics
Overall Dimensions 1180mm x 346mm x 107mm
Weight 14.6 kg
Installation Accessories +5° Inclination Adjustment Kit
10KV independent Thunder-proof component (Optional)
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley representative for more information.
