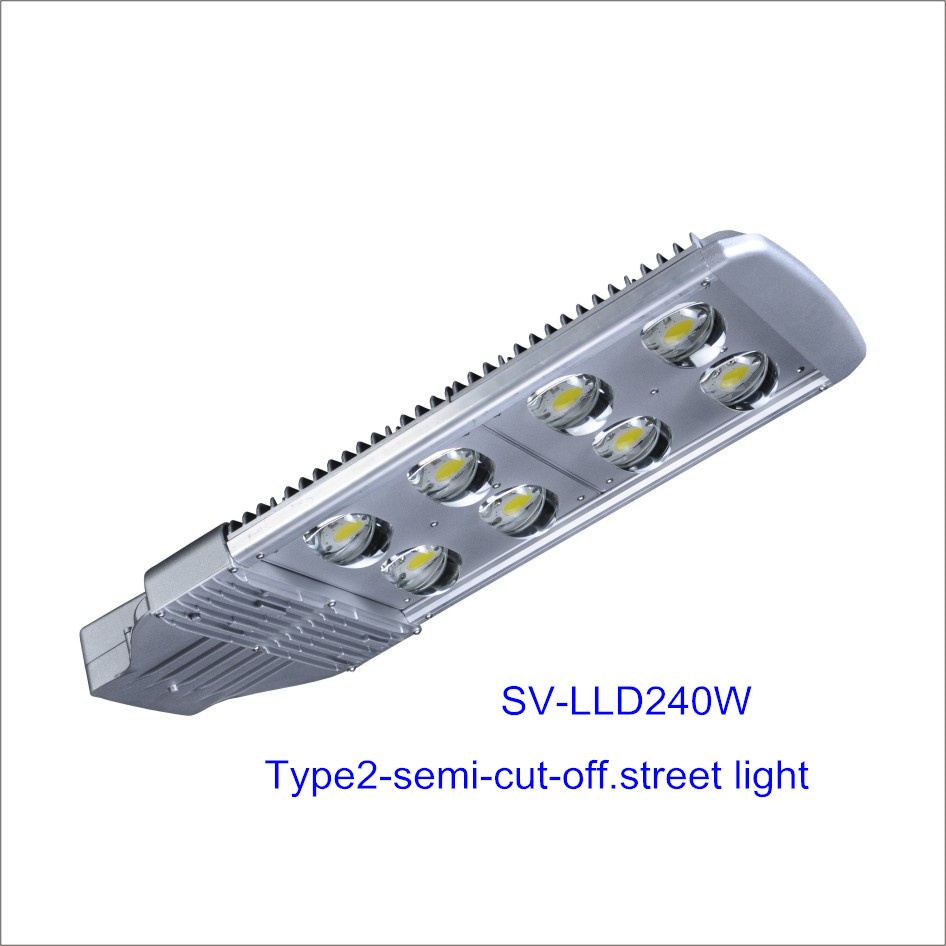

Model SV-LLD240W
Electrical Characteristics Photometrics & Chromaticity
No. of LED 8pcs. Bridgelux® Vero 18 Initial Delivered Flux 34800lm(Typ.)
LED Current 1050mA(Typ.) CCT 5000K±300K
Input Voltage & Frequency AC90-305V, 50-60Hz CRI ≥70
AC Input Current ≤1.30A @110V | ≤0.60A @220V
System Power 240W±10% Average Beam Angle 100 deg. (Typ.)
Power Factor ≥0.9 (0.95 Typ.) Lumen Maintenance>50,000hours3
% THD ≤20
Environmental Characteristics Mechanical Characteristics
IP Rating IP66 Overall Dimensions 1180 x 346 x 107mm
Operating Temperature -40°C to +55°C Weight 14.6 kg
Operating Humidity 10-95%RH Installation Accessories +5° Inclination Adjustment Kit
Storage Temperature -40°C to +70°C
Storage Humidity 10-95%RH 10KV independent Thunder-proof component (Optional)
OPTIONS
| model | 120W | 150W | 180W | 240W |
| LED chip | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 |
| Lamp Lumens | 17040lm | 22200lm | 25560lm | 34800lm |
| Input Voltage & Frequency | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| CCT | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K |
| System Power | 120W±10% | 150W±10% | 180W±10% | 240W±10% |
| Power Factor | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Weight | 9.3 kg | 12.3 kg | 12.3 kg | 14.6 kg |
| Overall Dimensions | 585mm x 346mm x 107mm | 728mm x 346mm x 107mm | 728mm x 346mm x 107mm | 890mm x 400mm x 180mm |
According with North America, Europe, Asia, China and other city outdoor light standards of professional LED lights,, suitable for different pole height, road width and different installation methods;
Several types of light lens, according with different street light needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of outdoor light.
Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking
Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;
2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;
3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;
4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;
5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;
6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;
7. IP66 protection rating against dust and water performance stability, extend outdoor light life;
8. Safety and Environmental standards recognition, 5 years quality warranty;
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.
