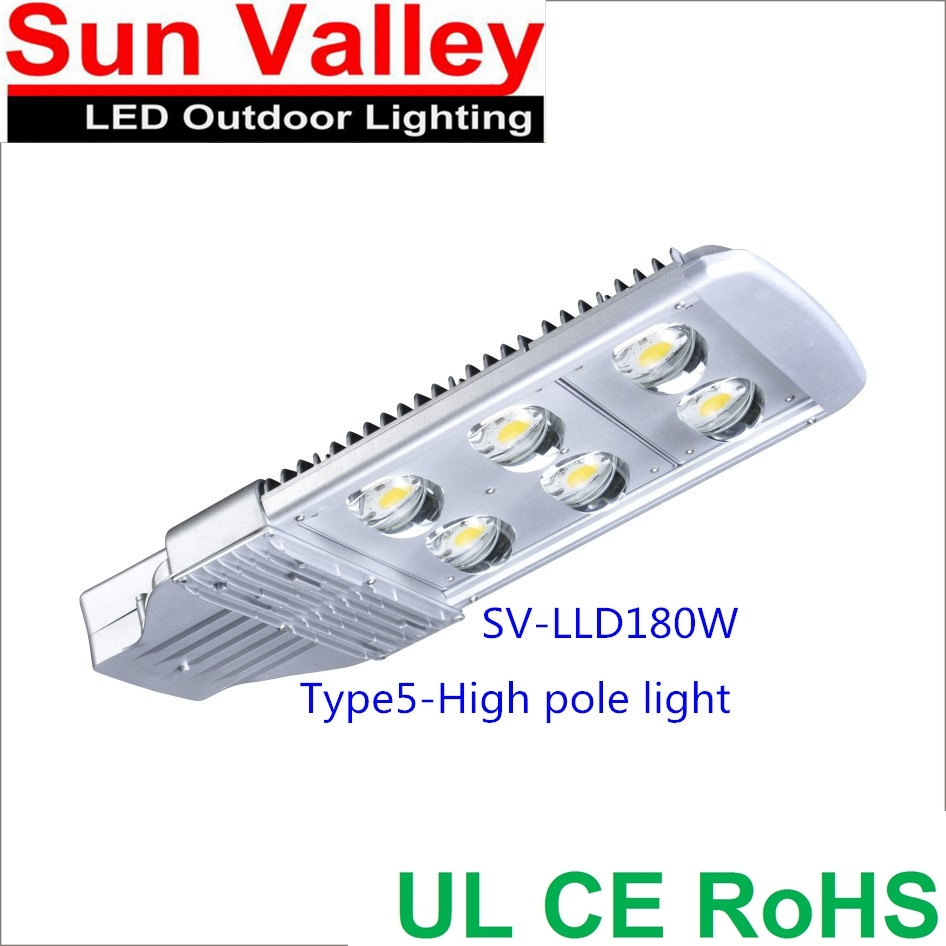

180W High Power LED Street Light

Model  SV-LLD180W

Electrical Characteristics
No. of LED        6pcs. Bridgelux® Vero 18
LED Current     1050mA
Input Voltage & Frequency      AC90-305V, 50-60Hz
AC Input Current      ≤1.30A @110V | ≤0.904A @220V
System Power         180W±10%
Power Factor            ≥0.9 (0.95)
% THD      ≤20

Photometrics & Chromaticity
Total Rated Lamp Lumens  25560lm
CCT       5000K±300K
CRI         ≥70
Light Distribution Pattern  Type 5
Field Angle                       H150.7 V150.5
Lumen Maintenance      >50,000hours

Environmental Characteristics
IP Rating              IP66
Operating Temperature    -40°C to +55°C
Operating Humidity           10-95%RH
Storage Temperature       -40°C to +70°C
Storage Humidity              10-95%RH

Mechanical Characteristics
Overall Dimensions          728mm x 346mm x 107mm
Weight                                  12.3 kg
Installation Accessories   +5° Inclination Adjustment Kit
10KV independent Thunder-proof component (Optional)

model	120W	150W	180W	240W
LED chip	Bridgelux® Vero 18	Bridgelux® Vero 18	Bridgelux® Vero 18	Bridgelux® Vero 18
Lamp Lumens	17040lm	22200lm	25560lm	34800lm
Input Voltage & Frequency	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz
CCT	5000K±300K	5000K±300K	5000K±300K	5000K±300K
System Power	120W±10%	150W±10%	180W±10%	240W±10%
Power Factor	≥0.9 (0.95 )	≥0.9 (0.95 )	≥0.9 (0.95 )	≥0.9 (0.95 )
Operating Temperature	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C
Weight	9.3 kg	12.3 kg	12.3 kg	14.6 kg
Overall Dimensions	585mm x 346mm x 107mm	728mm x 346mm x 107mm	728mm x 346mm x 107mm	890mm x 400mm x 180mm

According with North America, Europe, Asia, China and other city street light standards of professional LED lights,, suitable for different pole height, road width and different installation methods;

Several types of light lens, according with different street light needs, make it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of light.

Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking


Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;

2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;

3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;

4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;

5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;

6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;

7. IP66 protection rating against dust and water performance stability, extend street light life;

8. Safety and Environmental standards recognition, 5 years quality warranty

3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.
