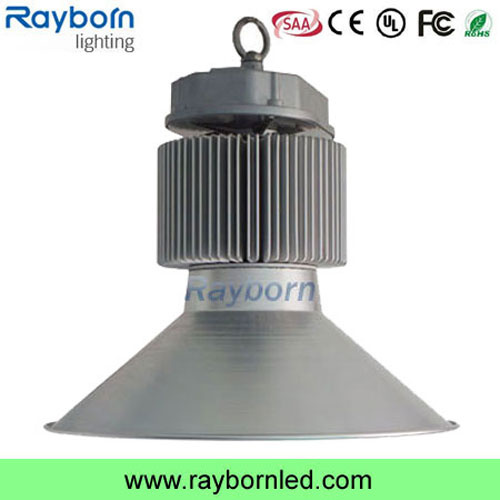

180W CREE LED Light High Bay Bulb with Meanwell Driver

180W CREE LED Light High Bay Bulb with Meanwell Driver

Features:

Item No.: RB-HB-415CR-180W
Input Voltage: AC 85~265V 50-60HZ
Power Factor: >0.98; Power Efficiency: >0.90
LED Luminous Efficiency 100-110lm/W
LED High Bay Light Power Consumption: 180W
System Power Consumption: 192W
ED Chip: Bridgelux/CREE
Lamp Beam Angle: 120/90/45 degrees
Color Index: Ra≥ 78
Color Temperature: 2700-7000K
Operating temperature: -40~50
Protection Class: IP54
Lumen: 5000LM
Useful Life: ≥ 50000 hours
Weight: N. W. 8.0KG
Lamp Body Material: Aluminum 6063
Color of Housing: Black or Silver

180W LED Industrial Light Main Technical Parameters
Item No.:		RB-HB-515-180W
Input Voltage:		AC 100-277V
Freqency Range:		50Hz~60Hz
LED Chip:		Bridgelux 45 mil/Cree
Power Driver:		Mean Well
Power Factor:		>0.98
Power Efficiency:		>91%
LED Power		180W
LED QTY:		1pc*180W
LED Working Voltage:		DC 42~48V
System Consumption:		192W
LED Luminous Flux	Warm White	17500LM
	Pure White	18050LM
	Cool White	18050LM
Viewing Angle:		120degree
MaximumIlluminance	Height 3M	741LUX
	Height 4M	417LUX
	Height 5M	267LUX
Illuminance Area	Height 3M	Dia.8.0 M  points visible
	Height 4M	Dia.10.7M points visible
	Height 5M	Dia.13.4 M points visible
Illuminance Uniformity:		>0.6
Color Temperature	Warm White	3000K~3500K
	Pure White	5000K~5500K
	Cool White	6000K~7000K
Color Rendering Index		Ra>78
Light Distribution:		LED points visible
LED Junction Temperature:		≤115degree
Working Temperature:		-40degree~50degree
IP Grade:		IP54
Working Life-span:		50000 H
Power Line:		1.0 mm three line
Connect Wire	Brown	L
	Blue	N
	Yellow / Green	G
Heatsink		high thermalconductive materials
		phase-change heat dissipation tech
color of the lamp shell		Black and silver is available
Certificate		CE /UL/ROHS
Net Weight:		8.5KG

CREE 180W Led High bay light Features:
1. Using single powerful LED(30-250W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.

2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.

3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.

4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.

5. High color rendering, meet the requirement of different environment, improve working efficiency.

6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury


180W Bay Light Competitive Advantage:

1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan


High Bay Lighting Applications:
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.


Trade terms
1.  Payment: T/T,L/C and paypal are available.
2.  Lead time: Sample Order:5-7 working days. Bulk Order:10-15working days.
3.Package: 1pcs-carton;4 pcs /carton; 8 pcs /carton or as your custom package.
4.  Shipping freights are quoted under your requests.
5.  Shipping port: Shenzhen port
6.  Discounts are offered based on order quantities.


Varies services can be provided to  you.
1.Your inquiry related to our products or prices will be replied in 24hours.
2.OEM or ODM service is welcome.
3.Professional service from well-trained and experienced staffs is customers' best choice to secure good communication, on time delivery, reliable warranty etc.
4.For all your inquires about us or our products, we will reply you in details within 24 hours.
5.Convenient and smooth communication.
6.Detailed and professional specifications and guidances of products.
7.Your requirements and complaints are highly respected.
8.Lighting solutions by professional technician.
9.Fast &Cheap Delivery.
10.Free Light study.
11.Various Certificates.
12.Product Update.

FAQ
Q1.What is the main business of Rayborn Lighting ?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED panel light,led
tube light, led downlight and so on. Outdoor lighting focus on led floodlight, led street light,etc.

Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.

Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.

Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.

Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,UL,SAA Certification.
