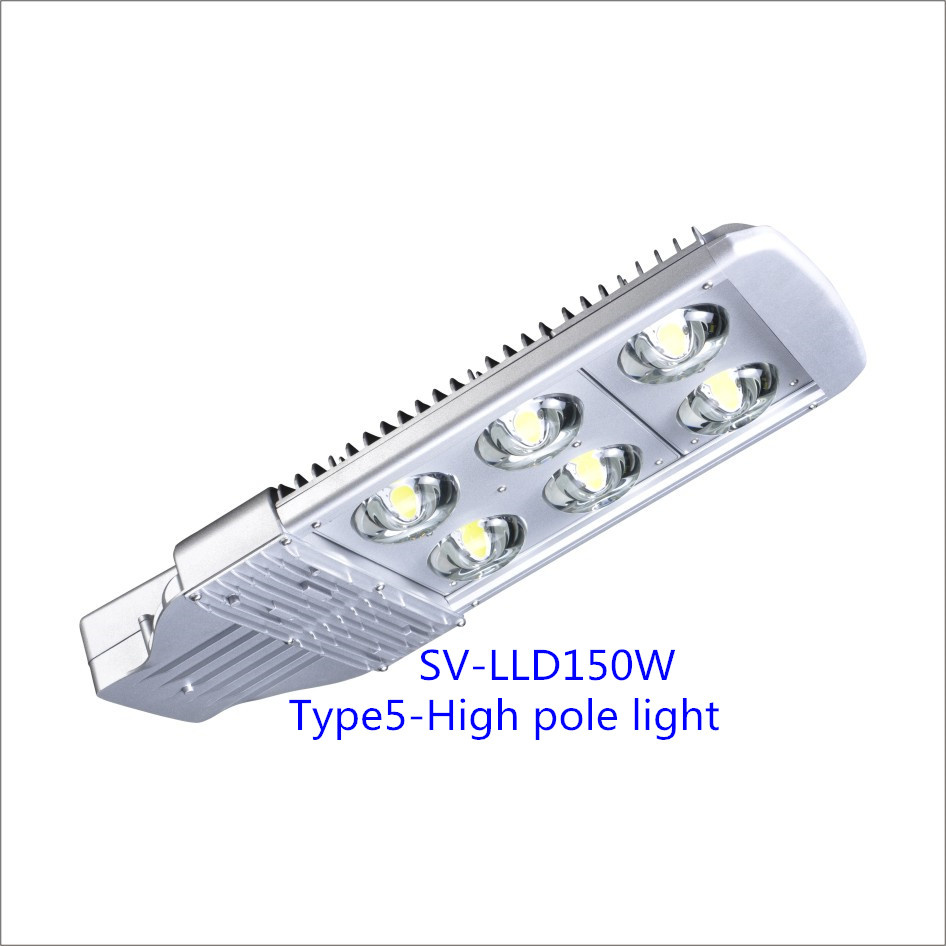

Model SV-LLD150W
Electrical Characteristics Photometrics & Chromaticity
No. of LED 6pcs. Bridgelux® Vero 18 Total Rated Lamp Lumens 22200lm
LED Current 860mA CCT 5000K±300K
Input Voltage & Frequency AC90-305V, 50-60Hz CRI ≥70
AC Input Current ≤1.30A @110V | ≤0.737A @220V Light Distribution Pattern Type 5
System Power 150W±10% Field Angle H150.5 V150.0
Power Factor ≥0.9 (0.95 ) Lumen Maintenance >50,000hours
% THD ≤20
Environmental Characteristics Mechanical Characteristics
IP Rating IP66 Overall Dimensions 728 x 346 x 107mm
Operating Temperature -40°C to +55°C Weight 12.3 kg
Operating Humidity 10-95%RH Installation Accessories +5° Inclination Adjustment Kit
Storage Temperature -40°C to +70°C 10KV independent Thunder-proof component
Storage Humidity 10-95%RH (Optional)

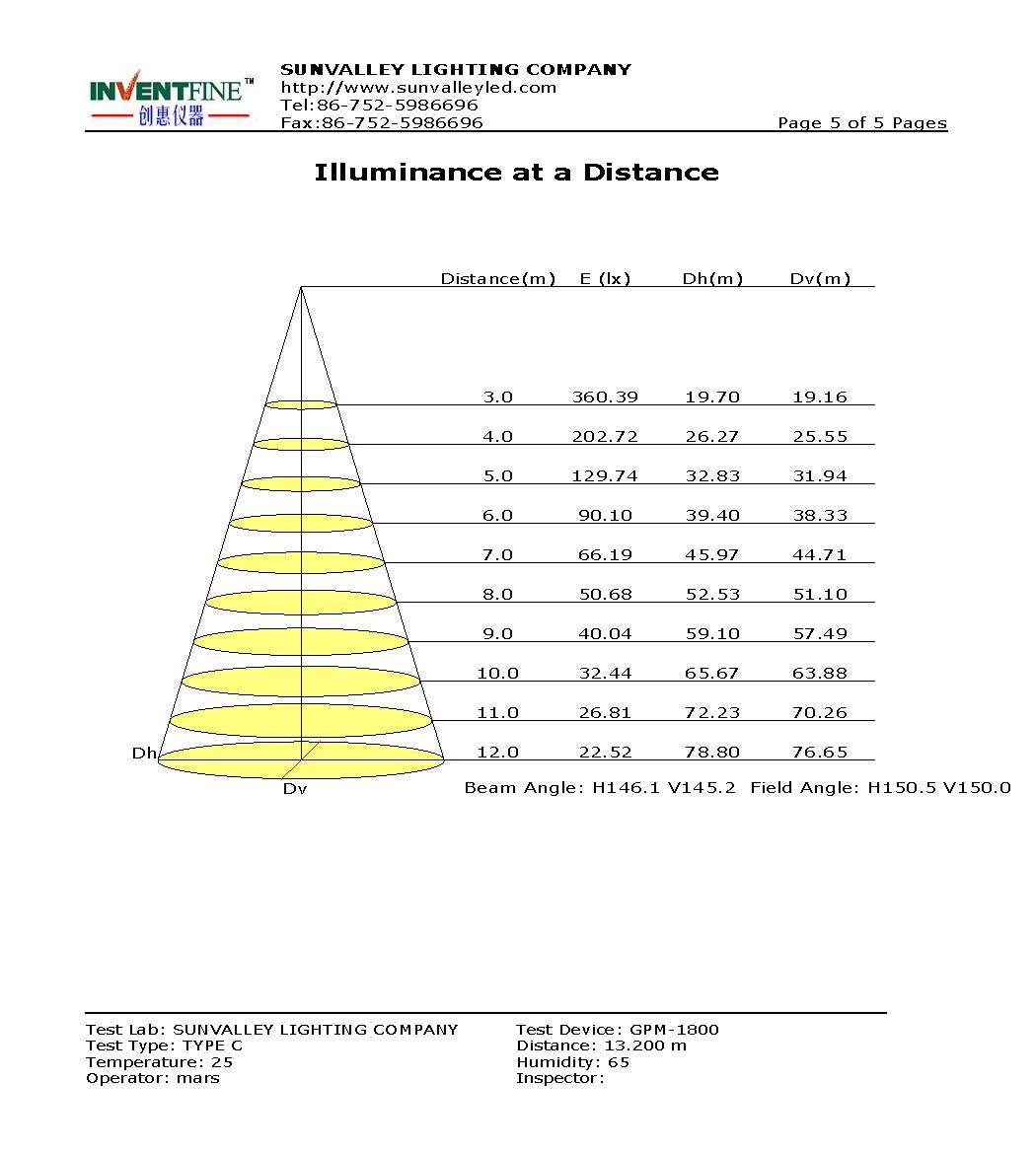

Test Report:
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.
OPTIONS:| model | 100W | 120W | 150W | 180W | 240W |
| LED chip | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 | Bridgelux® Vero 18 |
| Lamp Lumens | 14500lm | 17040lm | 22200lm | 25560lm | 34800lm |
| Input Voltage & Frequency | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| CCT | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K | 5000K±300K |
| System Power | 100W±10% | 120W±10% | 150W±10% | 180W±10% | 240W±10% |
| Power Factor | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) | ≥0.9 (0.95 ) |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Weight | 9.3 kg | 9.3 kg | 12.3 kg | 12.3 kg | 14.6 kg |
| Overall Dimensions | 585mm x 346mm x 107mm | 585mm x 346mm x 107mm | 728mm x 346mm x 107mm | 728mm x 346mm x 107mm | 890mm x 400mm x 180mm |
According with North America, Europe, Asia, China and other city street lamp standards of professional LED lights,, suitable for different pole height, road width and different installation methods;
Several types of light lens, according with different street lamp needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of led street light.
Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking
Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;
2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;
3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;
4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;
5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;
6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;
7. IP66 protection rating against dust and water performance stability, extend led street light life;
8. Safety and Environmental standards recognition, 5 years quality warranty;

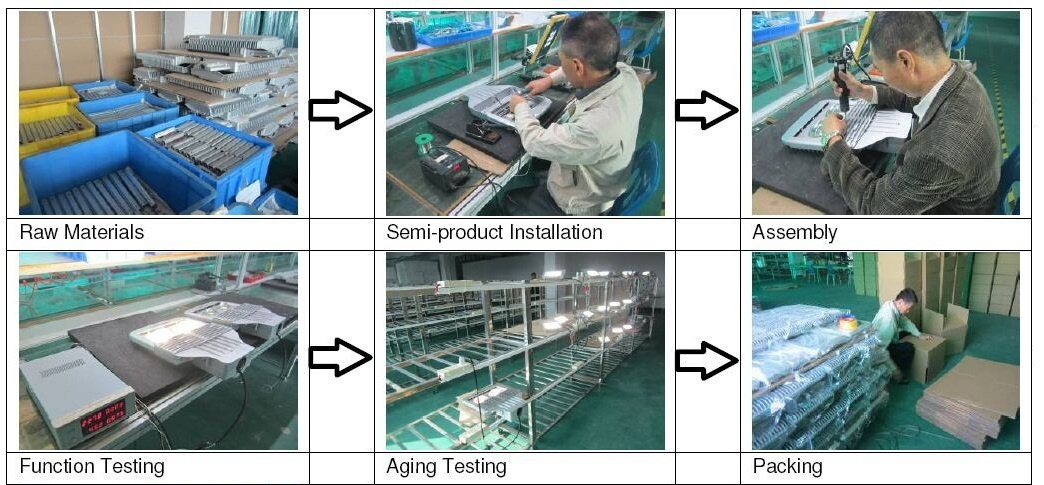

Work Flow
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.
We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.
The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.
You are welcome to contact us for more information.
Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
