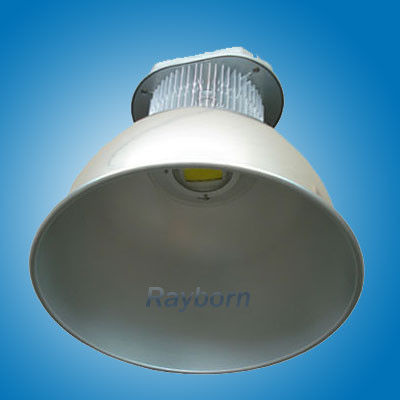

IP44 150W 5000LM High Bay LED Lighting, 45 Degrees Industrial Led Lamp RB-HB-150W
Product Specifications:
Features: LED Industrial Lighting/High Bay Ligh Lamp (30W-250W)
Item No.: RB-HB-415-150W
Input Voltage: AC 85~265V 50-60HZ
Power Factor: >0.98; Power Efficiency: >0.90
LED Luminous Efficiency 100-110lm/W
Lamp Rated Total Luminous Flux: 13800LM
LED High Bay Light Power Consumption: 150W
System Power Consumption: 164W
LED Chip: Bridgelux/CREE
Lamp Beam Angle: 45 degrees
Color Index: Ra≥ 78
Color Temperature: 2700-7000K
Protection Class: IP44
Lumen: 5000LM
Useful Life: ≥ 50000 hours
Weight: N. W. 8.5KG
Lamp Body Material: Aluminum 6063
Color of Housing: Black or Silver
Led High bay light Features:
1. Using single powerful LED(30-250W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.
4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.
5. High color rendering, meet the requirement of different environment, improve working efficiency.
6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury
Applications:
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
High Bay Light Competitive Advantage:
1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
|
120W LED Industrial Light Main Technical Parameters |
|
Item No.: |
RB-HB-415-120W |
|
Input Voltage: |
AC 100~240V |
|
Freqency Range: |
50Hz~60Hz |
|
Led Chip: |
Bridgelux 45 mil |
|
Power Factor: |
>0.97 |
|
Power Efficiency: |
>90% |
|
LED Power |
120W |
|
LED QTY: |
1pc*120W |
|
LED Working Voltage: |
DC 30~36V |
|
System Consumption: |
126 W |
|
LED Luminous Flux |
Warm White |
10200LM |
|
Pure White |
12500LM |
|
Cool White |
12500LM |
|
Viewing Angle: |
45degree |
|
Center Illuminance |
Height 3M |
1021LUX |
|
Height 4M |
574LUX |
|
Height 5M |
367LUX |
|
Illuminance Area |
Height 3M |
Dia.2.6 M points visible |
|
Height 4M |
Dia.3.4 M points visible |
|
Height 5M |
Dia.4.2 M points visible |
|
Illuminance Uniformity: |
>0.6 |
|
Color Temperature |
Warm White |
2700K~3500K |
|
Pure White |
5000K~5500K |
|
Cool White |
6000K~7000K |
|
Color Rendering Index |
Ra>78 |
|
Light Distribution: |
LED points visible |
|
Light Design: |
LED+ |
|
LED Junction Temperature: |
≤115 |
|
Working Temperature: |
–40~50 |
|
IP Grade: |
IP54 |
|
Working Life-span: |
50000 H |
|
Power Line: |
1.0 mthree line |
|
Connect Wire |
Brown |
L |
|
Blue |
N |
|
Yellow / Green |
G |
|
The color of the lamp shell |
Black and silver is available |
|
Certificate |
CE /ROHS |
|
Net Weight: |
8.5g |
