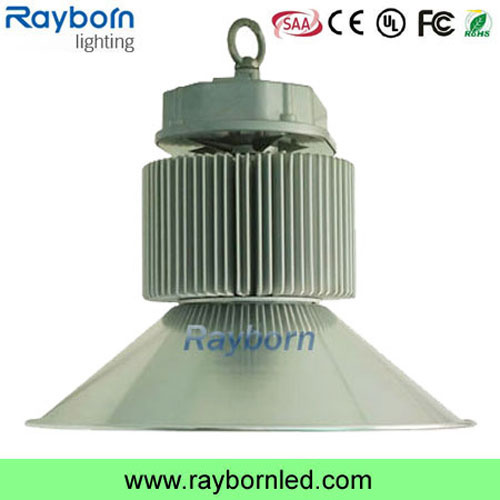

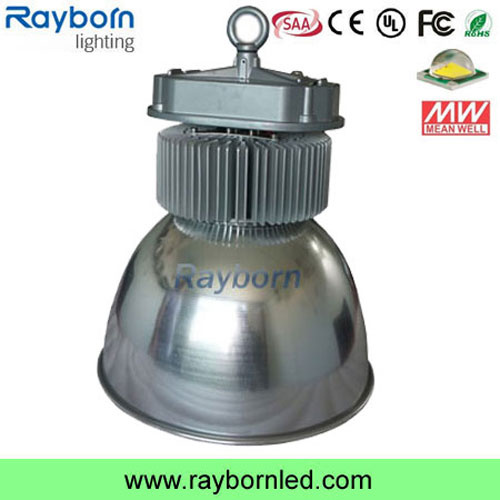

150W CREE Chip High Bay LED Lighting/Factory LED Hi Bay Light
| Price: |
US $ 125/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal |
150W CREE Chip High Bay LED Lighting/Factory LED Hi Bay lightProduct Specification Sheet:| Item No.: | RB-HB-515-150W |
| Input Voltage: | AC 100~277V |
| Freqency Range: | 50Hz~60Hz |
| LED Chip | Bridgelux 45 mil |
| Power Driver: | Mean Well |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 154W |
| LED QTY: | 1pc*150W |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 155W |
| LED Luminous Flux | Warm White | 14350LM |
| Pure White | 15100LM |
| Cool White | 15300LM |
| Viewing Angle: | 45degree |
| Centre Illuminance | Height 3M | 1746LUX |
| Height 4M | 982LUX |
| Height 5M | 629LUX |
| Illuminance Area | Height 3M | Dia.3.5 M Round spot |
| Height 4M | Dia.4.6 M Round spot |
| Height 5M | Dia.5.8M Round spot |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 2700K~3500K |
| Pure White | 4000K~5500K |
| Cool White | 6000K~7000K |
| Color Rendering Index | Ra>78 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -40ºC~50ºC |
| IP Grade: | IP54/IP65 |
| Working Life-span: | 50000 H |
| Power Line: | 1.0 mthree line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| Heatsink | Integration of Thermal conductivity Heat dissipation phase change technology |
|
| The color of the lamp shell | Black and silver is available |
| Certificate | CE /ROHS/UL |
| Net Weight: | 8.0KG |
Product Samples:

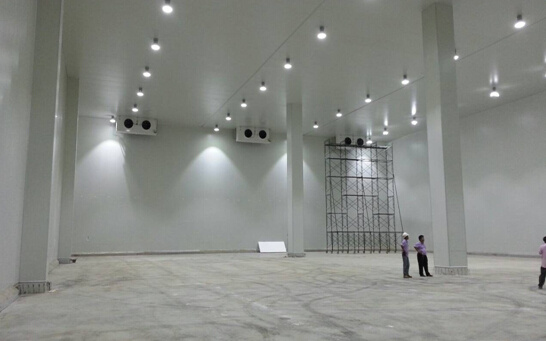

LED High Bay Light Applications:
LED High Bay Lights widely used for Indoor and outdoor places:
Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
Our Company:
Quality is our culture:
1) Defective rate control around 1‰ , PF>0.95, can real pass CE, EMC. LVD in Europe, The driver have strictly inspection test before assembly.
2) Our production line have inspection people inspect product quality process.
Example: Light up test, power wattage test, high-Voltage test, waterproof test, ground connection test and so on.
3)12hours more aging test, inspection department will test 100% product for light up test, power wattage test and so on.Competitive Advantage:1. CE & RoHS & TUV, SAA approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3-5 years warranty and 50.000 hours lifespan
| Prod Model: |
RB-HB-515-150W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Factor(Pf): |
0.98 |
| LED Light Source: |
Bridgelux |
| Total Harmonic Distortion(Thd): |
<8% |
| Power Efficiency: |
>88% |
| Illuminance Uniformity: |
>0.6 |
| Power Line: |
H05ss-F |
| Grade: |
IP65 |
| Color Rendering Index: |
80 |
| Market: |
High-End Market |
| Color Temperature: |
Cool White |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
| Certification: |
UL |
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
