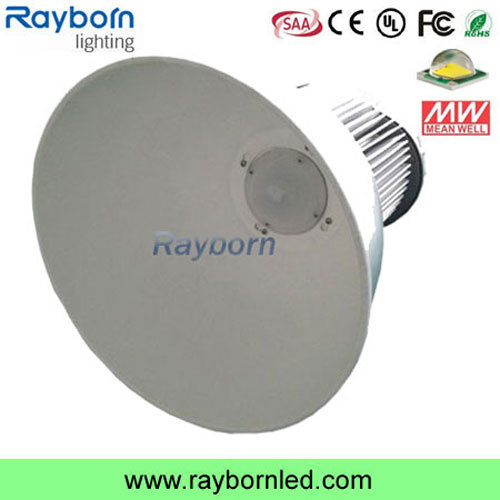

150W Cool White LED High Bay Lighting Fixtures
Item No.: RB-HB-415CR-150W
Input Voltage: AC 85~265V 50-60HZ
Power Factor: >0.98; Power Efficiency: >0.90
LED Luminous Efficiency 100-110lm/W
LED High Bay Light Power Consumption: 150W
System Power Consumption: 164W
LED Chip: Bridgelux/CREE
Lamp Beam Angle: 120/90/45 degrees
Color Index: Ra≥ 78
Color Temperature: 2700-7000K
Operating temperature: -40~50
Protection Class: IP54
Lumen: 5000LM
Useful Life: ≥ 50000 hours
Weight: N. W. 8.0KG
Lamp Body Material: Aluminum 6063
Color of Housing: Black or Silver
CREE 150W Led High bay light Features:
1. Using single powerful LED(30-250W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.
4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.
5. High color rendering, meet the requirement of different environment, improve working efficiency.
6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury
High Bay Light Competitive Advantage:
1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
High Bay Lighting Applications:
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
| 150W CREE LED HIGH BAY Light Main Technical Parameters |
| Item No.: | RB-HB-515CR-150W |
| Input Voltage: | AC 85~265V |
| Freqency Range: | 50Hz~60Hz |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 150W |
| LED Chip: | Bridgelux |
| Power Driver: | Mean Well |
| LED QTY: | COB LED |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 165W |
| LED Luminous Flux | Warm White | 14800LM |
| Pure White | 16300LM |
| Cool White | 16300LM |
| Viewing Angle: | 120degree |
| Average Illuminance | Height 6M | 245LUX |
|
| Illuminance Area | Height 6M | Dia.12 M points visible |
| Height 8M | Dia.18M points visible |
| Height 10M | Dia.24 M points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 2700K~3500K |
| Pure White | 4000K~5500K |
| Cool White | 6000K~7000K |
| Color Rendering Index | Ra>80 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤115 |
| Working Temperature: | –40~50 |
| IP Grade: | IP54 |
| Working Life-span: | 50000 H |
| Power Line: | 1.0 three line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| The color of the lamp shell | Black and silver is available |
| Certificate | CE /ROHS/UL |
| Net Weight: | 8.7KG |
Varies services can be provided to you.
1.Your inquiry related to our products or prices will be replied in 24hours.
2.OEM or ODM service is welcome.
3.Professional service from well-trained and experienced staffs is customers' best choice to secure good communication, on time delivery, reliable warranty etc.
4.For all your inquires about us or our products, we will reply you in details within 24 hours.
5.Convenient and smooth communication.
6.Detailed and professional specifications and guidances of products.
7.Your requirements and complaints are highly respected.
8.Lighting solutions by professional technician.
9.Fast &Cheap Delivery.
10.Free Light study.
11.Various Certificates.
12.Product Update.
Trade terms
1. Payment: T/T,L/C and paypal are available.
2. Lead time: Sample Order:5-7 working days. Bulk Order:10-15working days.
3.Package: 1pcs-carton;4 pcs /carton; 8 pcs /carton or as your custom package.
4. Shipping freights are quoted under your requests.
5. Shipping port: Shenzhen port
6. Discounts are offered based on order quantities.
FAQ
Q1.What is the main business of Rayborn Lighting ?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED panel light,led
tube light, led downlight and so on. Outdoor lighting focus on led floodlight, led street light,etc.
Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.
Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.
Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.
Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,UL,SAA Certification.
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
