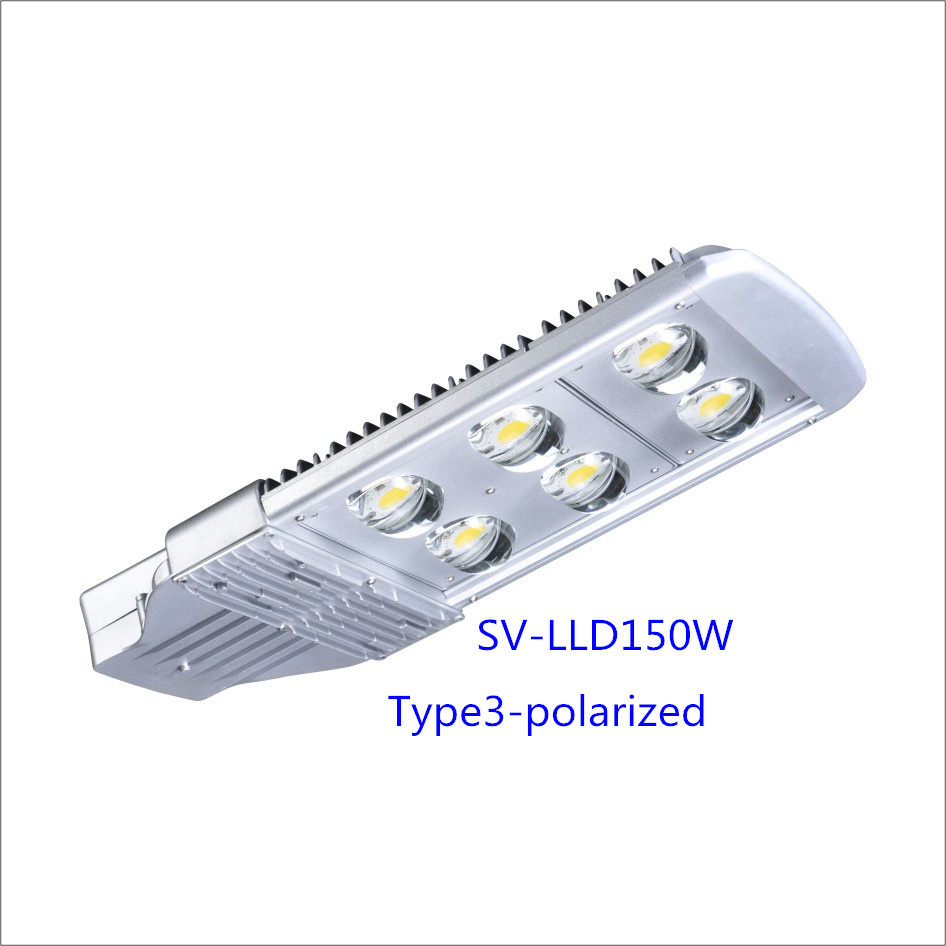

150W Bridgelux Chip High Quality LED Outdoor Light (Polarized)

Model    SV-LLD150W

Electrical Characteristics
No. of LED                6pcs. Bridgelux® Vero 18
LED Current               860mA
Input Voltage & Frequency  AC90-305V, 50-60Hz
AC Input Current           ≤1.30A @110V | ≤0.738A @220V
System Power              150W±10%
Power Factor               ≥0.9 (0.95 )
% THD                     ≤20

Photometrics & Chromaticity
Total Rated Lamp Lumens    20250lm
CCT                         5000K±300K
CRI                         ≥70
Light Distribution Pattern      Type 3,Polarized
Field Angle                  H144.7 V87.5
Lumen Maintenance          >50,000hours

Environmental Characteristics
IP Rating                   IP66
Operating Temperature     -40°C to +55°C
Operating Humidity         10-95%RH
Storage Temperature       -40°C to +70°C
Storage Humidity           10-95%RH

Mechanical Characteristics
Overall Dimensions   728mm x 346mm x 107mm
Weight              12.3 kg
Installation Accessories   +5° Inclination Adjustment Kit
10KV independent Thunder-proof component(Optional)


OPTIONS

model	120W	150W	180W	240W
LED chip	Bridgelux® Vero 18	Bridgelux® Vero 18	Bridgelux® Vero 18	Bridgelux® Vero 18
Lamp Lumens	17040lm	22200lm	25560lm	34800lm
Input Voltage & Frequency	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz
CCT	5000K±300K	5000K±300K	5000K±300K	5000K±300K
System Power	120W±10%	150W±10%	180W±10%	240W±10%
Power Factor	≥0.9 (0.95 )	≥0.9 (0.95 )	≥0.9 (0.95 )	≥0.9 (0.95 )
Operating Temperature	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C
Weight	9.3 kg	12.3 kg	12.3 kg	14.6 kg
Overall Dimensions	585mm x 346mm x 107mm	728mm x 346mm x 107mm	728mm x 346mm x 107mm	890mm x 400mm x 180mm

3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.


According with North America, Europe, Asia, China and other city outdoor light standards of professional LED lights,, suitable for different pole height, road width and different installation methods;

Several types of light lens, according with different outdoor light needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of outdoor light.

Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking


Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;

2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;

3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;

4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;

5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;

6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;

7. IP66 protection rating against dust and water performance stability, extend outdoor light life;

8. Safety and Environmental standards recognition, 5 years quality warranty;
