Home LED Light Products 150W Bridgelux Chip High Power LED Outdoor Light

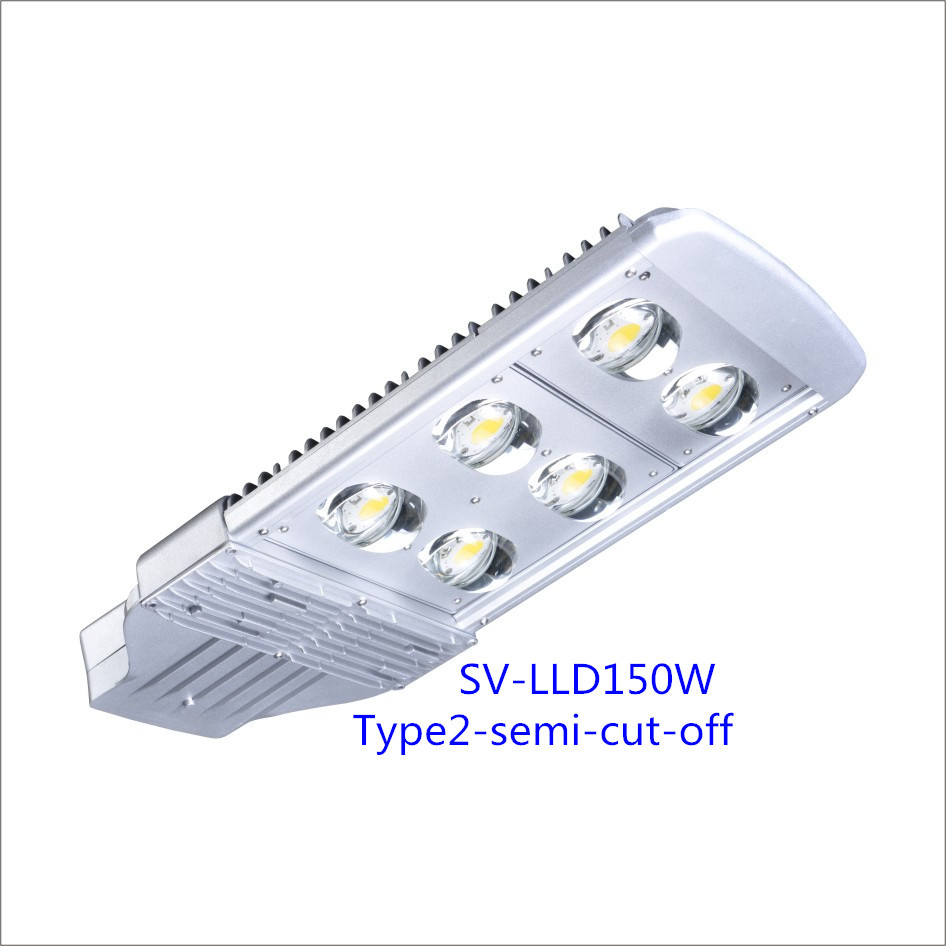

150W Bridgelux Chip High Power LED Outdoor Light

150W Bridgelux Chip High Power LED Outdoor Light
Price: US $ 1-200/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Model    SV-LLD150W
Electrical Characteristics                                                                      Photometrics & Chromaticity

No. of LED                6pcs. Bridgelux® Vero 18                                   Total Rated Lamp Lumens      20250lm
LED Current               860mA                                                               CCT          5000K±300K
Input Voltage & Frequency  AC90-305V, 50-60Hz                               CRI             ≥70
AC Input Current       ≤1.30A @110V | ≤0.723A @220V
System Power              150W±10%                                                       Field Angle       H155.3 V123.1
Power Factor               ≥0.9 (0.95 )                                                        Lumen Maintenance  >50,000hours
% THD                     ≤20

Environmental Characteristics                                                                Mechanical Characteristics

IP Rating                   IP66                                                                      Dimensions   728 x 346 x 107mm
Operating Temperature     -40°C to +55°C                                            Weight       12.3 kg
Operating Humidity         10-95%RH                                                      Installation Accessories   +5° Inclination Adjustment Kit
Storage Temperature       -40°C to +70°C                                              10KV independent Thunder-proof component
Storage Humidity           10-95%RH                            (Optional)

According with North America, Europe, Asia, China and other city roadway light standards of professional LED lights,, suitable for different pole height, road width and different installation methods;

Several types of light lens, according with different roadway light needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of light.

Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking

1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;

2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;

3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;

4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;

5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;

6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;

7. IP66 protection rating against dust and water performance stability, extend roadway light life;

8. Safety and Environmental standards recognition, 5 years quality warranty;

LED chipBridgelux® Vero 18Bridgelux® Vero 18Bridgelux® Vero 18Bridgelux® Vero 18
Lamp Lumens6120lm8520lm12240lm14500lm
Input Voltage & FrequencyAC90-305V, 50-60HzAC90-305V, 50-60HzAC90-305V, 50-60HzAC90-305V, 50-60Hz
System Power40W±10%60W±10%80W±10%100W±10%
Power Factor≥0.9 (0.95 )≥0.9 (0.95 )≥0.9 (0.95 )≥0.9 (0.95 )
Operating Temperature-40°C to +55°C-40°C to +55°C-40°C to +55°C-40°C to +55°C
Weight7.1 kg7.1 kg9.3 kg9.3 kg
Overall Dimensions462mm x 346mm x 107mm462mm x 346mm x 107mm585mm x 346mm x 107mm585mm x 346mm x 107mm

base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.

Prod Model: SV-LLD150W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Total Rated Lamp Lumens: 20250lm
Field Angle: H155.3 V123.1
Lamp Lumens: 20250lm
Size: 727*346*107mm
Power Supply: AC
Lamp Body Material: Aluminum Alloy
Application: Highway,Freeway,Expressway,Major Roadway.
IP Rating: IP66
Certification: UL
With Light Source: Without Light Source
LED Chips Brand: Bridgelux
Color Temperature: 5000k±300k
Power: 150W
Input Voltage: AC90-305V, 50-60Hz
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.

We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.

The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.

You are welcome to contact us for more information.

Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
