Specifications:

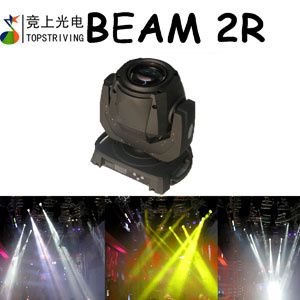

BEAM 2R --- moving head light
Powered by a high output china 2R discharge lamp
Offering flat, even spot field, even more saturation of colors
Much lighter and more compact
Ideal for applications where a small beam necessary
3-degree projecting angle
16 bit smooth and precise resolution for pan/tilt movement
X/Y auto repositioning, 0-100% linear dimmer
4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
13 Colors + White, Independent gobo and color wheels, 16 Ch. DMX Modes
14 static gobos plus open, 8-facet prism
Tilt: 270-degree, PAN: 540 -degree
Random strobe slow to fast
Stepper motors with micro stepping
Dimensions (LxWxH): 330*240*420mm
Weight: 10.85kgs
| DMX FUNCTION |
| Channel 1 | Horizontal movement (Pan) |
| Channel 2 | Pan fine 16 bit |
| Channel 3 | Vertical movement (Tilt) |
| Channel 4 | Tilt fine 16 bit |
| Channel 5 | Speed of PAN / TILT movement |
| Channel 6 | strobe |
| Channel 7 | dimmer from darkness to full brightness |
| Channel 8 | preset shows |
| Channel 9 | colors+open |
| Channel 10 | half color |
| Channel 11 | static gobos |
| Channel 12 | prism |
| Channel 13 | prism rotations |
| Channel 14 | focus |
| Channel 15 | lamp on/off, reset |
| Channel 16 | reset |
GUANGZHOU TOPSTRIVING PHOTOELECTRICITY TECHNOLOGY Co., Limited, founded in 2010, is a supplier and manufacturer of professional entertainment effect lightings with a roster of products including, but not limited to, DMX lighting controller, LED applications, effect lightings, yoke lights, lasers, stage lights, foggers, a variety of other accessories.The dedication and commitment to the customers is the foundation of TOPSTRIVING.Our experienced and devoted workers allow us to make finished products that share both the competitive pricing of mass production as well as the quality and individuality of the items.We have a big showroom which offers you the general idea of the products;A well-equipped R&D lab, covering the structuring, electronics, program-writing and optics to instruct and control the whole procedure of developing, testing and mass production of organization.In addition to our standard products we welcome the opportunity to make products to our customers' specifications and demands.We can assist you from design and engineering through production and final packaging and conclude business based on ODM.We are also pleased to offer private labeling and silk-screening prints of our standard product designs for your individual market needs and conduct business based on OEM/ODM/OBM.
