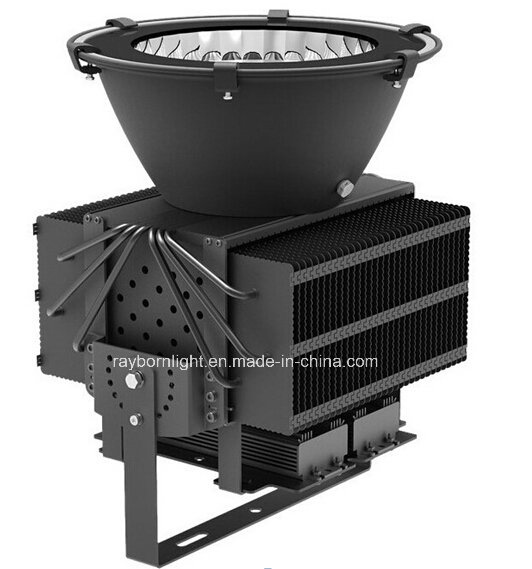

110V 220V Substitute Metal Halide Light 1500 Watts 500w LED High Bay Light
Specification Sheet:
| Item No.: | RB-HB-500WCR |
| Input Voltage: | AC 90~305V |
| Freqency Range: | 50Hz~60Hz |
| LED Chip | CREE XBD |
| Power Driver: | Mean Well Driver |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 500W |
| LED QTY: | 280PCS XBD |
| LED Working Voltage: | DC 42~48V |
| System Consumption: | 505W |
| LED Luminous Flux | Warm White | 48600LM |
| Pure White | 51000LM |
| Cool White | 51200LM |
| Viewing Angle: | 45/60/90degree |
| Centre Illuminance | Height 20M | 133lux |
| Height 30M | 59lux |
| Height 40M | 33lux |
| Illuminance Area | Height 20M | Dia.2087cm points visible |
| Height 30M | Dia.3130cm points visible |
| Height 40M | Dia.4174cm points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 2700K~3500K |
| Pure White | 4000K~5500K |
| Cool White | 6000K~7000K |
| Color Rendering Index | Ra>80 |
Quality is our culture:
1) Defective rate control around 1‰ , PF>0.95, can real pass CE, EMC. LVD in Europe, The driver have strictly inspection test before assembly.
2) Our production line have inspection people inspect product quality process.
Example: Light up test, power wattage test, high-Voltage test, waterproof test, ground connection test and so on.
3)12hours more aging test, inspection department will test 100% product for light up test, power wattage test and so on.
Competitive Advantage:
1. CE & RoHS & TUV, SAA approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3-5 years warranty and 50.000 hours lifespan
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
