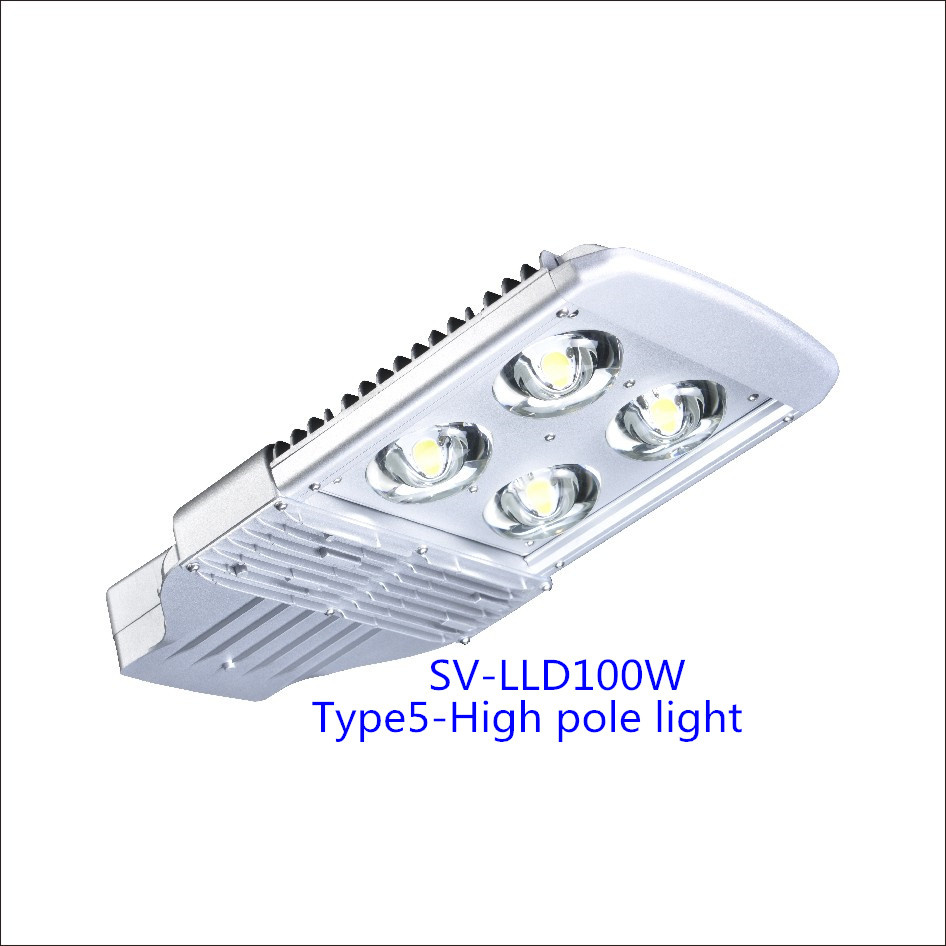

100W UL RoHS High Quality High Pole LED Roadway Light

Model SV-LLD100W

Electrical Characteristics                                                                            Photometrics & Chromaticity

No. of LED 4pcs. Bridgelux® Vero 18                                                       Total Rated Lamp Lumens 14500lm
LED Current 860mA                                                                                  CCT 5000K±300K
Input Voltage & Frequency AC90-305V, 50-60Hz                                     CRI ≥70
AC Input Current ≤1.30A @110V | ≤0.492A @220V
System Power 100W±10%                                                                        Field Angle H150.8 V149.4
Power Factor ≥0.9 (0.95 )                                                                          Lumen Maintenance >50,000hours
% THD ≤20

Environmental Characteristics                                                                   Mechanical Characteristics
IP Rating IP66                                                                                            Dimensions 585 x 346 x 107mm
Operating Temperature -40°C to +55°C                                                     Weight 9.3 kg
Operating Humidity 10-95%RH                                                                   Installation Accessories +5° Inclination Adjustment Kit
Storage Temperature -40°C to +70°C                                                         10KV independent Thunder-proof component
Storage Humidity 10-95%RH (Optional)

model	40W	60W	80W	100W
LED chip	Bridgelux® Vero 18	Bridgelux® Vero 18	Bridgelux® Vero 18	Bridgelux® Vero 18
Lamp Lumens	6120lm	8520lm	12240lm	14500lm
Input Voltage & Frequency	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz
CCT	5000K±300K	5000K±300K	5000K±300K	5000K±300K
System Power	40W±10%	60W±10%	80W±10%	100W±10%
Power Factor	≥0.9 (0.95 )	≥0.9 (0.95 )	≥0.9 (0.95 )	≥0.9 (0.95 )
Operating Temperature	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C
Weight	7.1 kg	7.1 kg	9.3 kg	9.3 kg
Overall Dimensions	462mm x 346mm x 107mm	462mm x 346mm x 107mm	585mm x 346mm x 107mm	585mm x 346mm x 107mm

According with North America, Europe, Asia, China and other city roadway light standards of professional LED lights,, suitable for different pole height, road width and different installation methods;

Several types of light lens, according with different roadway light needs,makes it suitable perfectly for any roadway light environment, energy saving, enhance the use value of light.

Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking


Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;

2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;

3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;

4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;

5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;

6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;

7. IP66 protection rating against dust and water performance stability, extend roadway light life;

8. Safety and Environmental standards recognition, 5 years quality warranty;


Base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.
