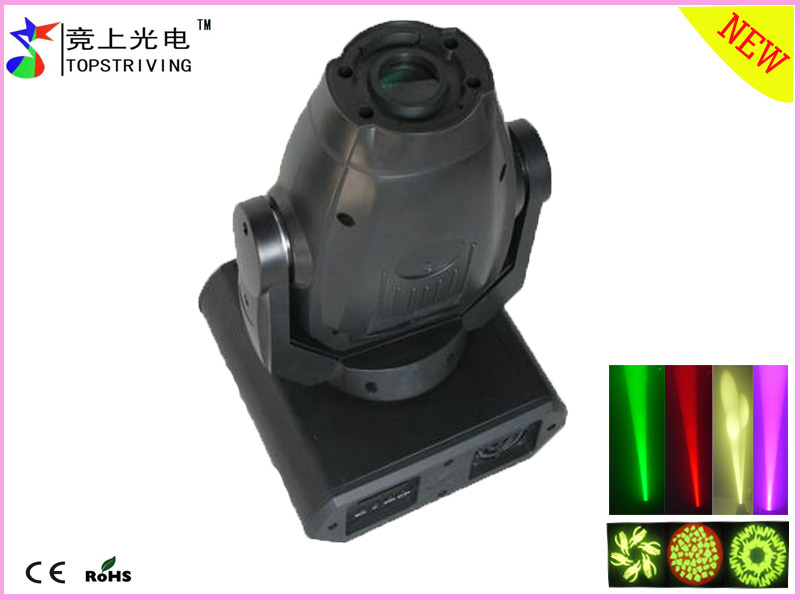

100w spot beam washer effect moving head light
1. Silent fans
2.16 DMX Channels
3. High output 100W long life white LED source
4.3-facet prism, 7 Rotating Gobos
DETAILED PARAMETERS:
1. Precise optical system to well use the LED light output over 100%;
2. Precise optical system to make gobo/color showing sharply, clearly, not any reflected light around gobos/colors; Silent fans, very small noise;
Module designs for easy assembling and warranty; Direct DMX address setting by standard DMX controller;
3. Special designed IC making cool and running long time;
4. AC 100-240V 50/60Hz
5. Powered by a high output 100W long life white LED source
(6500K, 50, 000 hr. ) with a low power draw of 200W.
6. LED Moving Head that produces a spot effect
7.4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
8. LED display, compact & light weight and offers plenty of PRO features such as:
7 Dichroic Colors + white, 7 Rotating Gobos (Interchangeable),
A Prism Wheel with 3-facet, Dimming (0-100%), Strobe effect,
9.16 DMX channels and a Gobo Scroll modeColour-system: Colour-wheel with 7 different, dichroic colour-filtres and white, Rainbow-effect in both directions
10. Gobo-wheel with 7 rotating gobos plus spot(2 glass gobos)
11. The rotating gobos can be turned by 360° , High-speed rotating 3-facet prism
12. Shutter/dimmer unit allowing very smooth dimming and strobe effect 1-30 flash per sec.
13. Remote reset function, Silent fans cooling
14. Pan-movement range 530° , Tilt-movement range 280°
15. Auto Pan/Tilt repositioning, High luminous-efficiency parabolic mirror
And double condenser system, Motorized focus controllable via DMX
16. Dimension: 400*270*280mm
17. Weight (net): 8.85kgs
DMX FUNCTIONS: 16-CHANNEL MODE
Channel 1 dimmer from 0-100%
Channel 2 strobe from slow to fast
Channel 3 - Color-wheel
Channel 4 - semi colors
Channel 5 - Horizontal movement (Pan)
Channel 6 - Vertical movement (Tilt)
Channel 7 3-facet prism
Channel 8 prism rotating
Channel 9 - rotating gobo-wheel
Channel 10- gobo rotating
Channel 11- gobo moving backword and forward
Channel 12- focus
Channel 13 pan fine 16 bit
Channel 14 tilt fine 16 bit
Channel 15 pan/tilt movement speed adjustments
Channel 16 reset
Trade Terms:
1. Payment: By T/T or western union or paypal
2. Delivery time: Sample order 4'HQ 4 weeks
3. Shipping method: DHL, OPS, FedEX, TNT door to door service, by sea, by air, etc
4. MOQ: 10 PCS, Sample order is welcome.
Our service:
1. Your inquiry related to our products or prices will be replies in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design and put into product without any charges
3. Promised After-sales Service
4. Definitely high brightness with good material inside
5. Customised LED Quantity Design
6. Full 1 year warranty
|
LED SPOT 80/LUX CHART |
DITANCE
(M) |
COLOR |
COLOR
TEMPE-
RATURE |
BRIGHTNESS
(LUX) |
BEAM
ANGLE |
DIAMETER OF THE COVERING
AREA (ROUND:M) |
|
1 |
WHITE |
6500K |
17000 |
13° |
0.28 |
|
2 |
WHITE |
6500K |
5000 |
13° |
0.52 |
|
3 |
WHITE |
6500K |
3000 |
13° |
0.67 |
|
5 |
WHITE |
6500K |
1000 |
13° |
1.05 |
