| led high bay | 100W | 150W | 200W | 250W |
| Luminous Flux | >12000lm (Typ.) | >18000lm (Typ.) | >18000lm (Typ.) | >35000lm (Typ.) |
| CCT | 5000/6400K±300K | 5000K±300K/ | 5000K±300K/ | 5000K±300K/ |
| Power Factor | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) | ≥0.9 (0.95 Typ.) |
| Input Voltage&Hz | AC90-277V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz | AC90-305V, 50-60Hz |
| Working temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |

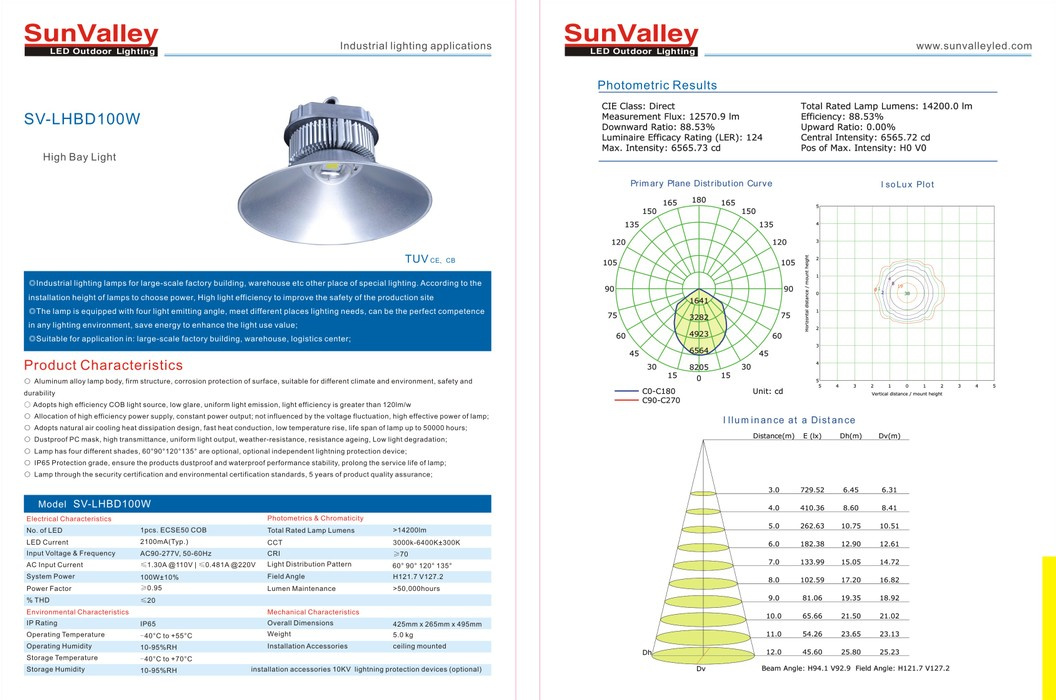

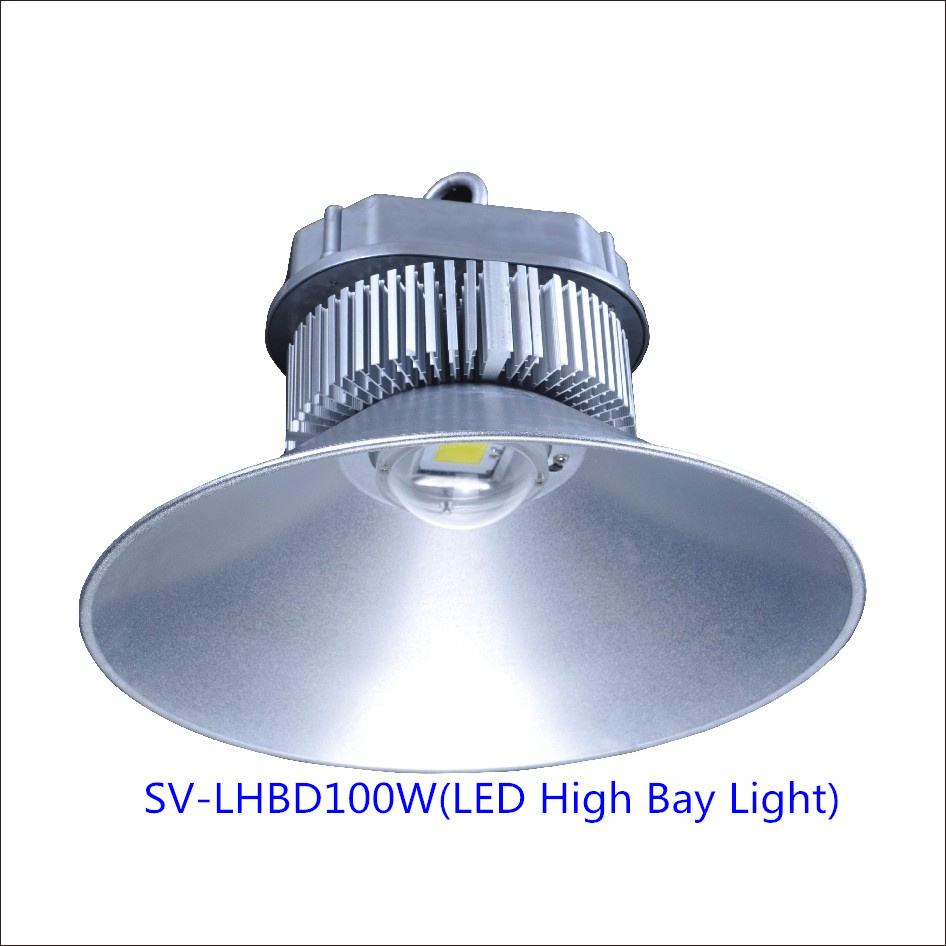

Model SV-LMD100W
Electrical characteristics Photometrics & ChromaticityLED Qty 1pcs. ECSE50 COB Luminous Flux 14200.0 lm
LED Current 2100mA CCT 5000K-6400K±300K
Input Voltage&Hz AC90-277V, 50-60Hz CRI ≥70
Input Current ≤1.30A @110V | 0.481A @220V Light distribution structure 60°90°120°135°
Power 100W±10% Field Angle H121.7 V127.2.
Power Factor ≥0.9 Lumen Maintenance >50,000hours
Total harmonic distortion(THD) ≤20
Environmental characteristics Lamp specifications
Protection grade IP65 Overall Dimensions 425mm x265mm x 495mm
Working temperature -40°C to +55°C Net weight 5.1 kg
Working humidity 10-95%RH installation mode ceiling mounted
Storage temperature -40°C to +70°C
Storage Humidity 10-95%RH installation accessories 10KV lightning protection devices (optional)
3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley representative for more information.
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.
We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.
The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.
You are welcome to contact us for more information.
Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
