DREAM SPOT
Detailed Parameters:
Crystallization of wisdom and science and embody all concepts and minds of designers. Firstly dodging and shunning the prevalent trends: The over fat profile in aesthetic sense and introduce and exercise the simplest aesthetic principle of industry civilization: Simple and economical. Looking dignified, sedate with clear cut lines and contours, and present you with first impression: Small and exquisite, passion, optimism and heroism. Secondly set of new ideas and trails are blazed in structuring, electronic and microprocessing. Compactly laid out, no more space to spare, well organized optical system making much brighter than the corresponding ones.
AC 100-120V 60Hz, AC 200-240V 50Hz
Powered by a high output 100W long life white LED source
(6500° K, 50, 000 hr. ) with a low power draw of 200W.
Brightness similar to HMI 575W/GS lamp
Φ V(lm): 7000-11000
Lm/W: 70

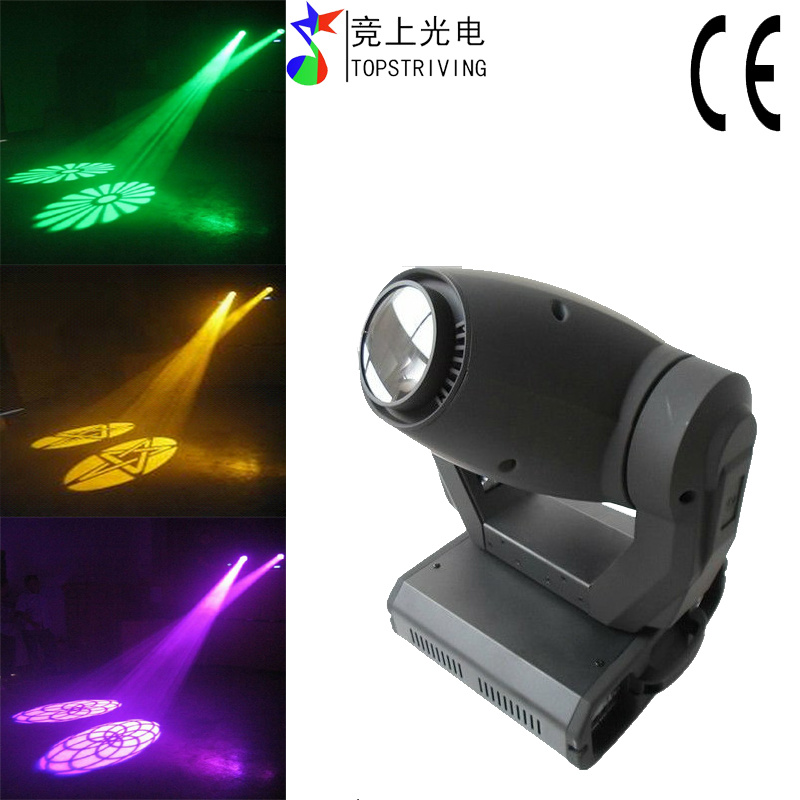

100W High Output LED Moving Head that produces a spot effect
4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
Blue LCD display
Compact & light weight and offers plenty of PRO features such as:
7 Dichroic Colors + white, 7 Rotating Gobos (Interchangeable)
A Prism Wheel with 4-facet,
Gobo Indexing,
Dimming (0-100%),
Strobe effect,
16 DMX channels and a Gobo Scroll mode.
Colour-system: Colour-wheel with 7 different, dichroic colour-filtres and white, Rainbow-effect in both directions
Gobo-wheel 1 with 7 static metal-gobos and open
Gobo-wheel 2 with 7 rotating gobos plus spot(3 glass gobos)
The rotating gobos can be turned by 360° , the adjusted position is memorized
High-speed rotating 4-facet prism
Shutter/dimmer unit allowing very smooth dimming and strobe effect 1-10 flash per sec.
Blue LCD display, receiving DMX values
Remote reset function
Silent fans cooling
16 DMX-channels each DMX channel function can be achieved by LCD display setting
Pan-movement range 530° , Tilt-movement range 280°
Auto Pan/Tilt repositioning, High luminous-efficiency parabolic mirror
And double condenser system
Motorized focus controllable via DMX
Steplessly adjustable iris, all lenses are anti-reflection coated
Dimension: 420*410*490mm
Weight (net): 18.0 kg
TECHNICAL SPECIFICATIONS:
Power supply: 90-240 V AC, 50/60 Hz ~
Power consumption: 250W
DMX-512-connection: 3-pin XLR
Flash-rate: 10 Hz
Dimension: 420X410X490mm
Weight (net): 18.0 kg
Maximum ambient temperature ta: 45° C
|
Function of the control channels |
|
Channel 1 |
Horizontal movement (Pan) |
|
Channel 2 |
Pan fine 16 bit |
|
Channel 3 |
Vertical movement (Tilt) |
|
Channel 4 |
Tilt fine 16 bit |
|
Channel 5 |
Speed of PAN / TILT movement |
|
Channel 6 |
static gobo-wheel |
|
Channel 7 |
Colour-wheel |
|
Channel 8 |
dimmer |
|
Channel 9 |
shutter and strobe |
|
Channel 10 |
rotating gobo-wheel |
|
Channel 11 |
Gobo rotation |
|
Channel 12 |
four-facet prism+ prism rotation |
|
Channel 13 |
focusing |
|
Channel 14 |
iris |
|
Channel 15 |
gobo indexing |
|
Channel 16 |
reset,blackout |
