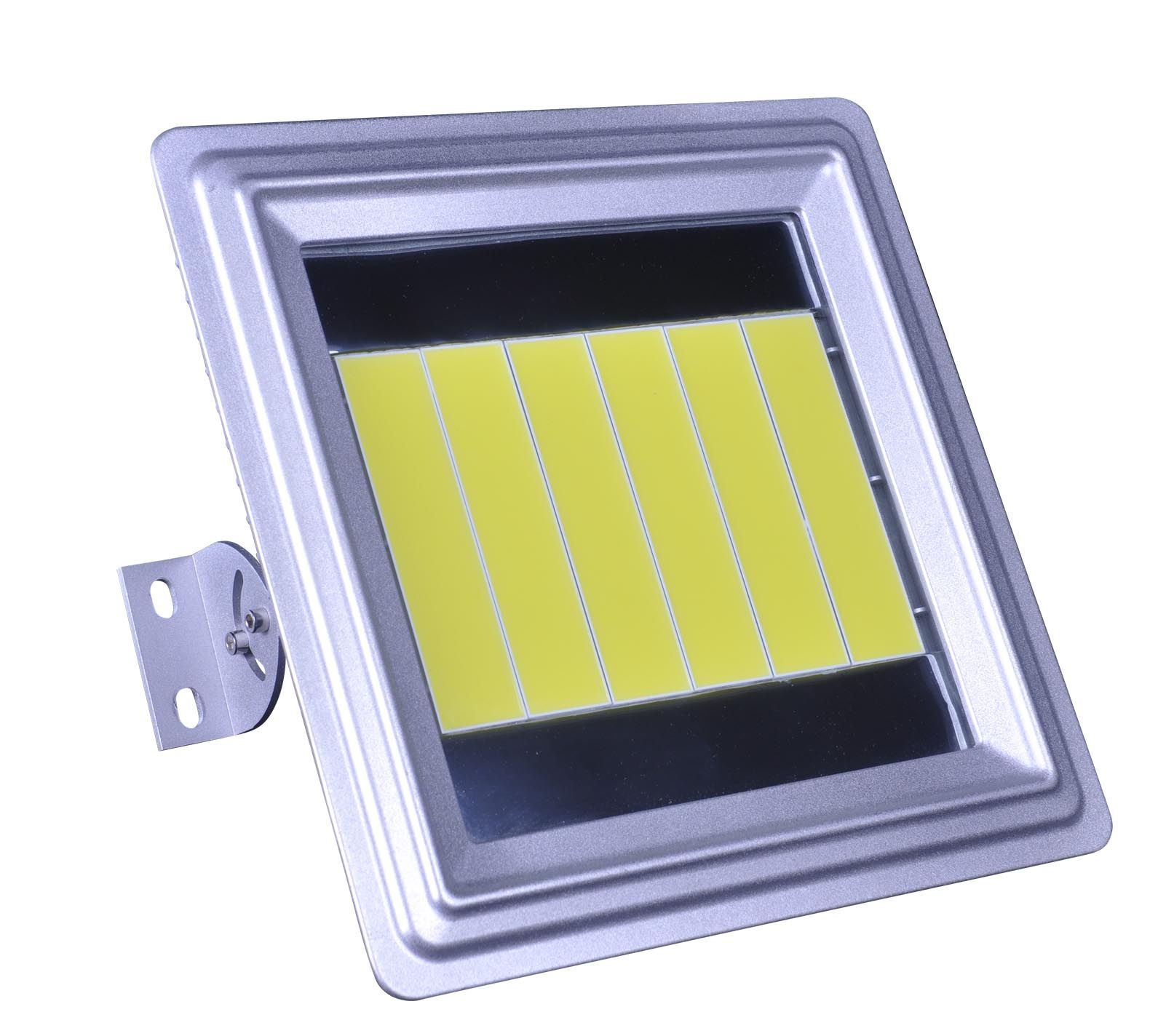

100W IP65 LED Outdoor Tunnel Light with 5-Year-Warranty
| Price: |
US $ 125-140/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Model SV-LFD100W
Electrical characteristics Photometrics & Chromaticity
LED Qty 9pcs. ARE150 COB Luminous Flux >12000lm (Typ.)
LED Current 1670mA(Typ.) CCT 5000K-6400K±300K
Input Voltage&Hz AC90-277V, 50-60Hz CRI ≥70
Input Current ≤1.30A @110V | ≤0.60A @220V Light distribution structure 120°
Power 100W±10% Beam Angle 120 deg. (Typ.)
Power Factor ≥0.9 (0.95 Typ.) Lumen Maintenance >50,000hours3
Total harmonic distortion(THD) ≤20
Environmental characteristics Lamp specifications
Protection grade IP65 Overall Dimensions 33.8X33.8X13.3cm
Working temperature -40°C to +55°C Net weight 5.8kg
Working humidity 10-95%RH I nstallation mode: ceiling mounted
Storage temperature -40°C to +70°C
Storage Humidity 10-95%RH installation accessories 10KV Independent SPD (optional)
OPTIONS| tunnel light | 70W | 100W | 120W |
| LED Qty | 7pcs. ARE150 COB | 9pcs. ARE150 COB | 12pcs. ARE150 COB |
| LED Current | 1670mA | 1670mA | 2500mA |
| Luminous Flux | 8750.0lm | 11250.0lm | 15000.0lm |
| CCT | 5000K-6400K±300K/ | 5000K-6400K±300K/ | 5000K-6400K±300K/ |
| Input Current | ≤1.30A @110V | 0.366A @220V | ≤1.30A @110V | 0.476A @220V | ≤1.30A @110V | 0.60A @220V |
| Input Voltage&Hz | AC90-277V, 50-60Hz | AC90-277V, 50-60Hz | AC90-277V, 50-60Hz |
| Net weight | 8.5kg | 8.7kg | 10.3kg |
| Overall Dimensions | 444x290x115mm | 444x290x115mm | 556x290x115mm |
LED tunnel light can meet the requirement of different tunnel, underground passage, gas station and other different fields. According to the installation height of lamps to choose power, High light efficiency to improve the safety of the production site
Using COB plane light source,daintily and useful, low glare, meet different places lighting needs, can be the perfect competence in any lighting environment, save energy to enhance the LED tunnel light use value;
Suitable for application in: tunnel, underground passage, gas station, petroleum and chemical industry;
Product Characteristics:
1. Die casting aluminum alloy structure of lamp, firm structure, corrosion protection of surface, suitable for different climate and environment, safety and durability;
2. Adopts high efficiency COB light source, low glare, uniform light emission, light efficiency is greater than 120lm/w;
3. Allocation of high efficiency power supply, constant power output; not influenced by the voltage fluctuation, high effective power of led outdoor Ex-proof light;
4. Adopts natural air cooling heat dissipation design, fast heat conduction, low temperature rise, life span of lamp up to 50000 hours;
5. Tempered glass surface cover, High transmittance, uniform light output, weather-resistance, resistance ageing, Low light degradation;
6. Equipped with two different types of mounting bracket, fixed stainless steel fittings, optional independent lightning protection device;
7. IP65 Protection grade, ensure the products dustproof and waterproof performance stability, prolong the service life of led tunnel light;
8. Through the China national explosion proof testing center certification and environmental certification standards, 5 years of product quality assurance;

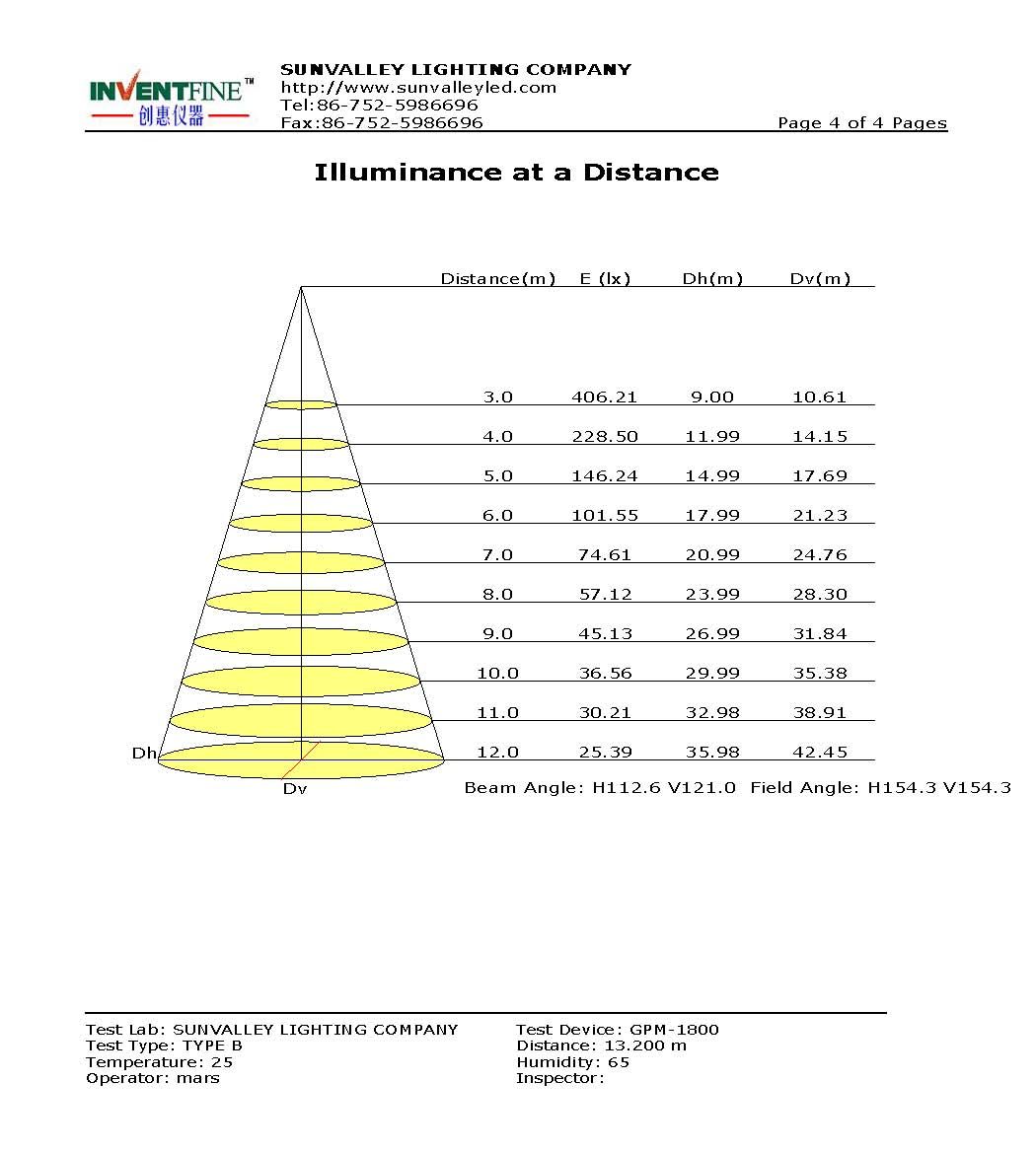

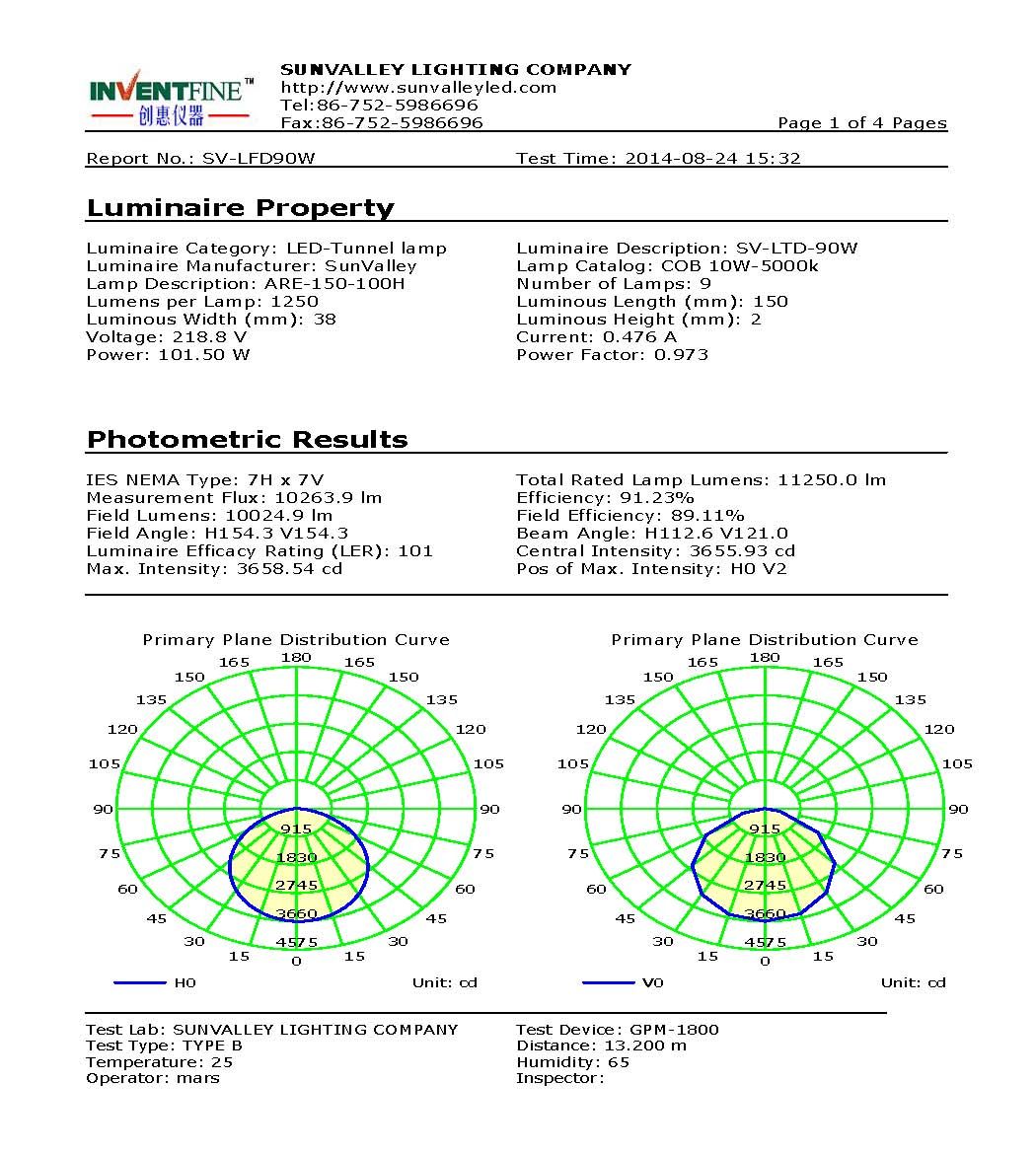

Test Report:

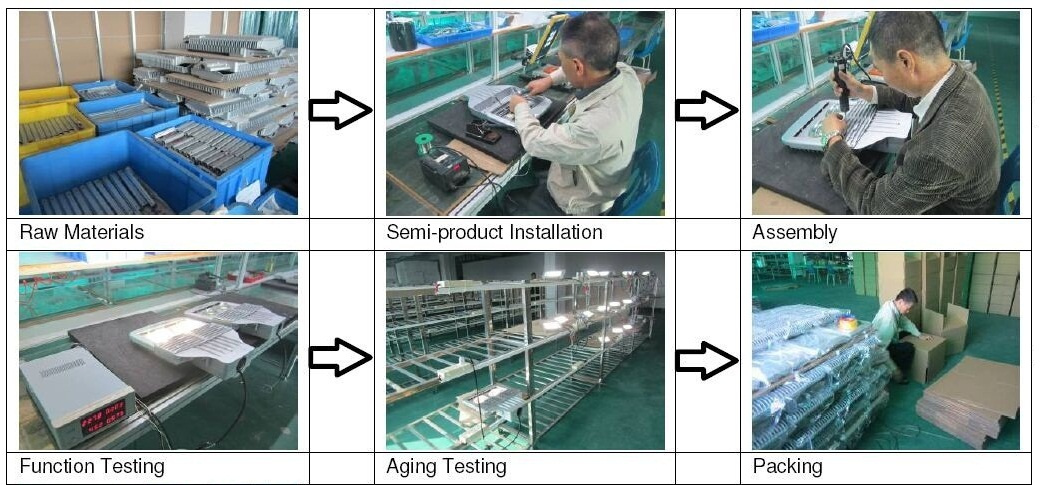

Work Flow:
| Prod Model: |
SV-LFD100W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Luminous Flux: |
>12000lm |
| LED Qty: |
9PCS. Are150 COB |
| LED Current: |
1670mA |
| CRI: |
>70 |
| Power Factor: |
0.95 |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
| Lifespan: |
>50000 hours |
| Warranty: |
5 Years |
| Certification: |
UL |
| With Light Source: |
Without Light Source |
| Color Temperature: |
3000k~6700k |
| Beam Angle: |
120 |
| Housing Color: |
Silver |
| Voltage: |
AC90-264V |
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.
We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.
The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.
You are welcome to contact us for more information.
Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
