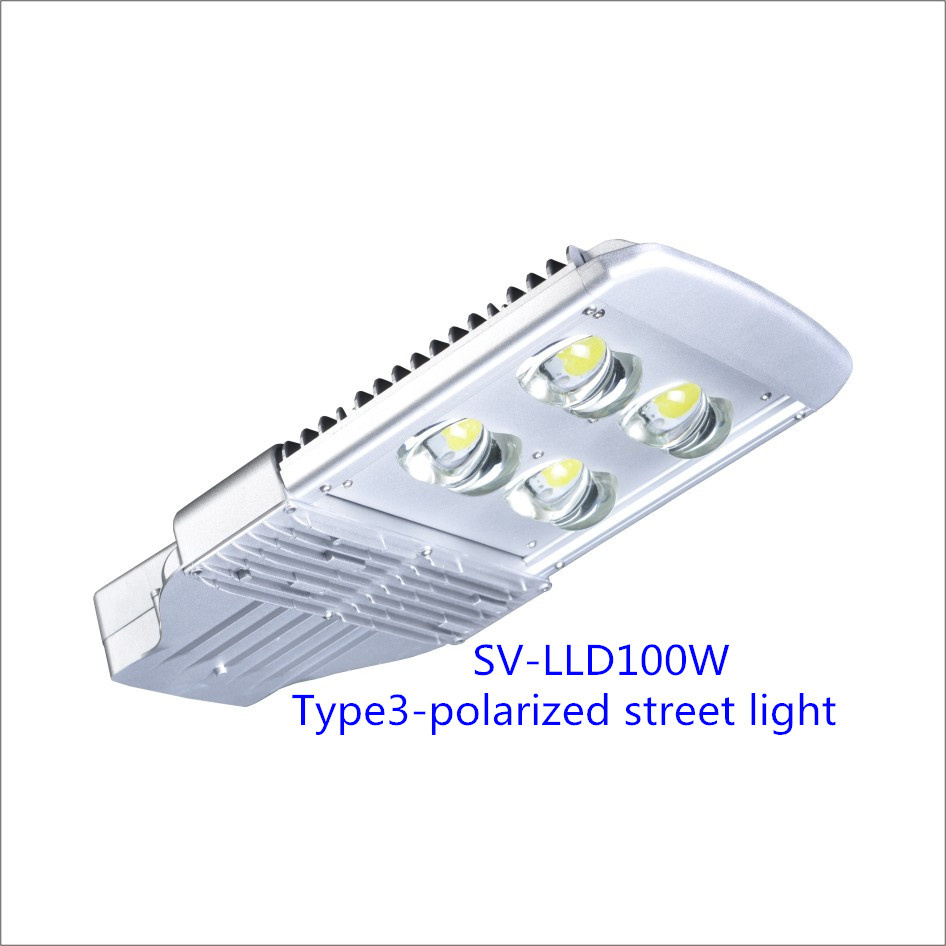

100W Bridgelux Chip High Quality LED Street Luminaire (High Pole)

Model    SV-LLD100W

Electrical Characteristics                                                                    Photometrics & Chromaticity
No. of LED                4pcs. Bridgelux® Vero 18                                 Total Rated Lamp Lumens   14500lm
LED Current               860mA                                                             CCT      5000K±300K
Input Voltage & Frequency  AC90-305V, 50-60Hz                             CRI           ≥70
AC Input Current           ≤1.30A @110V | ≤0.492A @220V
System Power              100W±10%                                                    Field Angle       H150.8 V149.4
Power Factor               ≥0.9 (0.95 )                                                     Lumen Maintenance     >50,000hours
% THD                     ≤20

Environmental Characteristics                                                           Mechanical Characteristics
IP Rating                   IP66                                                                 Overall Dimensions   585 x 346 x 107mm
Operating Temperature     -40°C to +55°C                                       Weight              9.3 kg
Operating Humidity         10-95%RH                                                 Installation Accessories   +5° Inclination Adjustment Kit
Storage Temperature       -40°C to +70°C                                        10KV independent Thunder-proof component
Storage Humidity           10-95%RH                          (Optional)


OPTIONS

model	40W	60W	80W	100W
LED chip	Bridgelux® Vero 18	Bridgelux® Vero 18	Bridgelux® Vero 18	Bridgelux® Vero 18
Lamp Lumens	6120lm	8520lm	12240lm	14500lm
Input Voltage & Frequency	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz	AC90-305V, 50-60Hz
CCT	5000K±300K	5000K±300K	5000K±300K	5000K±300K
System Power	40W±10%	60W±10%	80W±10%	100W±10%
Power Factor	≥0.9 (0.95 )	≥0.9 (0.95 )	≥0.9 (0.95 )	≥0.9 (0.95 )
Operating Temperature	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C
Weight	7.1 kg	7.1 kg	9.3 kg	9.3 kg
Overall Dimensions	462mm x 346mm x 107mm	462mm x 346mm x 107mm	585mm x 346mm x 107mm	585mm x 346mm x 107mm

3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.


According with North America, Europe, Asia, China and other city street light luminaire standards of professional LED lights,, suitable for different pole height, road width and different installation methods;

Several types of light lens, according with different street luminaire needs, makes it suitable perfectly for any street ligh luminaire environment, energy saving, enhance the use value of street light luminaire.

Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking


Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;

2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;

3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;

4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;

5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;

6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;

7. IP66 protection rating against dust and water performance stability, extend street light luminaire life;

8. Safety and Environmental standards recognition, 5 years quality warranty;
