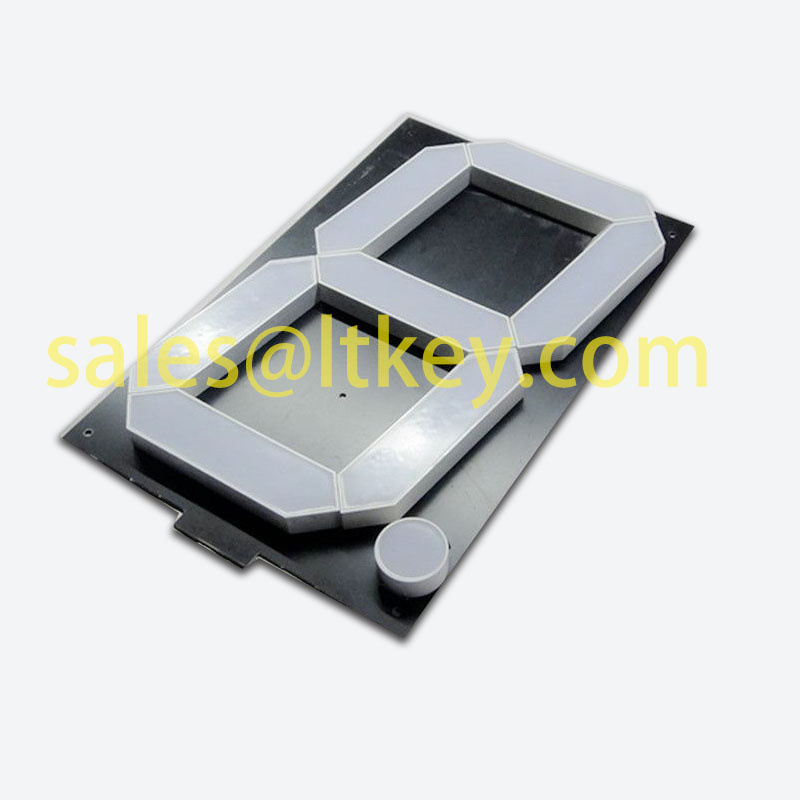

10 Inch Assembly 7 Segment LED Display
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Features
Ø 250mm (10 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
Selection Guide (Ta = 25 °C )

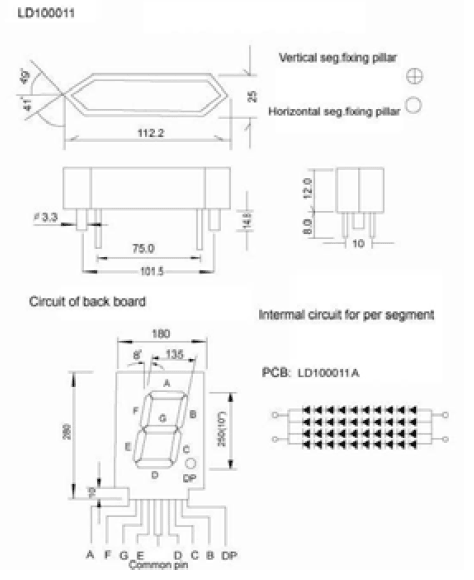

| Single Digit 7 Segment LED Display, Digit Height: 250.00mm(10.00inch), External Dimensions: 180.00x280.00.00mm (LxWmm) |
| Part No. | Chip | Iv@IF=20mA |
| Common Cathode | Common Anode | Material | Color | WLD | One Seg |
| Min. | Typ. |
| LD100011AR | LD100011BR | GaAlAs | Super Red | 640 | 240 | 300 |
| LD100011AD | LD100011BD | GaAlAs | Hi-Red | 640 | 540 | 750 |
| LD100011AO | LD100011BO | GaAsP | Orange | 625 | 210 | 270 |
| LD100011AY | LD100011BY | GaAsP | Yellow | 588 | 240 | 300 |
| LD100011AG | LD100011BG | GaP | Green | 568 | 210 | 270 |
| LD100011AUR | LD100011BUR | AlGaInP | Ultra Red | 640 | 900 | 1350 |
| LD100011AUO | LD100011BUO | AlGaInP | Ultra Orange | 625 | 1350 | 1800 |
| LD100011AUA | LD100011BUA | AlGaInP | Ultra Amber | 605 | 900 | 1350 |
| LD100011AUY | LD100011BUY | AlGaInP | Ultra Yellow | 595 | 900 | 1350 |
| LD100011AUG | LD100011BUG | AlGaInP | Ultra Green | 573 | 900 | 1350 |
| LD100011APG | LD100011BPG | InGaN | Pure Green | 525 | 3600 | 9000 |
| LD100011AUB | LD100011BUB | InGaN | Ultra Blue | 470 | 900 | 1350 |
| LD100011AUW | LD100011BUW | SMD | Ultra White | \ | 3000 | 3600 |
| Unit: | \ | \ | \ | nm | mcd | mcd |
How to produce these item?
Factory viewing:
| Prod Model: |
LD100011A/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Outline Dimensions: |
280X180mm |
| Digit Height: |
10 Inch(250mm) |
| Emitting Color: |
Single Color |
| Dp Number: |
1PC |
| Digit Number: |
1 Digit |
| Chip Matrial: |
4-Element |
| Tube Chip Color: |
Single Color |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Meters and Instruments |
| Certification: |
Reach |
| Display Function: |
Numbers and Some Alphabets |
