North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Life:
50, 000h
Power Source:
AC
Electric Current Type:
DC
Base Material:
Aluminum+Copper+Glass
Input Voltage:
100-277V/AC
Warranty:
5 Years
Chip:
CREE Xte/Samsung Lh351b
Driver:
Meanwell Hlg
IP:
65
Angle:
25/60/90deg
Color Temperature:
Cool White
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
UL
Beam Angle:
25/60/90
Product Description

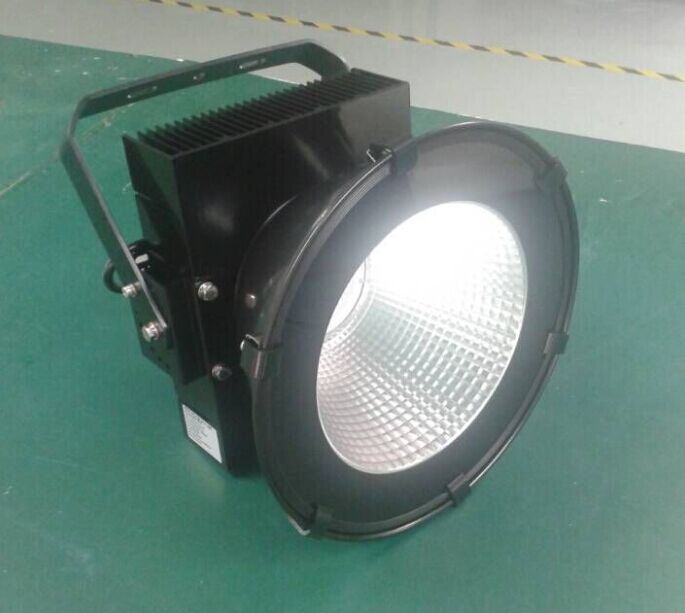

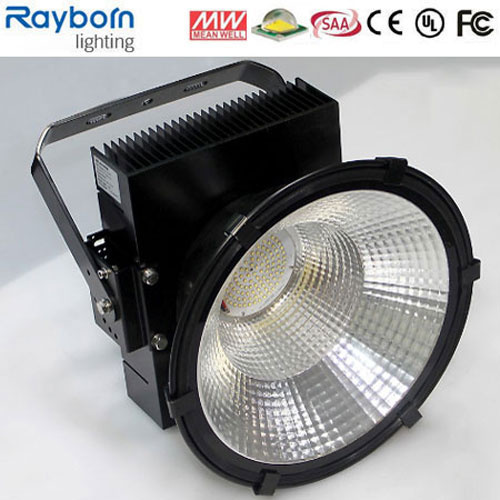

Waterproof 100W 150W 200W 250W 300W Industrial LED High Bay Light With IP65
150W LED Industrial Light Main Technical Parameters
Item No.:
RB-HB-150WB
Input Voltage:
AC 100~277V
Freqency Range:
50Hz~60Hz
Led Chip:
CREE/SAMSUNG
Power Factor:
>0.98
Power Efficiency:
>95%
LED Power
150W
LED QTY:
105PCS CREE XTE
LED Working Voltage:
DC 42~48V
System Consumption:
205W
LED Luminous Flux
Warm White
15000LM
Pure White
16000LM
Cool White
16500LM
Viewing Angle:
25/60/90egree/
Center Illuminance
Height 10M
205LUX
Height 20M
51LUX
Height 30M
23LUX
Illuminance Area
Height 10M
Dia.1178CM points visible
Height 20M
Dia.2356CM points visible
Height 30M
Dia.3535CM points visible
Illuminance Uniformity:
>0.6
Color Temperature
Warm White
3000K~3500K
Pure White
5300K~5700K
Cool White
6000K~6500K
Color Rendering Index
Ra>80
Light Distribution:
LED points visible
Light Design:
LED+
LED Junction Temperature:
≤115
Working Temperature:
-30~55
IP Grade:
IP65
Working Life-span:
50000 H
Power Line:
1.0 mthree line
Connect Wire
Brown
L
Blue
N
Yellow / Green
G
The color of the lamp shell
Black and silver is available
Certificate
CE /Rohs/SAA/ UL
Net Weight:
10.5kg

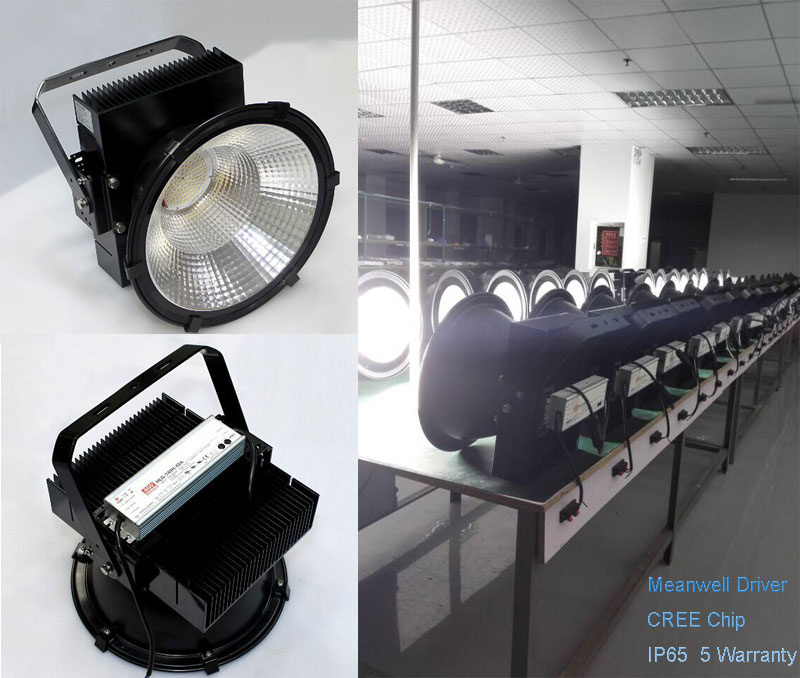

Led High Bay Light Features:
1.Flexible positions can be adjusted within 180°. 2.Adopt copper heatpipe can conduct heat rapidly from the chips to radiator,greatly lower down the temperature of light source,extending life span. 3.Full series led high bay light use Taiwan MeanWell driver,Cree,Samsung led chip is available. 4.Waterproof IP65 design,elimination mist,avoid condensation,widely use for indoor and outdoor. 5.Reflector 25° 60° 90° beam angle is available,meet the requirements of professional light distribution and can be use at different place.
LED High Bay Light Applications:
LED High Bay Lights widely used for Indoor and outdoor places: Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
Rayborn Company Information: As a big led manufacturer with years of experiences,we Rayborn led lghting would very like to be your reliable lighting specialist. We ensure that: 1.Offering you the competitive price with good quality led lights. 2.Delivery the goods to you with speed and precision wherever you are. 3.Reply your inquiry and request in 8 hours during workdays. 4.Keep on researching and developing news prodcuts to satisfy your various needs.
Trade Terms: 1. Payment: T/T, L/C at sight, Paypal available 2. Samples can be available within 5-7 working days; Order: 10-20Days 3. Shipping freight is quoted under your requests 4. Shipping port:Shenzhen , China 5. Discouts are offered based on order quantities
Rayborn services: 1. Your inquiry related to our products or prices will be replied in 24hours. 2. OEM & ODM are welcomed, OEM brand is available. 3. Any defective products within warranty will get maintenance or replacement unconditionally. 4. Protect your sales area
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
