North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Life:
50, 000h
Power Source:
AC
Electric Current Type:
DC
Emitting Color:
3000k/4500k/5500k/6000k
Base Material:
Aluminum
Input Voltage:
90-277V/AC
Chip:
Bridgelux/CREE/Samsung
Angel:
45/90/120
Color Temperature:
Cool White
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
VDE
Usage:
Warehouse, Room, Factory/Workshop
Product Description

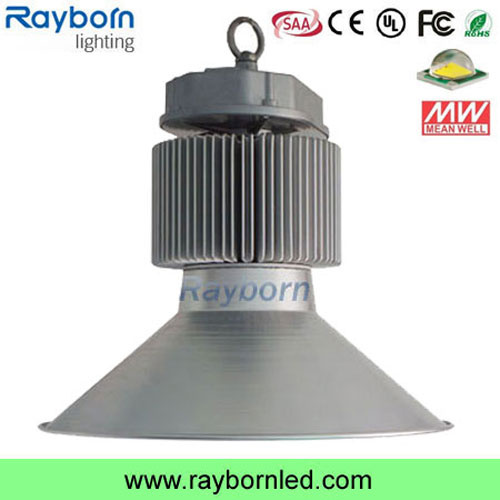

LED High Bay Light 30W-500W With Meanwell Driver CREE Chip/Bridgelux Chip/Samsung Chip(Industrial LED Lighting)
Item No.: RB-HB-465-150W Input Voltage: AC 90~277V 50-60HZ Power Factor: >0.98; Power Efficiency: >0.93 LED Luminous Efficiency 120-130lm/W LED High Bay Light Power Consumption: 150W System Power Consumption: 156W LED Chip: Bridgelux/CREE/LG Chip Lamp Beam Angle: 120/90/45 30 degrees Color Index: Ra≥ 80 Color Temperature: 2700-7000K Operating temperature: -40~55 Protection Class: IP54/65 LED Lumen: 16500LM Useful Life: ≥ 50000 hours Weight: N. W. 8.0KG Lamp Body Material: Aluminum 6063 Color of Housing: Black or Silver
Bridgeluxe/LG/CREE Chip 150W Led High bay light Features:
1. Using single powerful LED(30W-500W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.
4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.
5. High color rendering, meet the requirement of different environment, improve working efficiency.
6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury
1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan

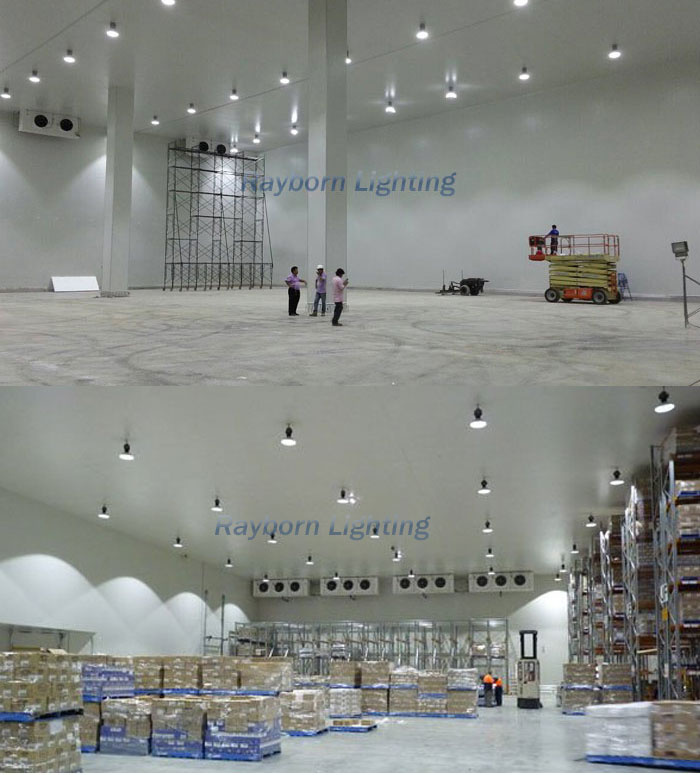

LED High Bay Light Applications:
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
150W CREE LED HIGH BAY Light Main Technical Parameters
Item No.:
RB-HB-465-150W
Input Voltage:
AC 90~277V
Freqency Range:
50Hz~60Hz
Power Factor:
>0.98
Power Efficiency:
>91%
LED Power
150W
LED Chip:
CREE/Samsung
Power Driver:
MeanWell
LED QTY:
100PCS CREE XTE
LED Working Voltage:
DC 42~48V
System Consumption:
155W
LED Luminous Flux
Warm White
15200LM
Pure White
16300LM
Cool White
16500LM
Viewing Angle:
120degree
Average Illuminance
Height 6M
245LUX
Illuminance Area
Height 6M
Dia.12 M points visible
Height 8M
Dia.18M points visible
Height 10M
Dia.24 M points visible
Illuminance Uniformity:
>0.6
Color Temperature
Warm White
2700K~3500K
Pure White
4000K~5500K
Cool White
6000K~7000K
Color Rendering Index
Ra>80
Light Distribution:
LED points visible
LED Junction Temperature:
≤115
Working Temperature:
–35~55
IP Grade:
IP65
Working Life-span:
50000 H
Power Line:
1.0 three line
Connect Wire
Brown
L
Blue
N
Yellow / Green
G
The color of the lamp shell
Black and silver is available
Certificate
CE /ROHS/UL/SAA
Net Weight:
8.7KG

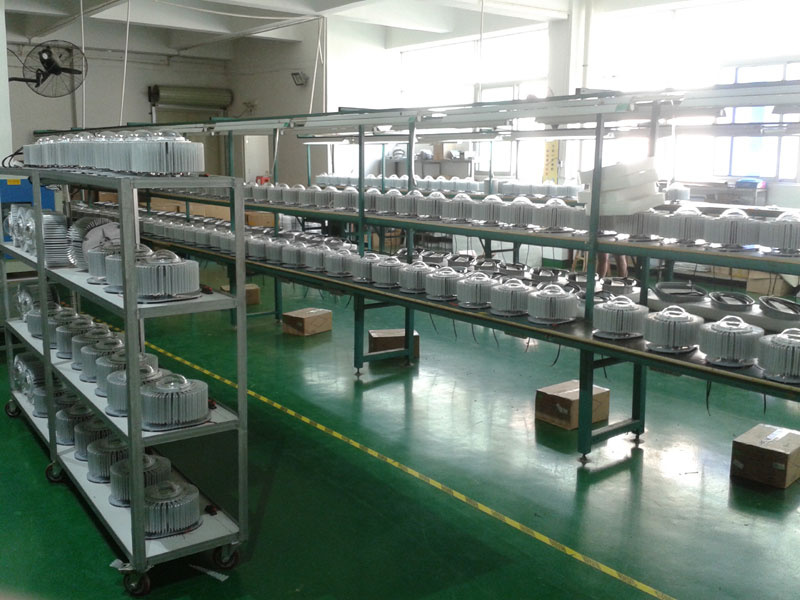

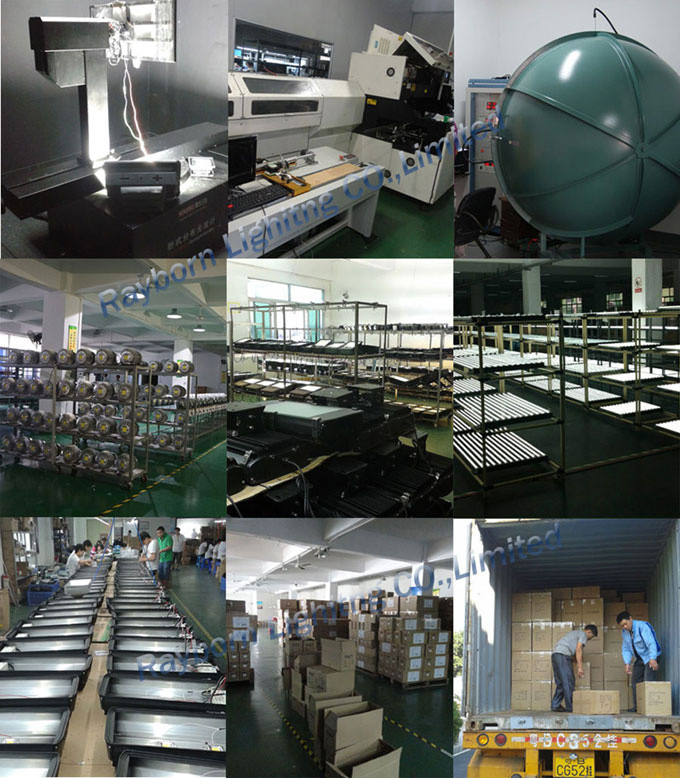

Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
